Climate Control Assembly

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the instrument panel center finish panel.

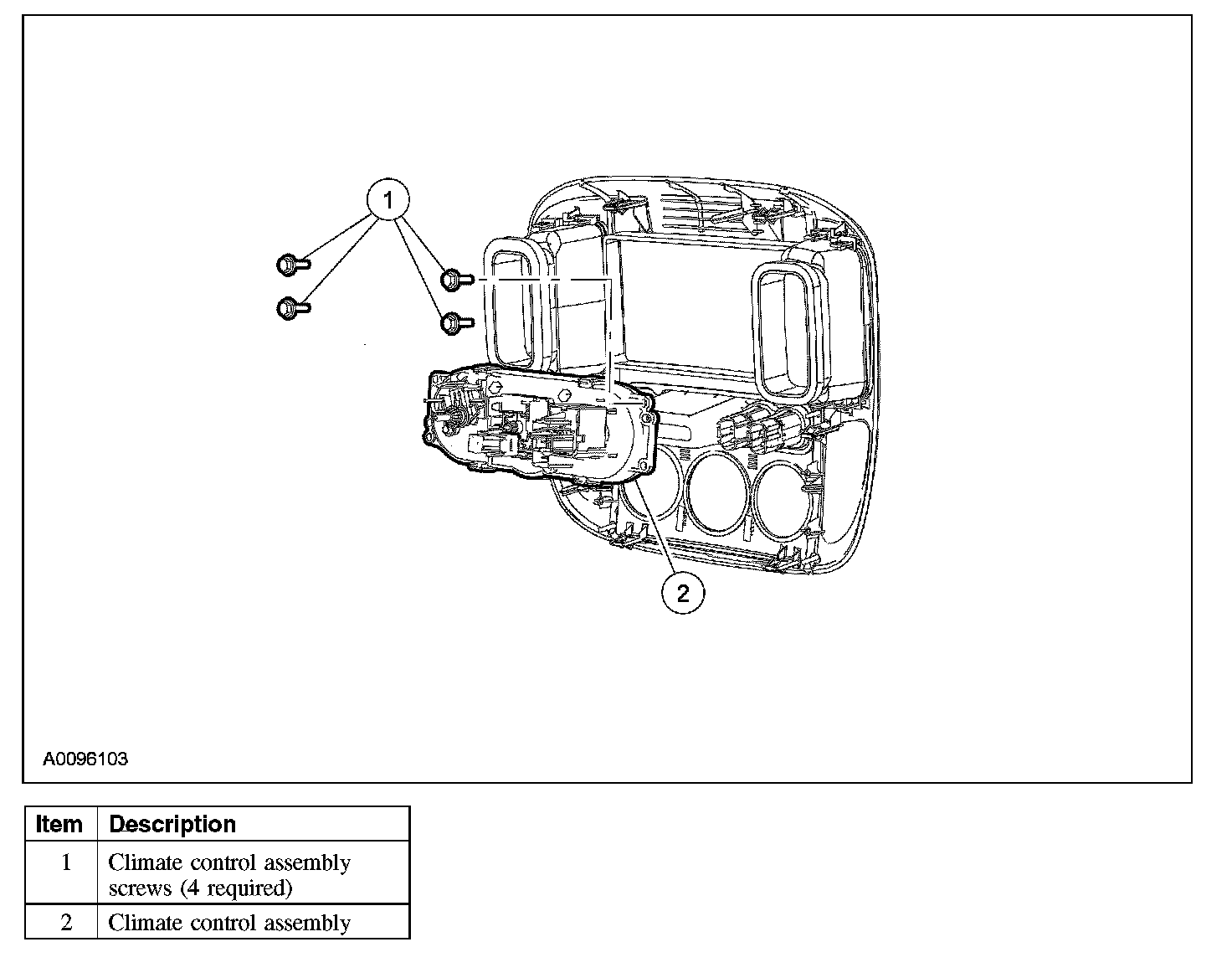

2. Remove the 4 screws and the climate control assembly.
3. To install, reverse the removal procedure.
