Home >> Mercury >> 2007 >> Mariner 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

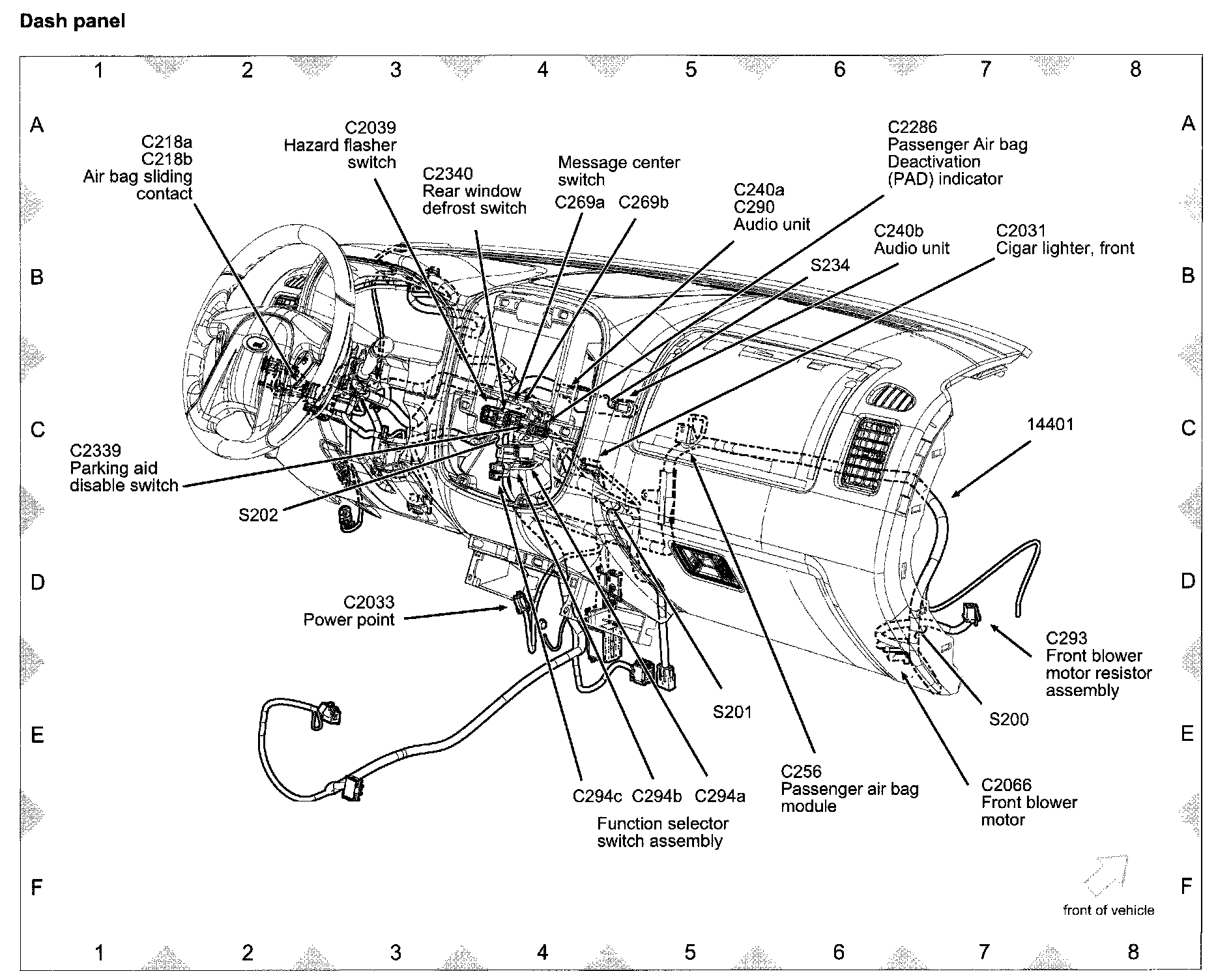

View 151-12 (Dash Panel):
