Home >> Mercury >> 2007 >> Mariner 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window/Door Lock/Unlock Switch

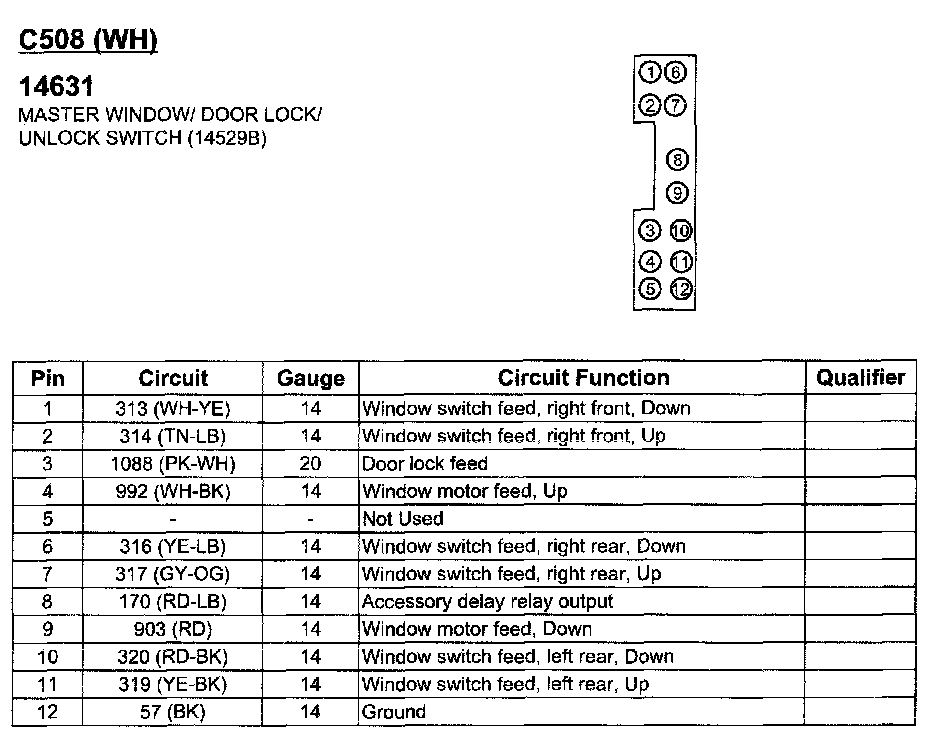

Master Window/Door Lock/Unlock Switch

C508:
