Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Main Control Valve Body

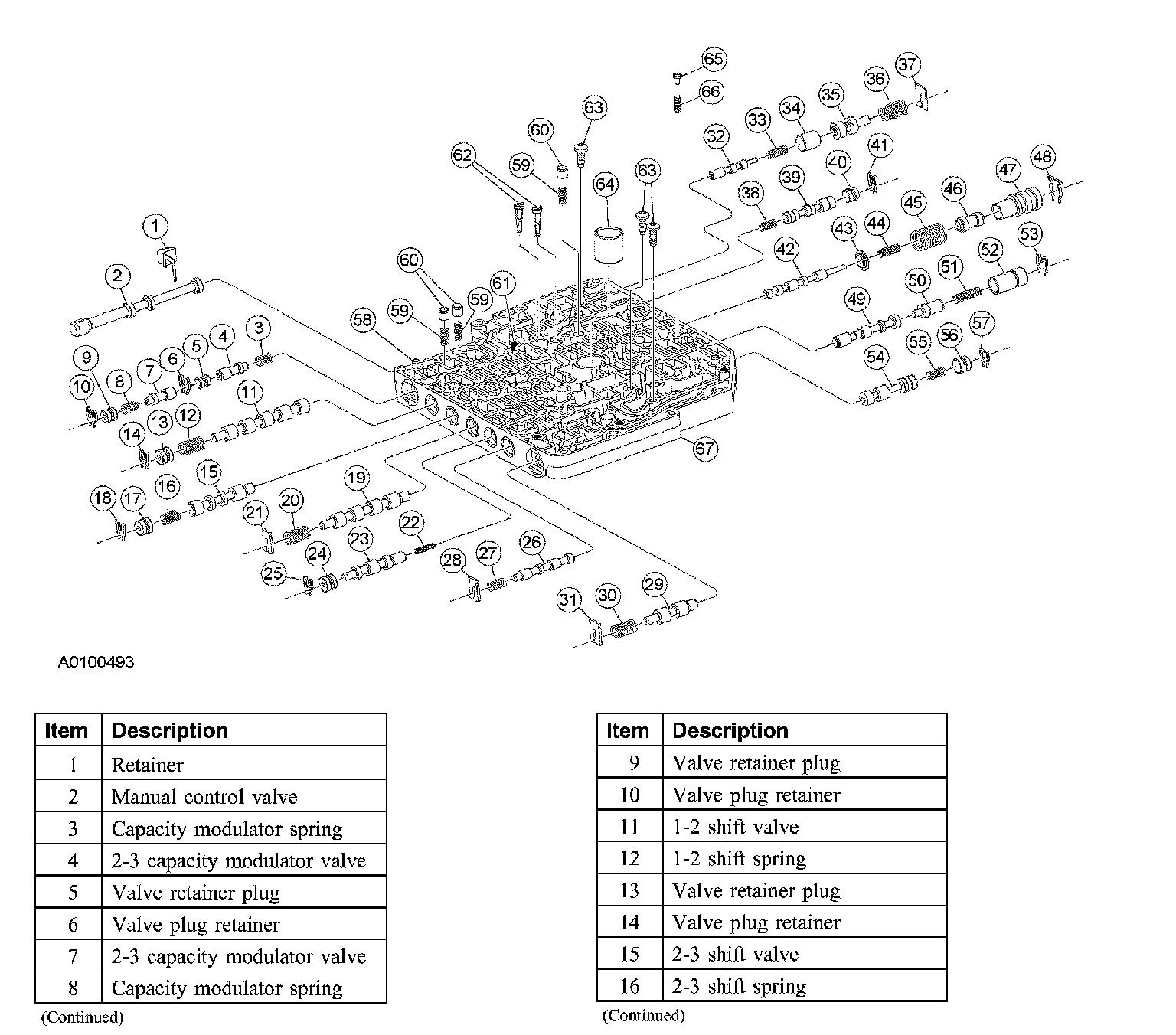

Main Control Valve Body:

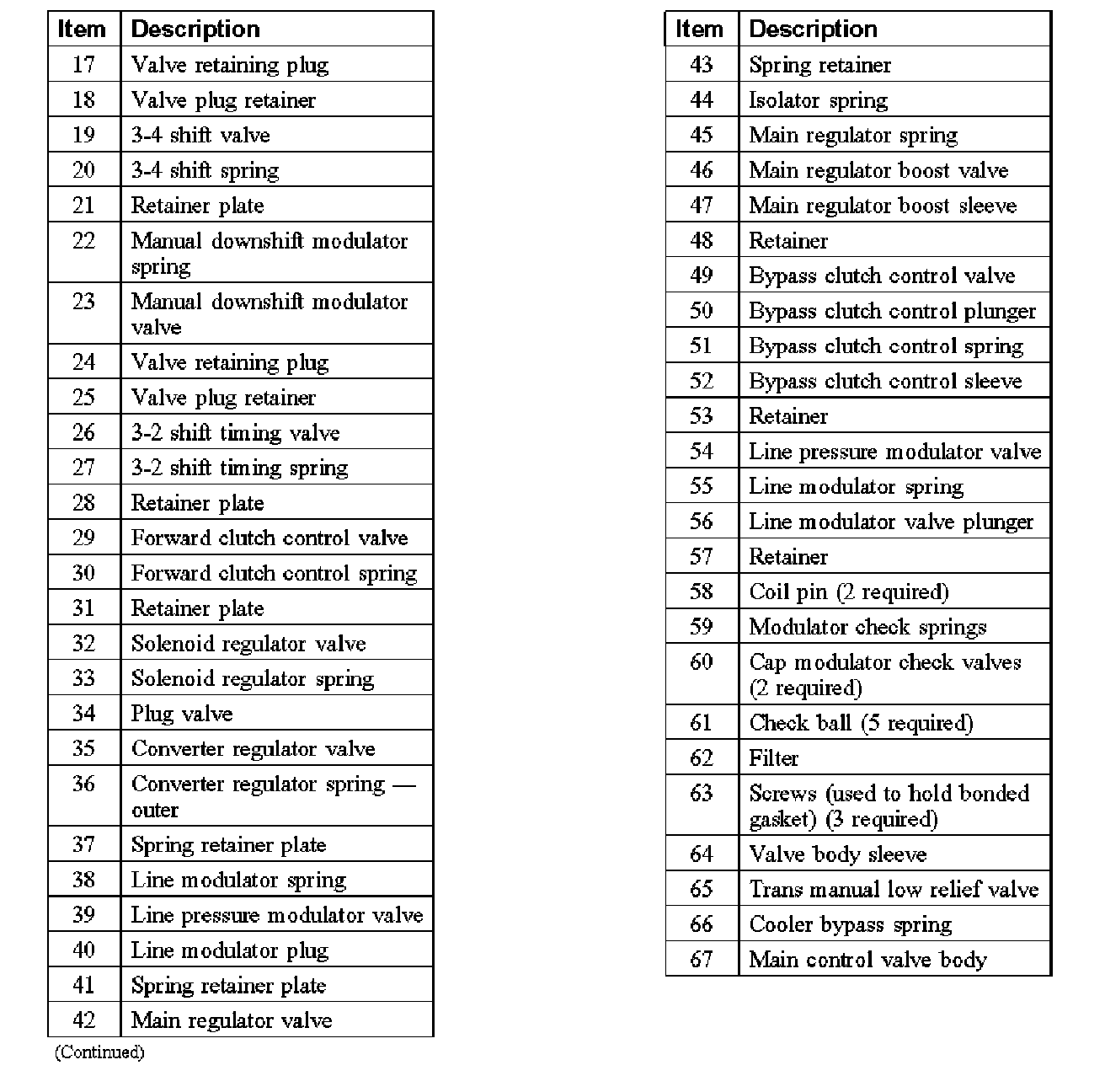

Main Control Valve Body:
Main Control Pump Assembly

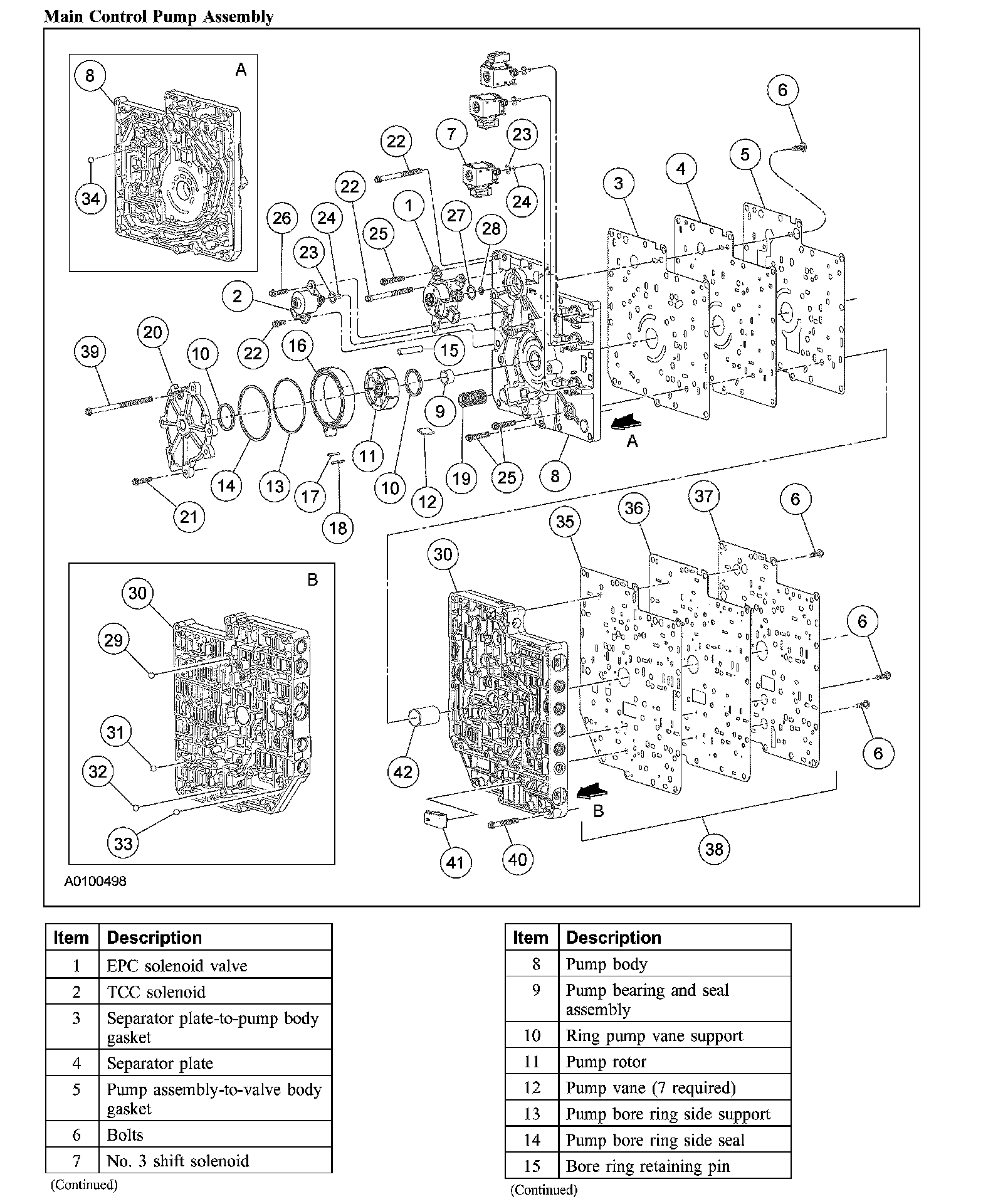

Main Control Pump Assembly:

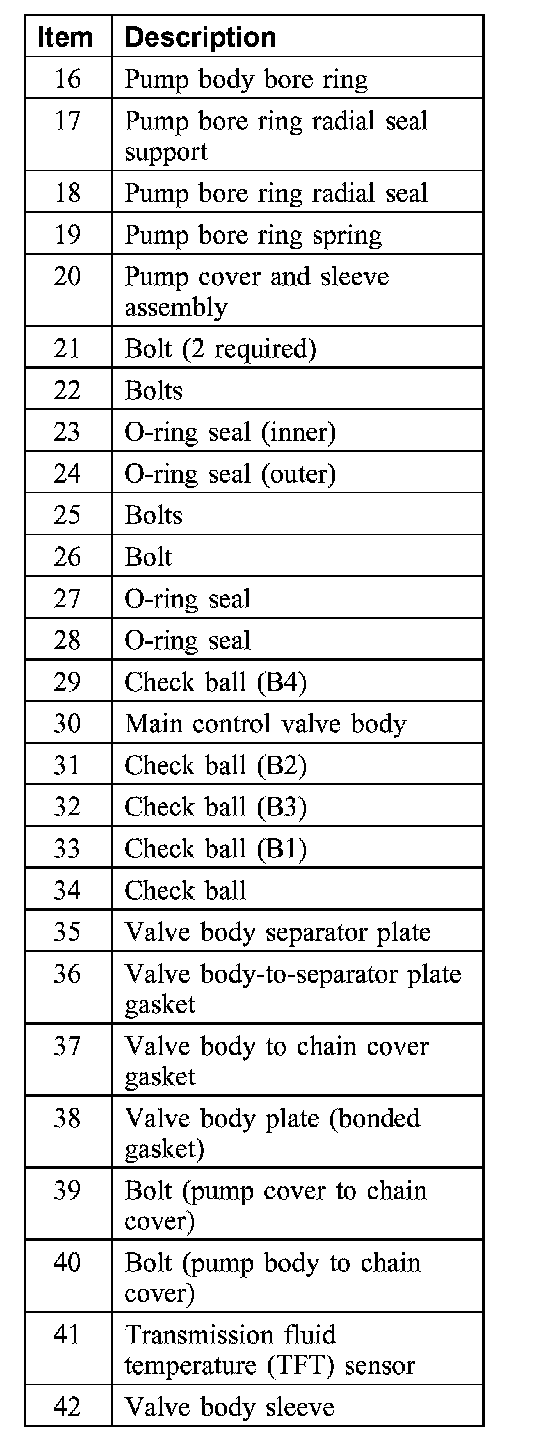

Main Control Pump Assembly:
