Disc Brake System
>>
Rear
Rear

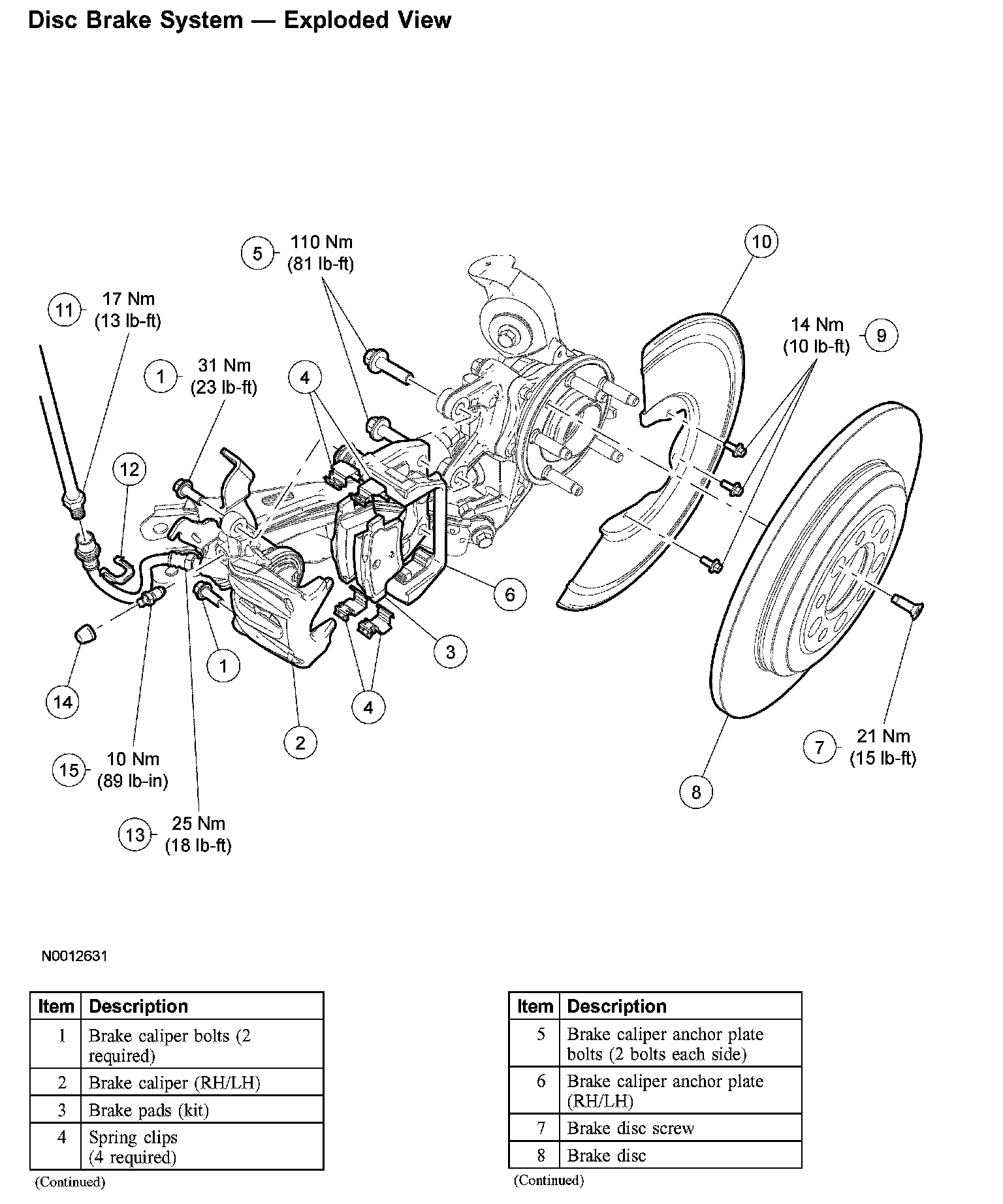

Disc Brake System - Exploded View:
Disc Brake System - Exploded View:
