Home >> Mercury >> 2002 >> Villager Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine - 3.3L >> Disassembly And Assembly Of Subassemblies >> Cylinder Block >> Assembly

Cylinder Block: Assembly

  1. To assemble, reverse the disassembly procedure.

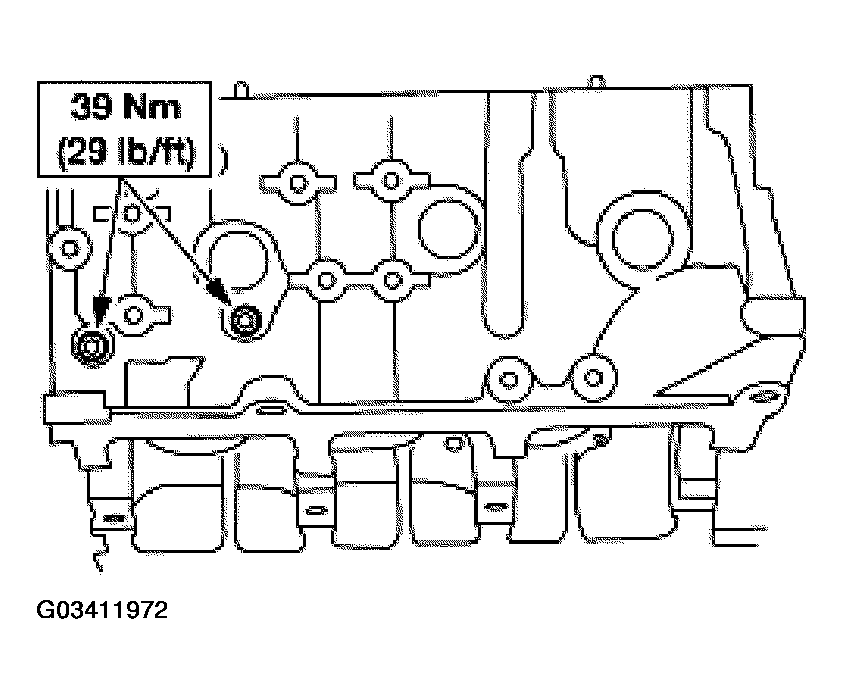

    Fig 1: Identifying Spark Plug Tightening Torque
    G03411972Courtesy of FORD MOTOR CO.

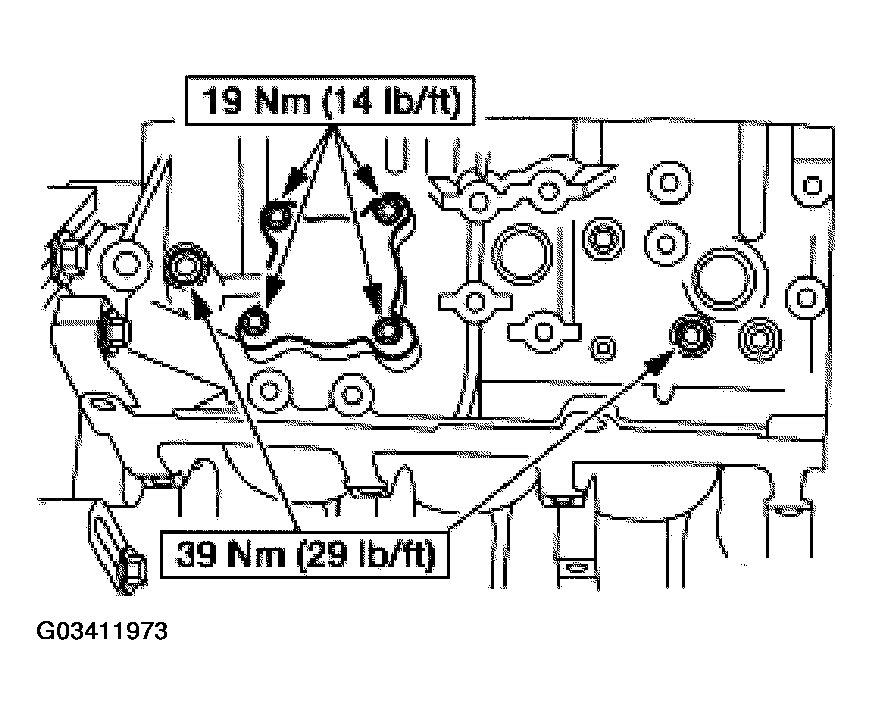

    Fig 2: Identifying Engine Block Oil Adapter Cover Plug And Bolt Tightening Torque
    G03411973Courtesy of FORD MOTOR CO.
