Tests DF: Vehicle Speed Circuit Check

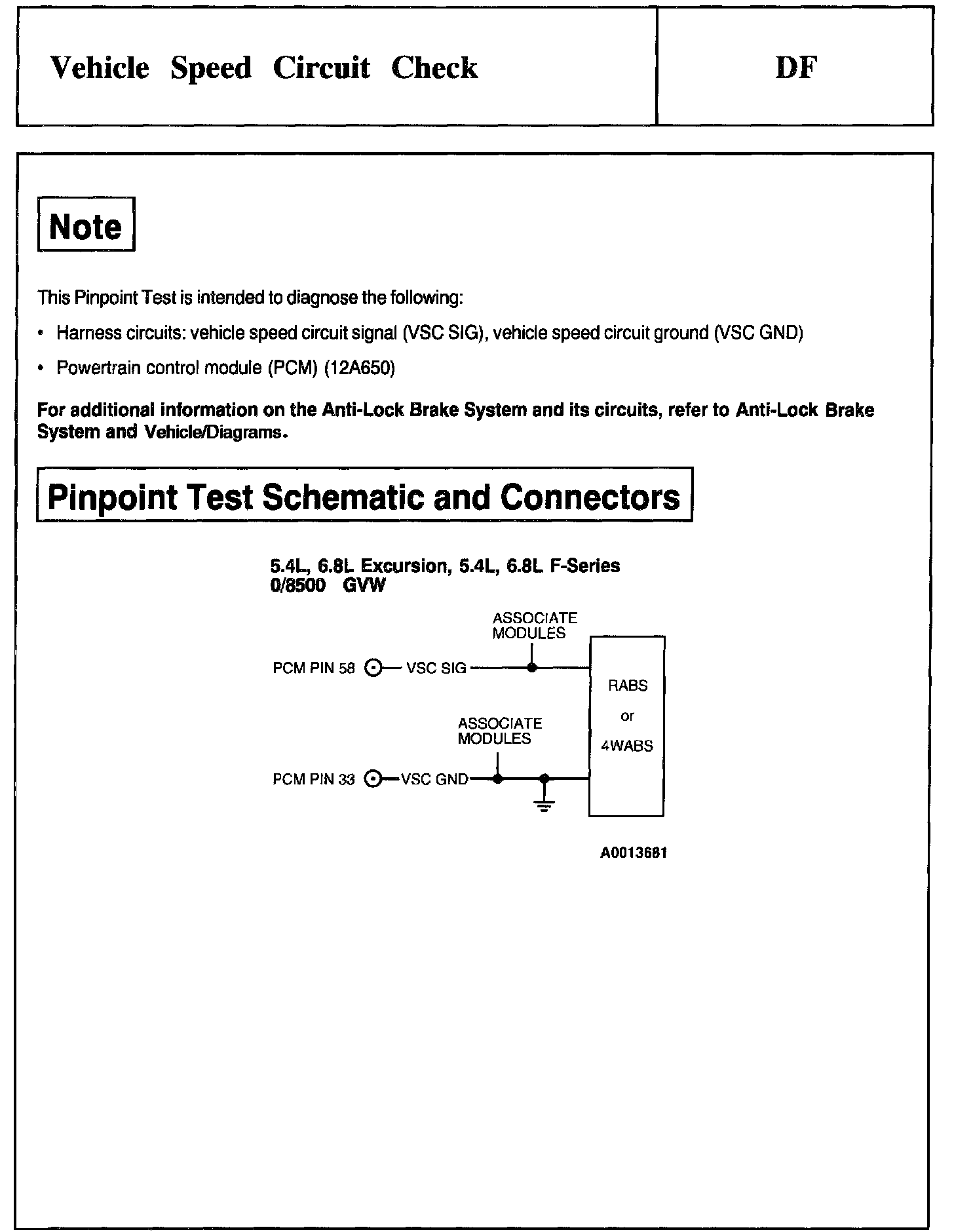

Note, Schematic and Connectors:

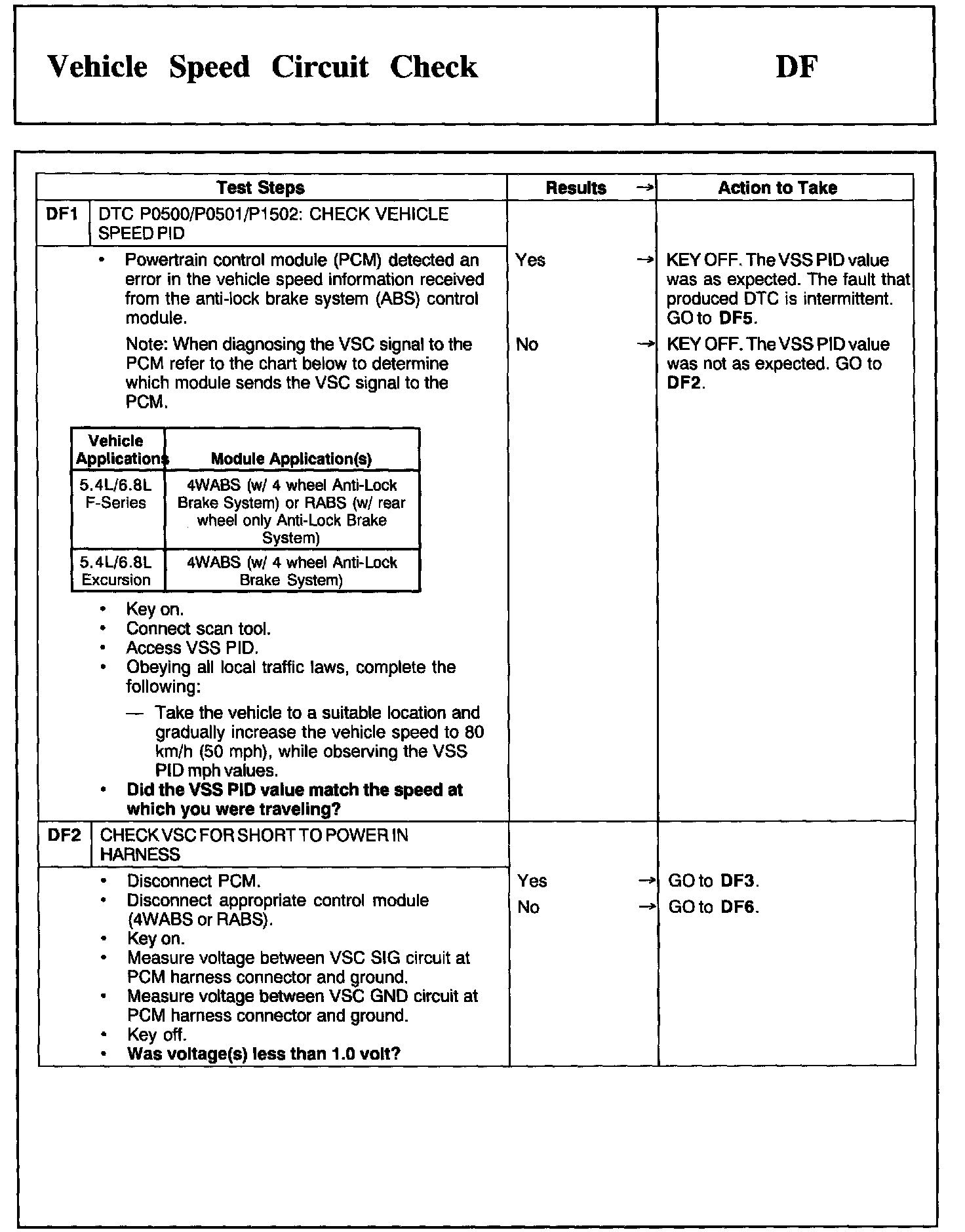

DF1 - DF2:

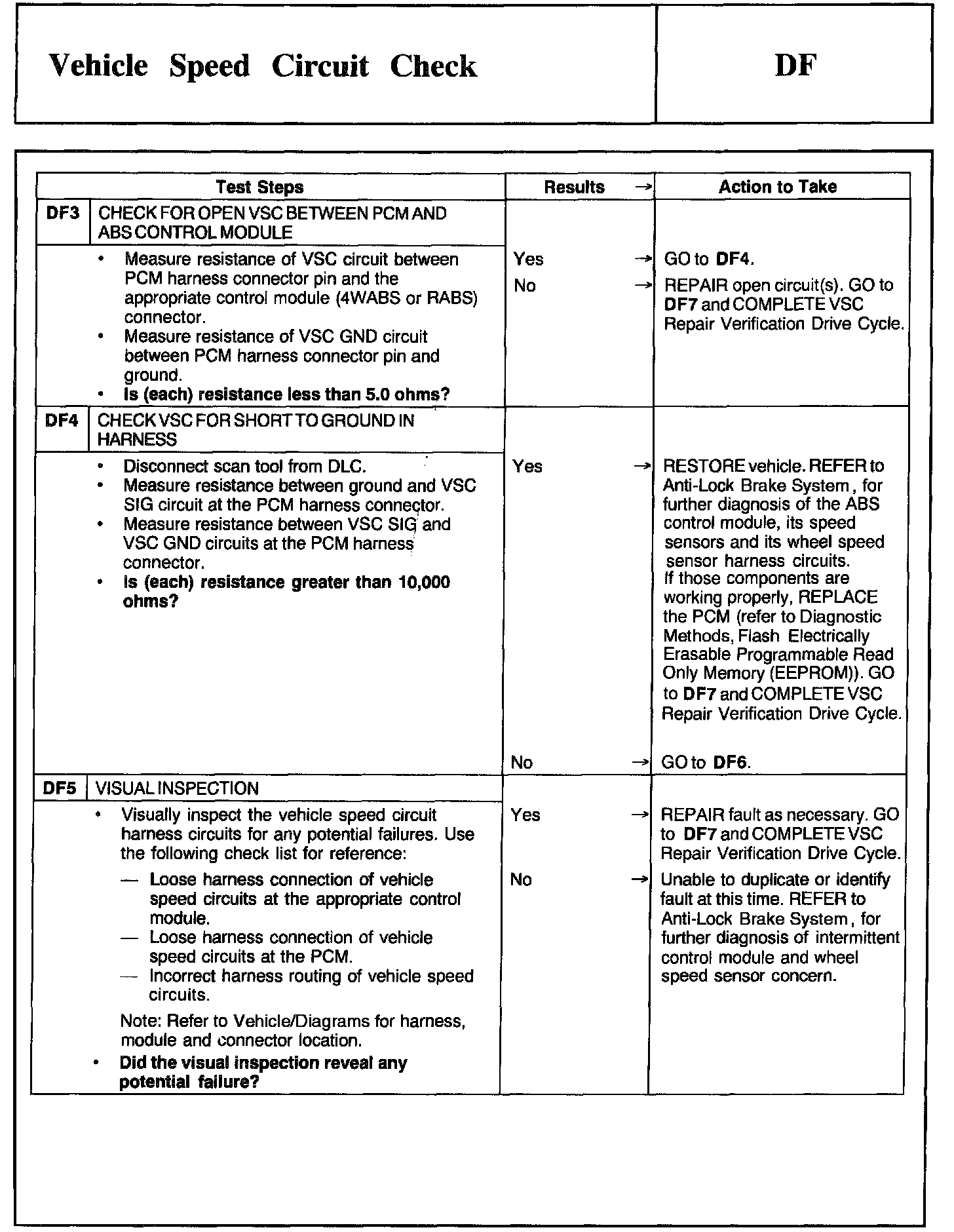

DF3 - DF5:

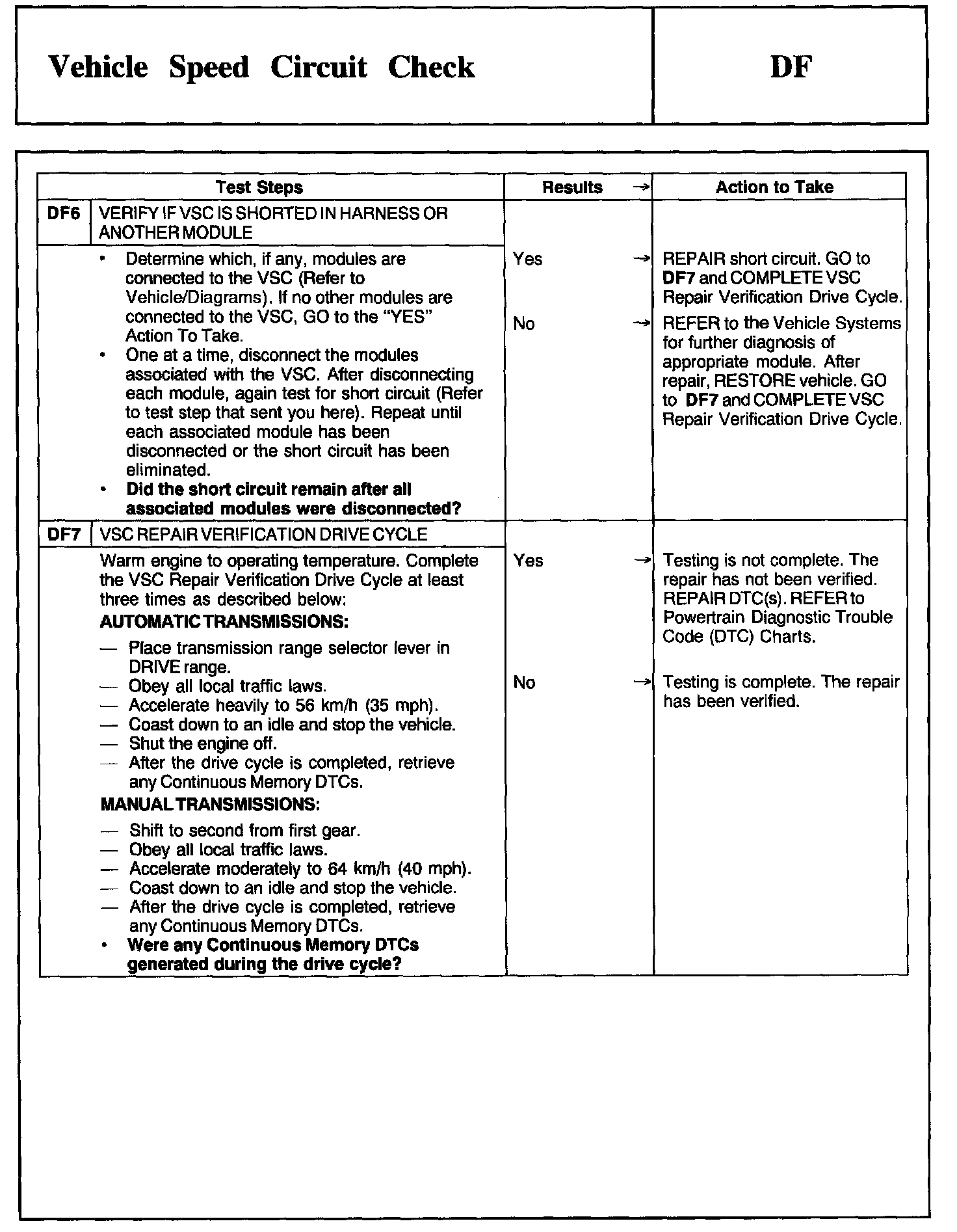

DF6 - DF7:
