Component Testing Procedures

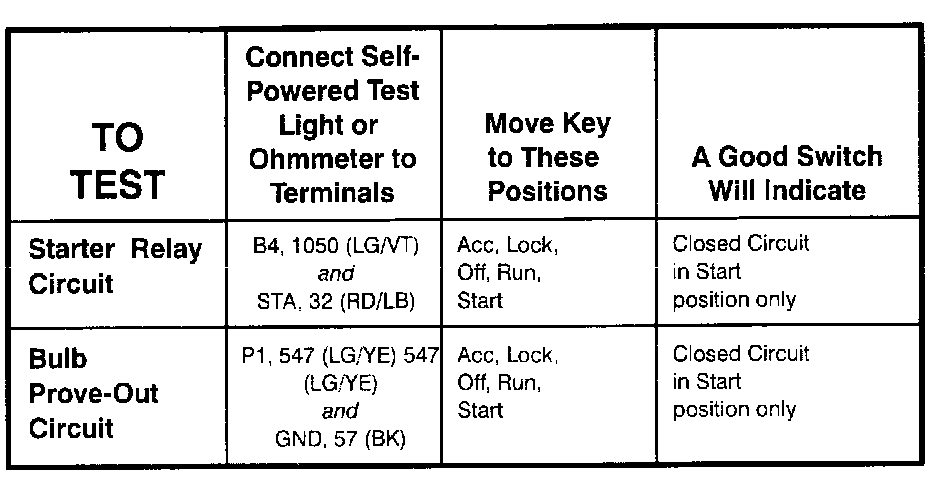

Component Testing Procedure:

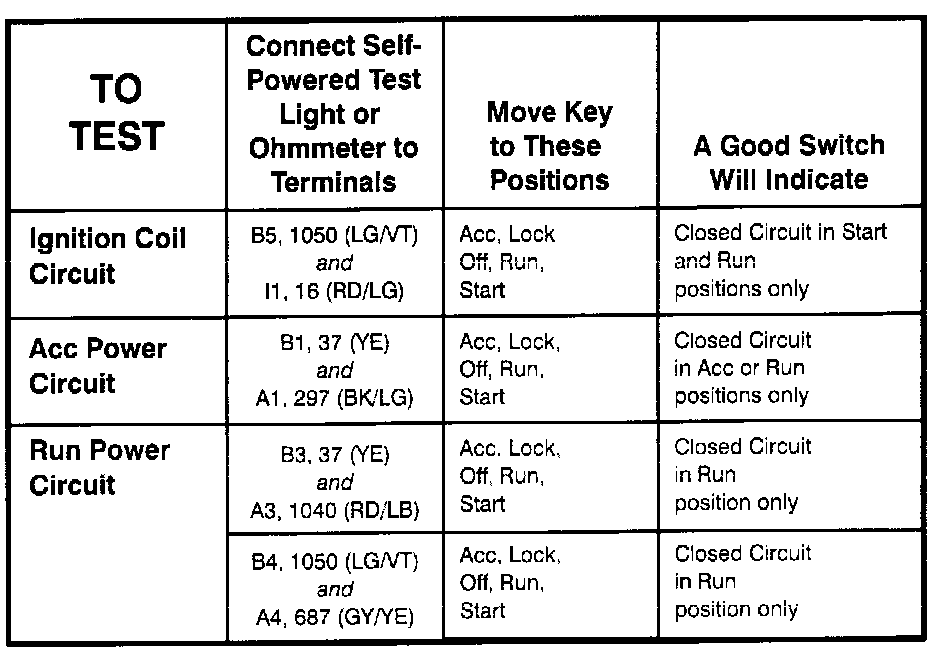

Component Testing Procedure:

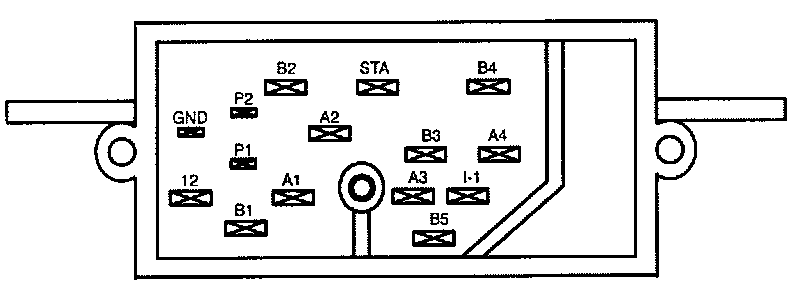

Terminal Locations:

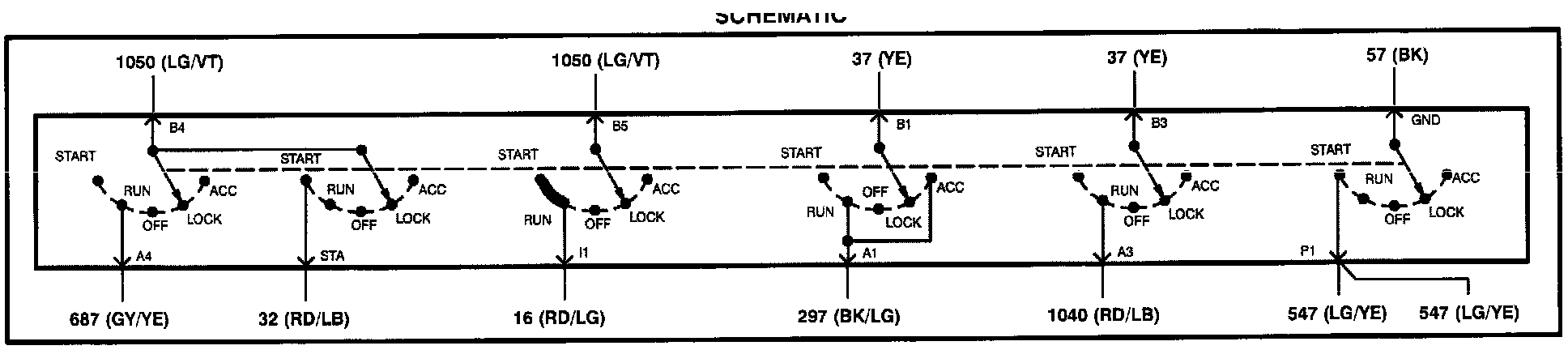

Schematic:
