Home >> Mercury >> 1999 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> AX4S

AX4S

AX4S 1 Of 5:




AX4S 2 Of 5:




AX4S 3 0f 5:




AX4S 4 Of 5:




AX4S 5 Of 5:

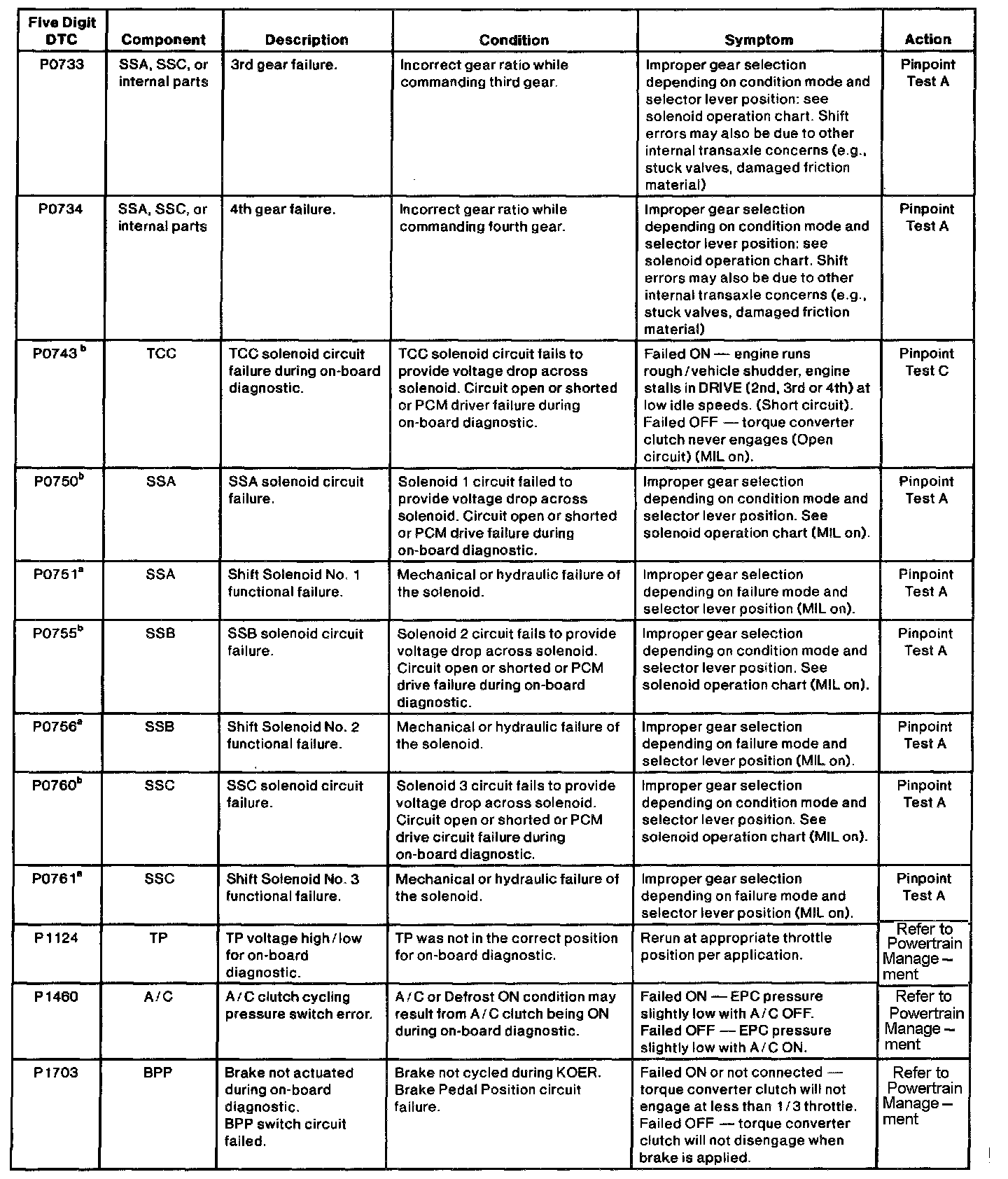

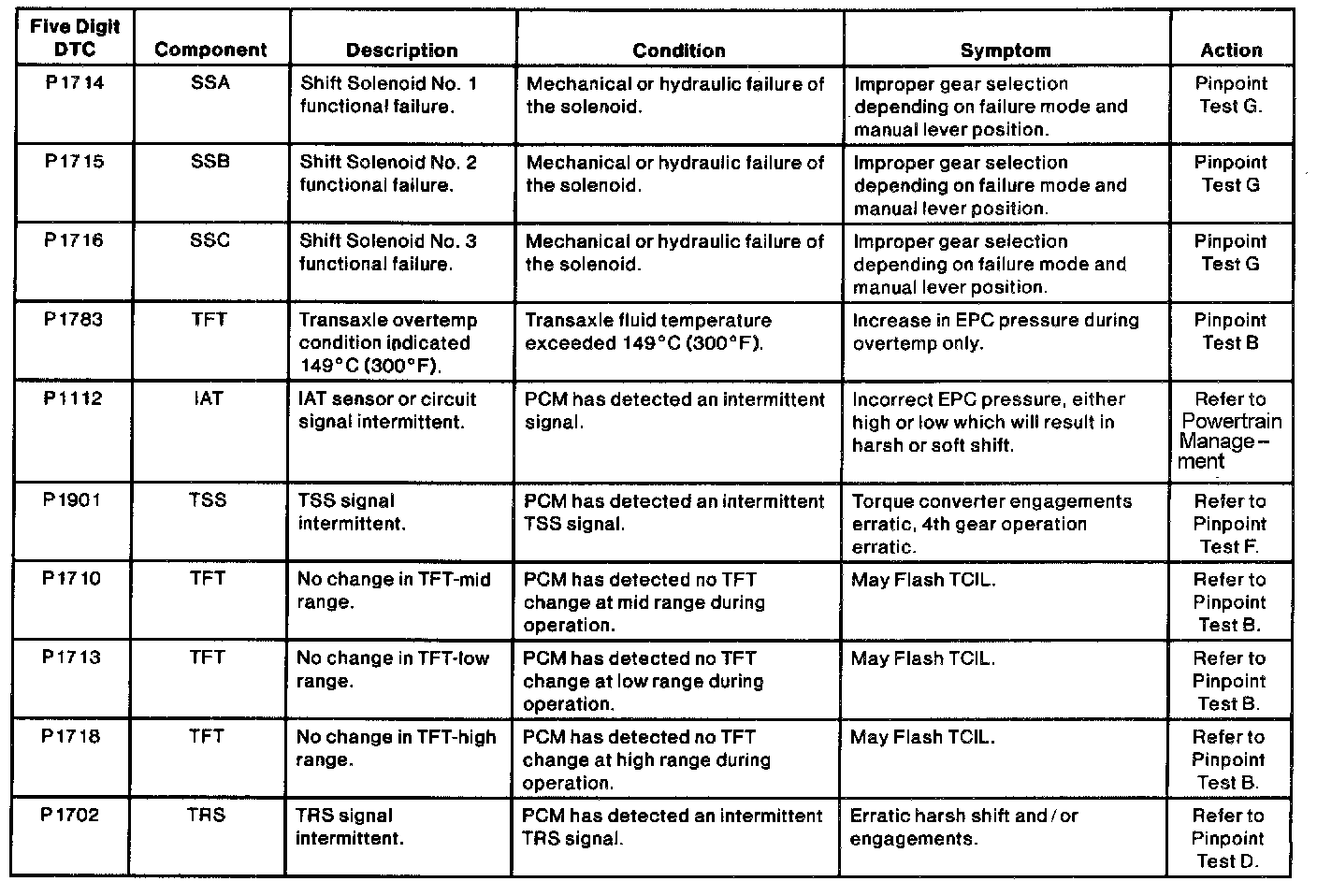

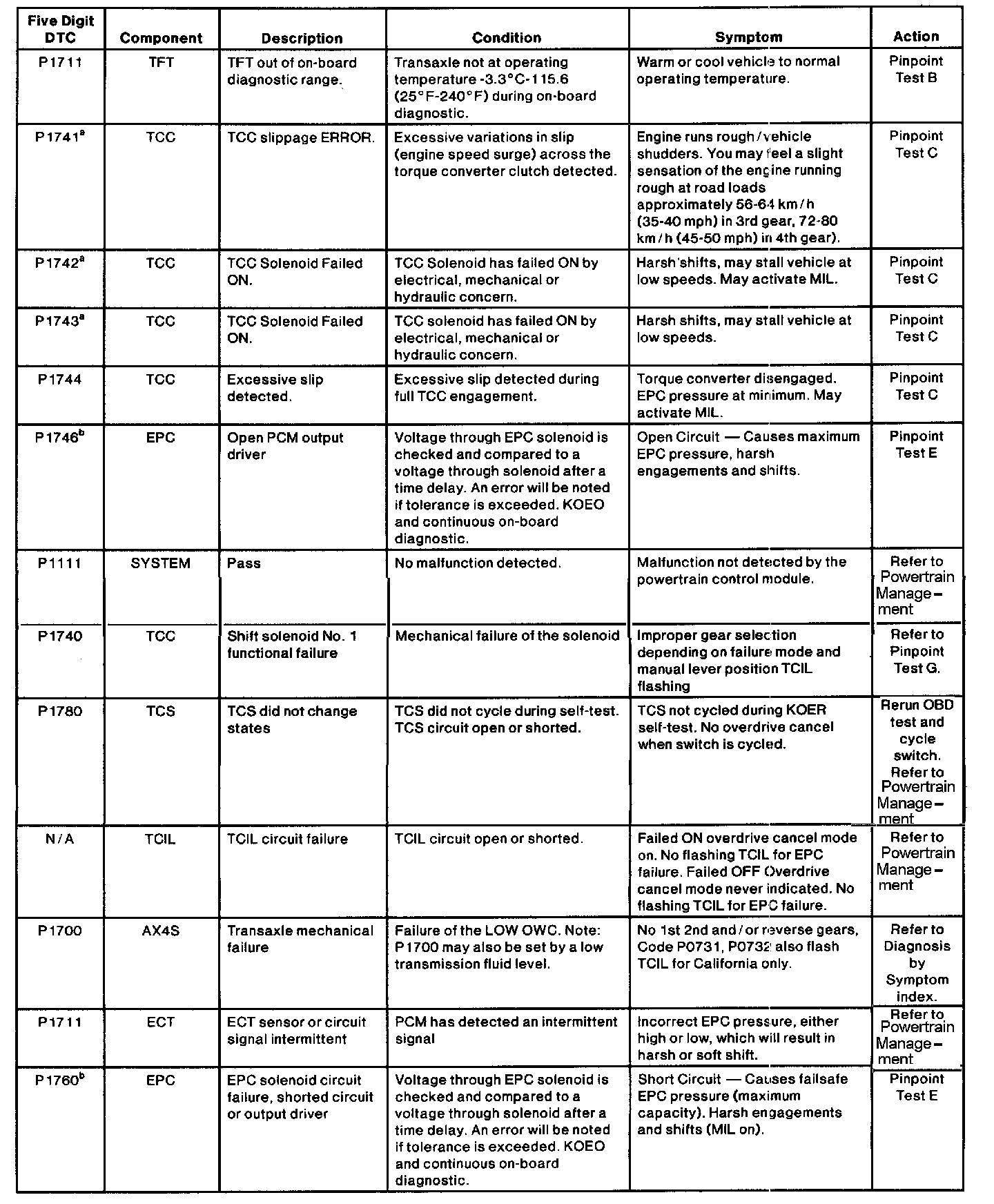

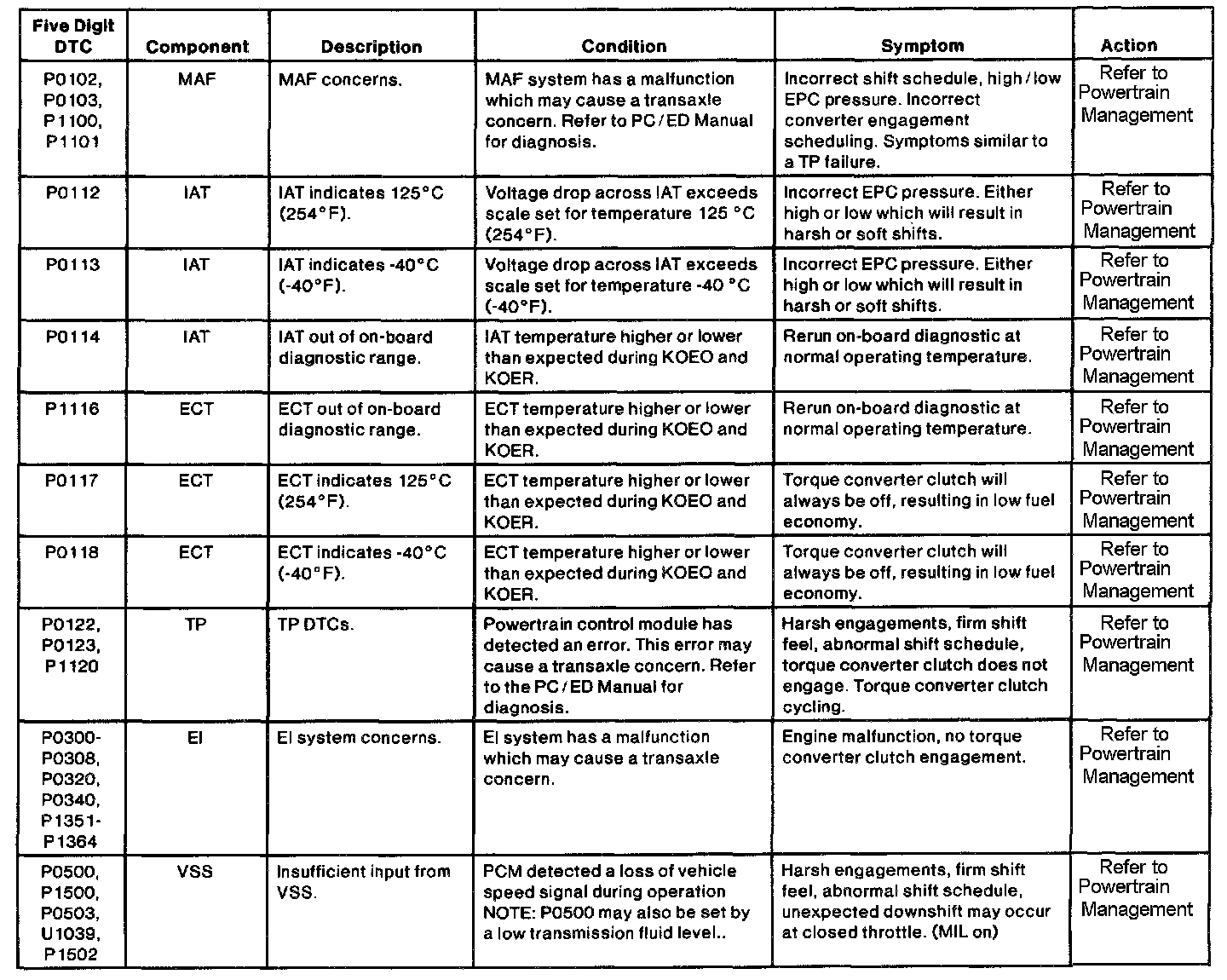

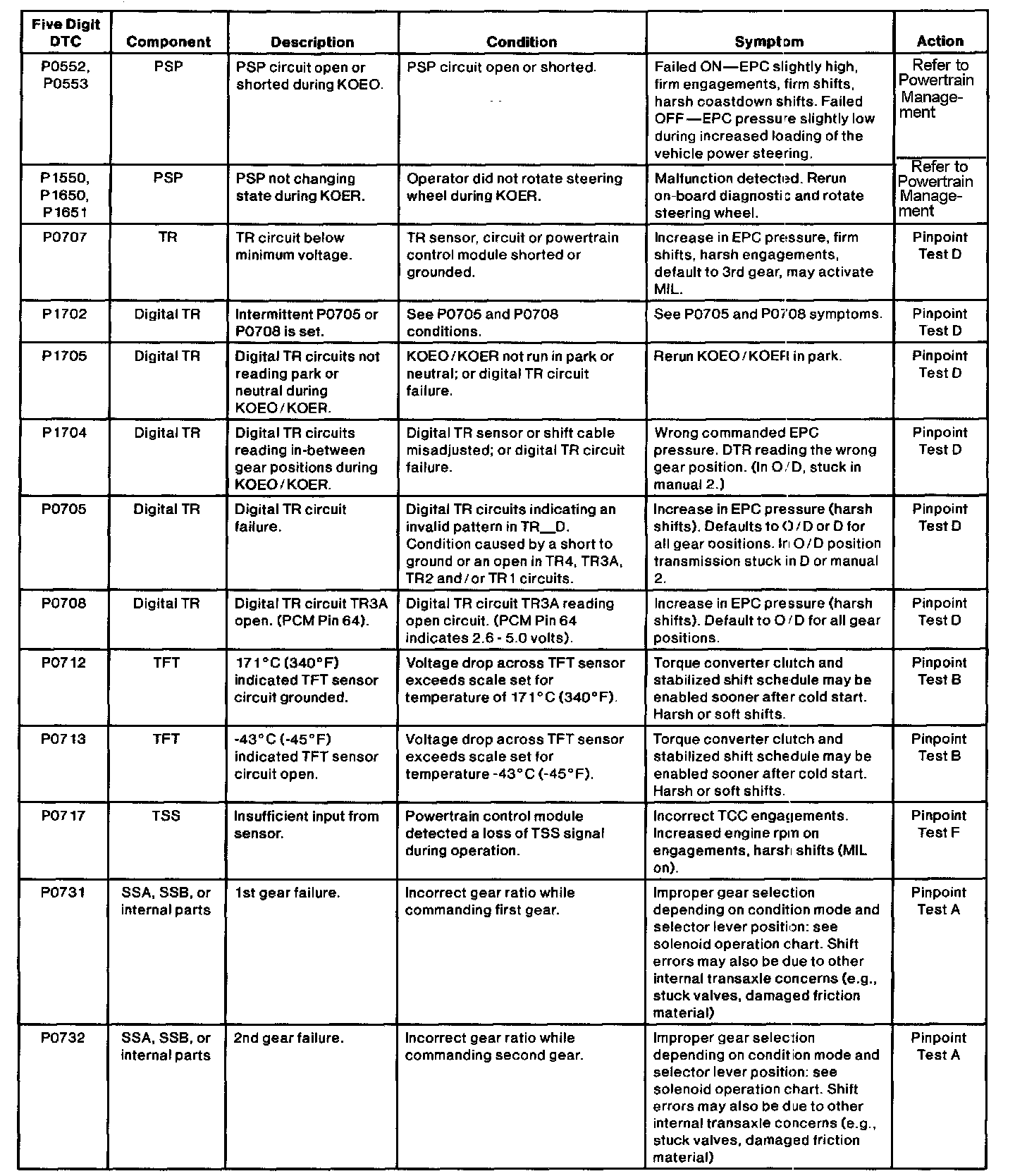

ON-BOARD DIAGNOSTIC TROUBLE CODE DESCRIPTION CHARTS

Footnotes:

b Output circuit check, generated only by electrical symptoms.
