Symbol Identification

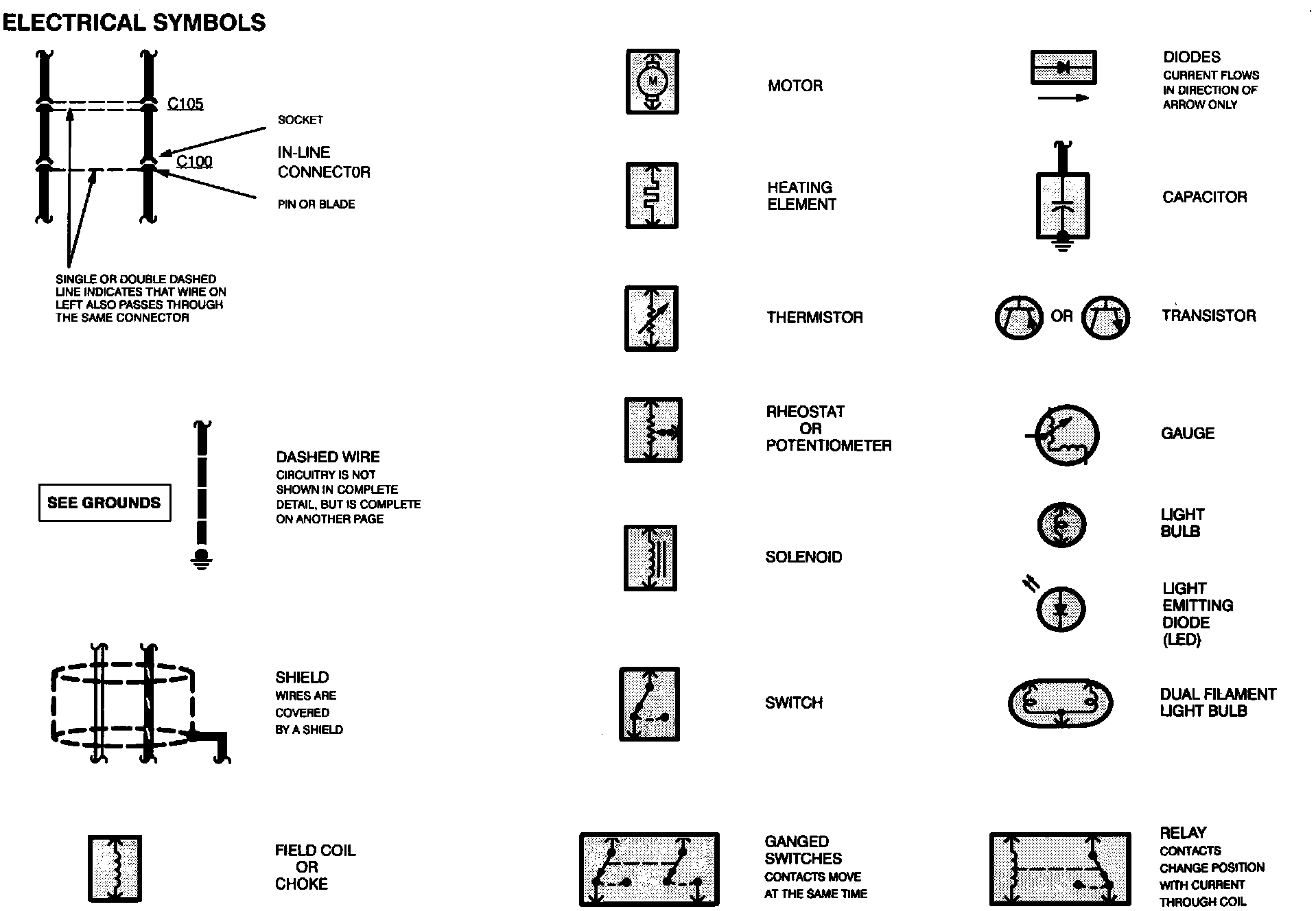

ELECTRICAL SYMBOLS

Electrical Symbols:

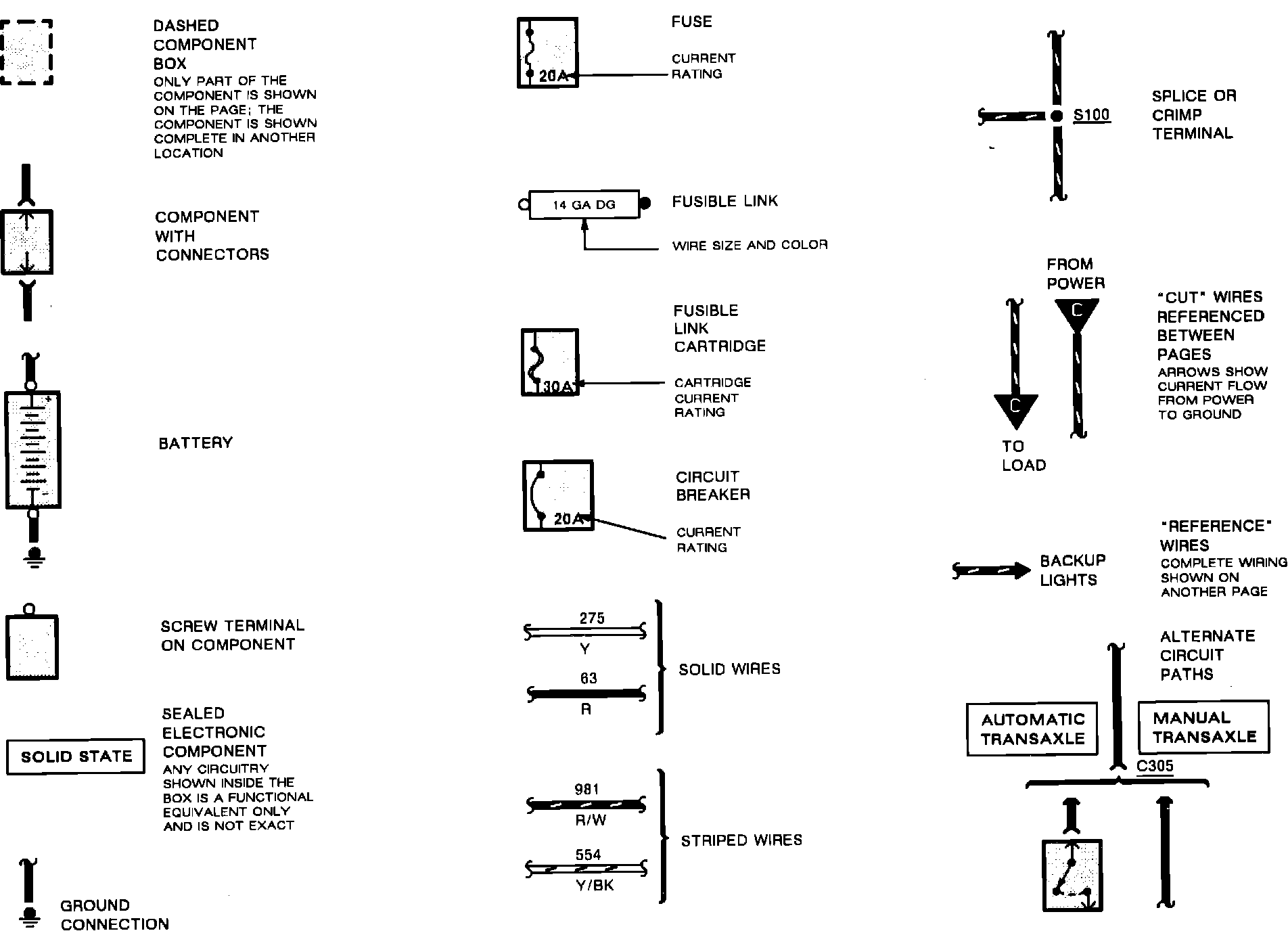

Electrical Symbols:

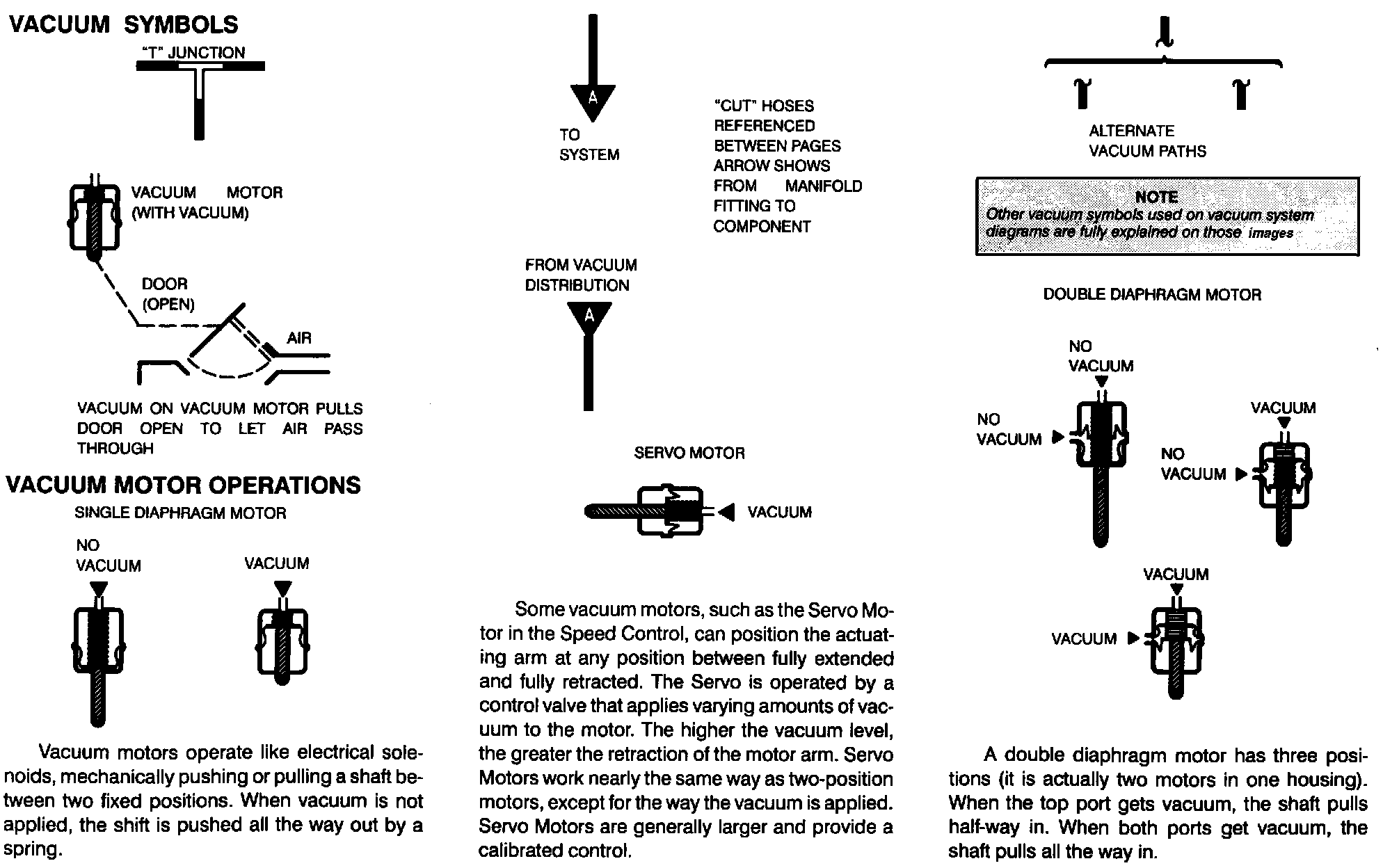

VACUUM SYMBOLS

Vacuum Symbols:
