Home >> Mercury >> 1997 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

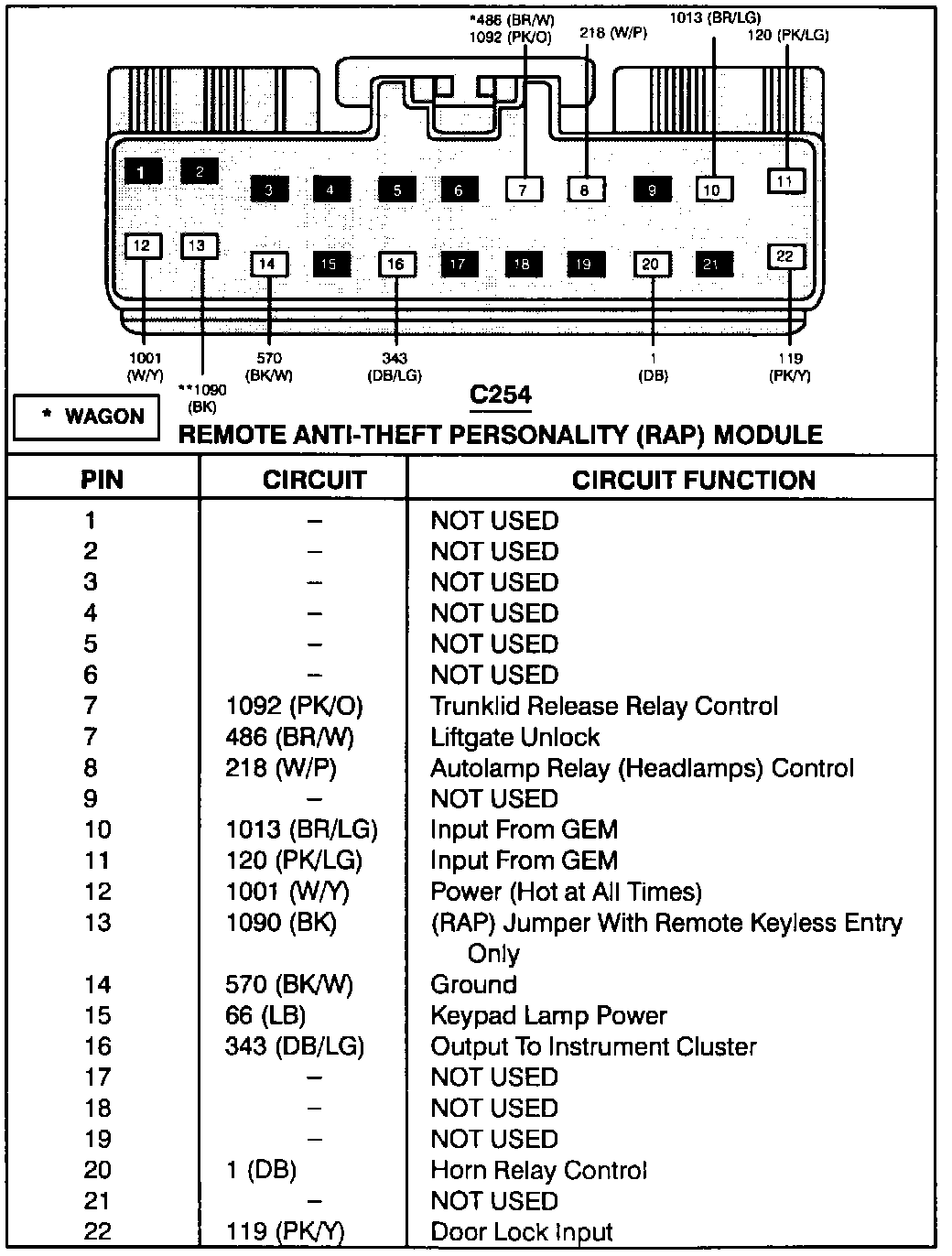

Remote Anti-Theft Personality Module (C254):

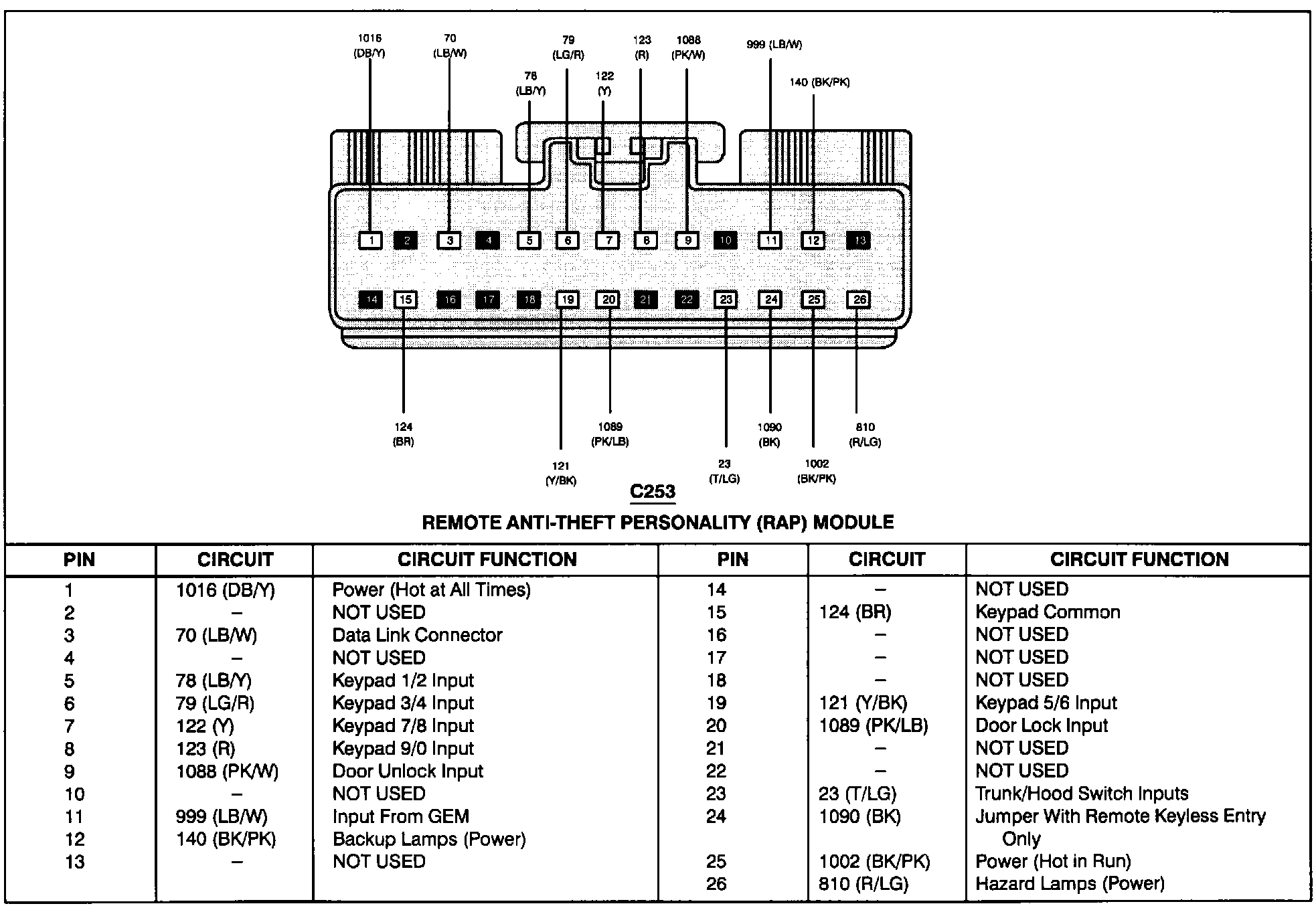

Remote Anti-Theft Personality Module (C253):
