Wiring Diagrams

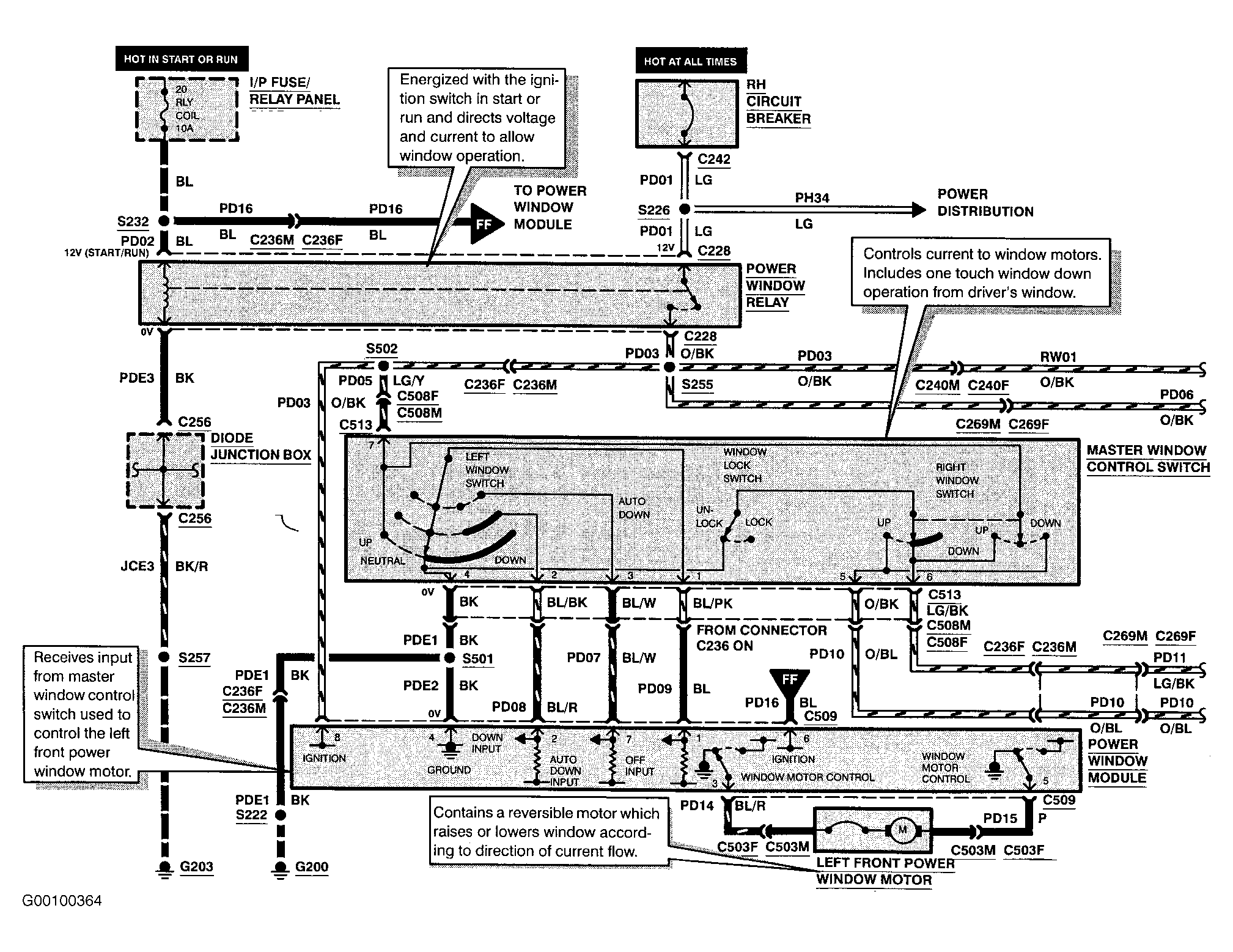

Fig 1: Power Windows (Villager - 1 Of 2)
Courtesy of FORD MOTOR CO.

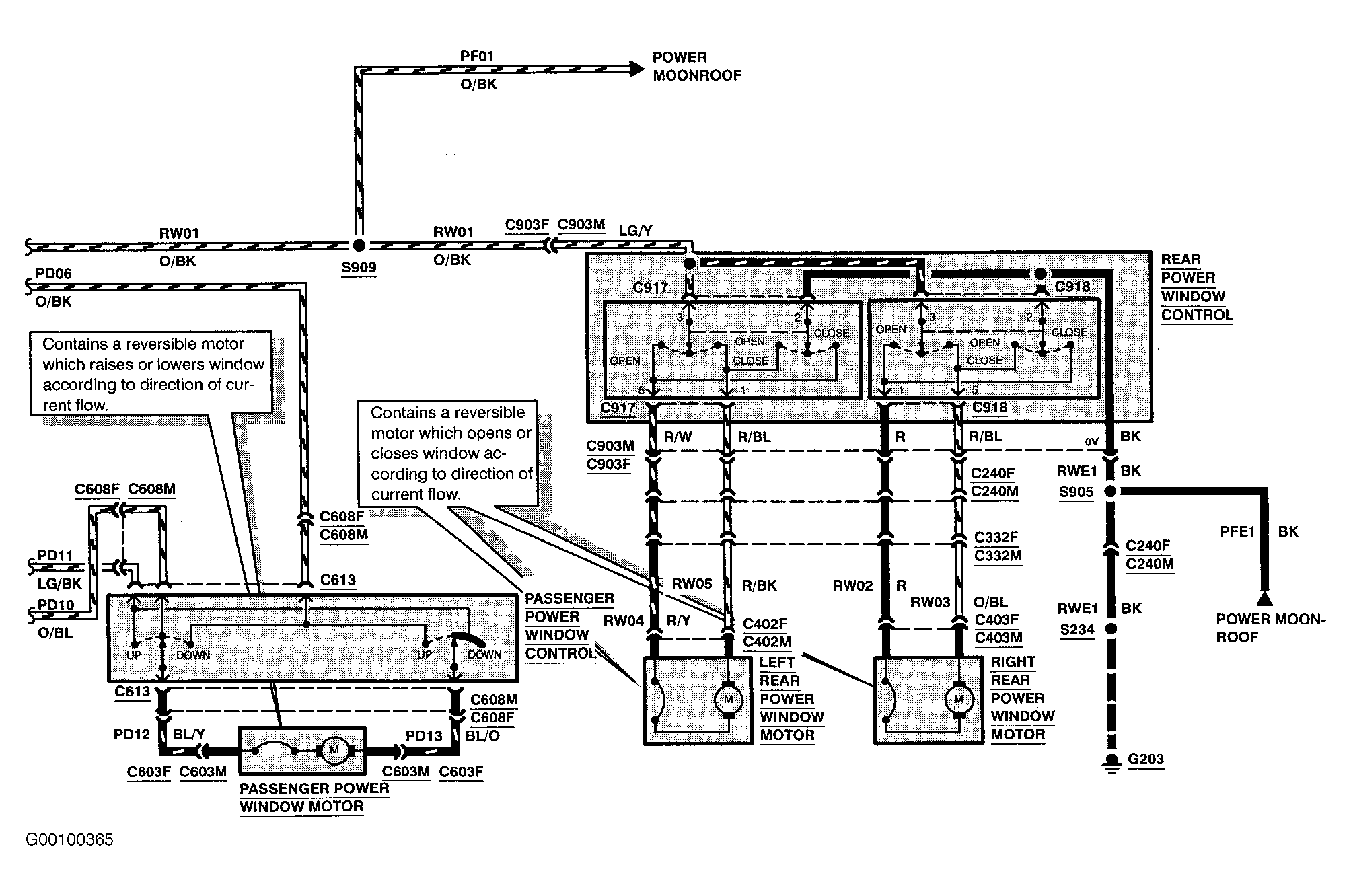

Fig 2: Power Windows (Villager - 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
