A/T Technical Data

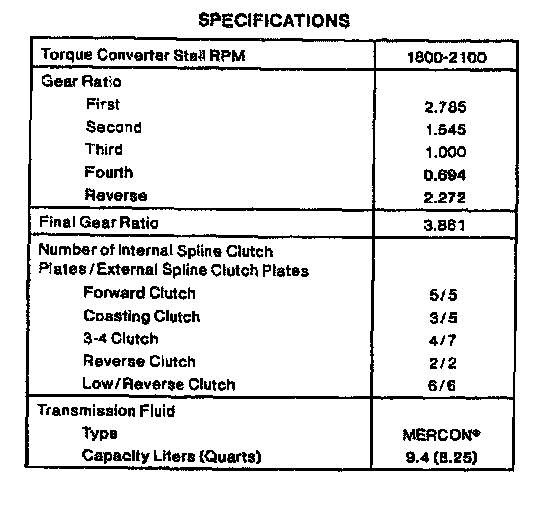

4F20E 4-spd A/T, Gear Ratio/Clutch Plates (Villager):

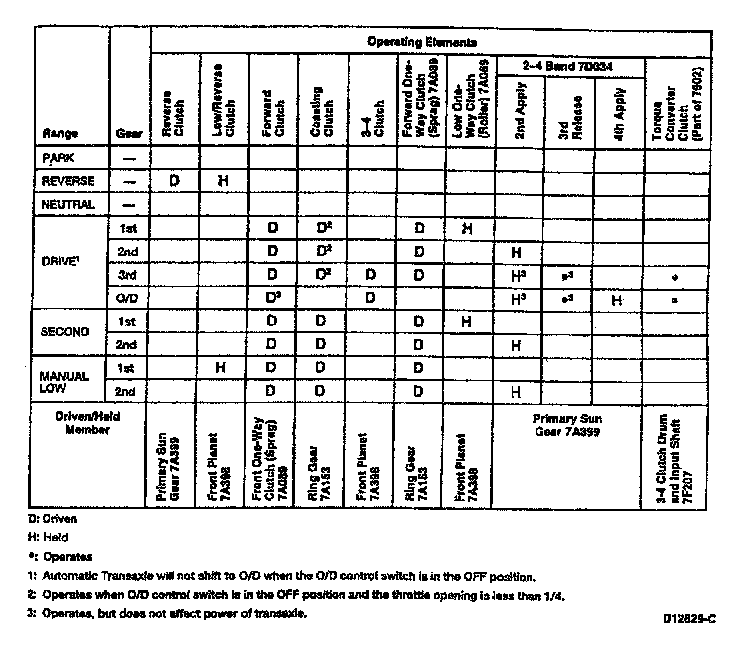

4F20E 4-spd A/T, Band/Clutch Application (Villager):

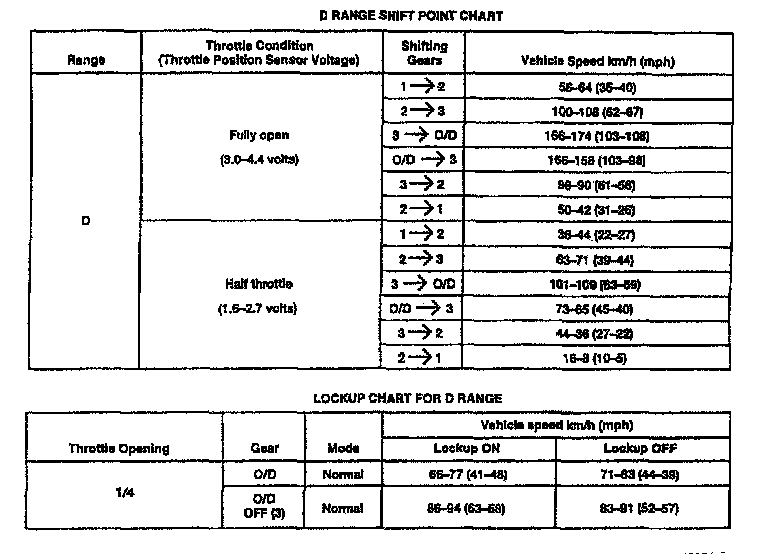

4F20E 4-spd A/T, Drive Range Shift Chart:

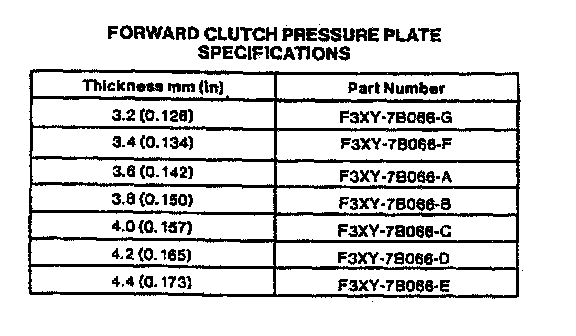

4F20E 4-spd A/T, Forward Clutch Thickness:

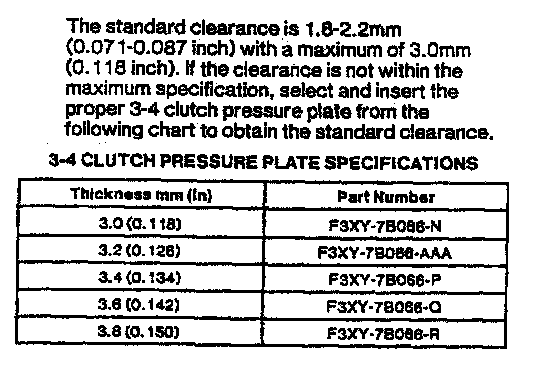

4F20E 4-spd A/T, 3-4 Clutch Clearance:
