EGR Control Solenoid

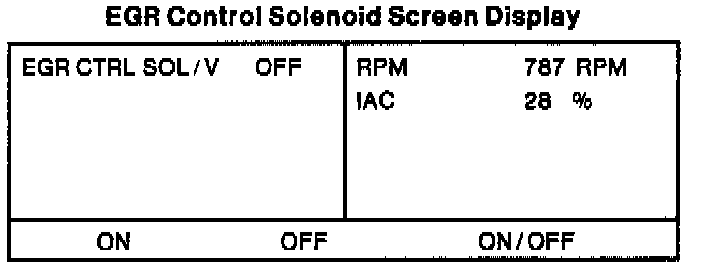

The EGR CONTROL SOLENOID can be set to ON, OFF, or ON/OFF (solenoid is repeatedly cycled on and off in 3 second intervals) by pressing the number key 3, 5, or 7. Engine rpm and IAC valve opening are displayed. When this test is completed. press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
