Diagnostic Mode Switch/Connector: Locations

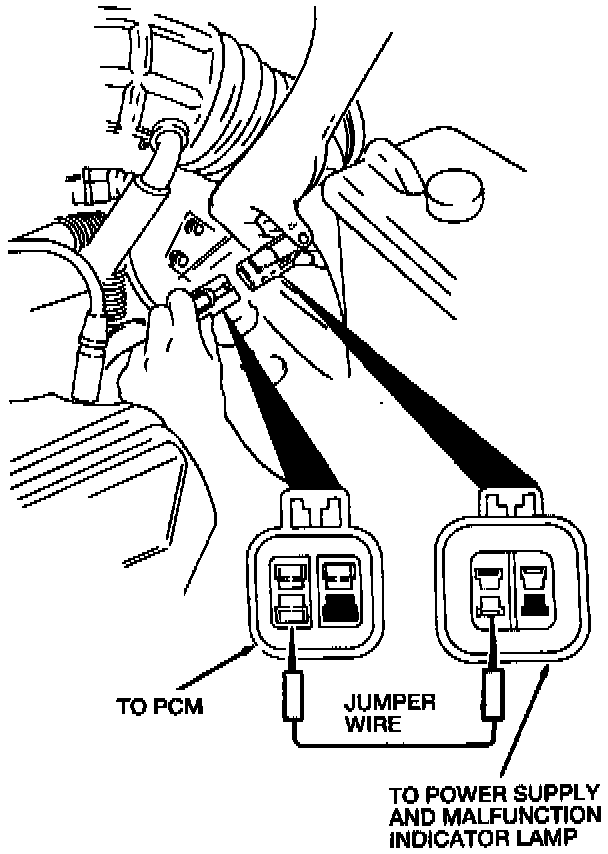

Diagnostic Test Connector (DTC):





DIAGNOSTIC TEST CONNECTOR (DTC)
Mounted on the transaxle next to MLP connectors, behind the engine coolant reservoir.
