Home >> Mercury >> 1994 >> Villager V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Timer/Control Unit, Accessory Control

Timer/Control Unit, Accessory Control

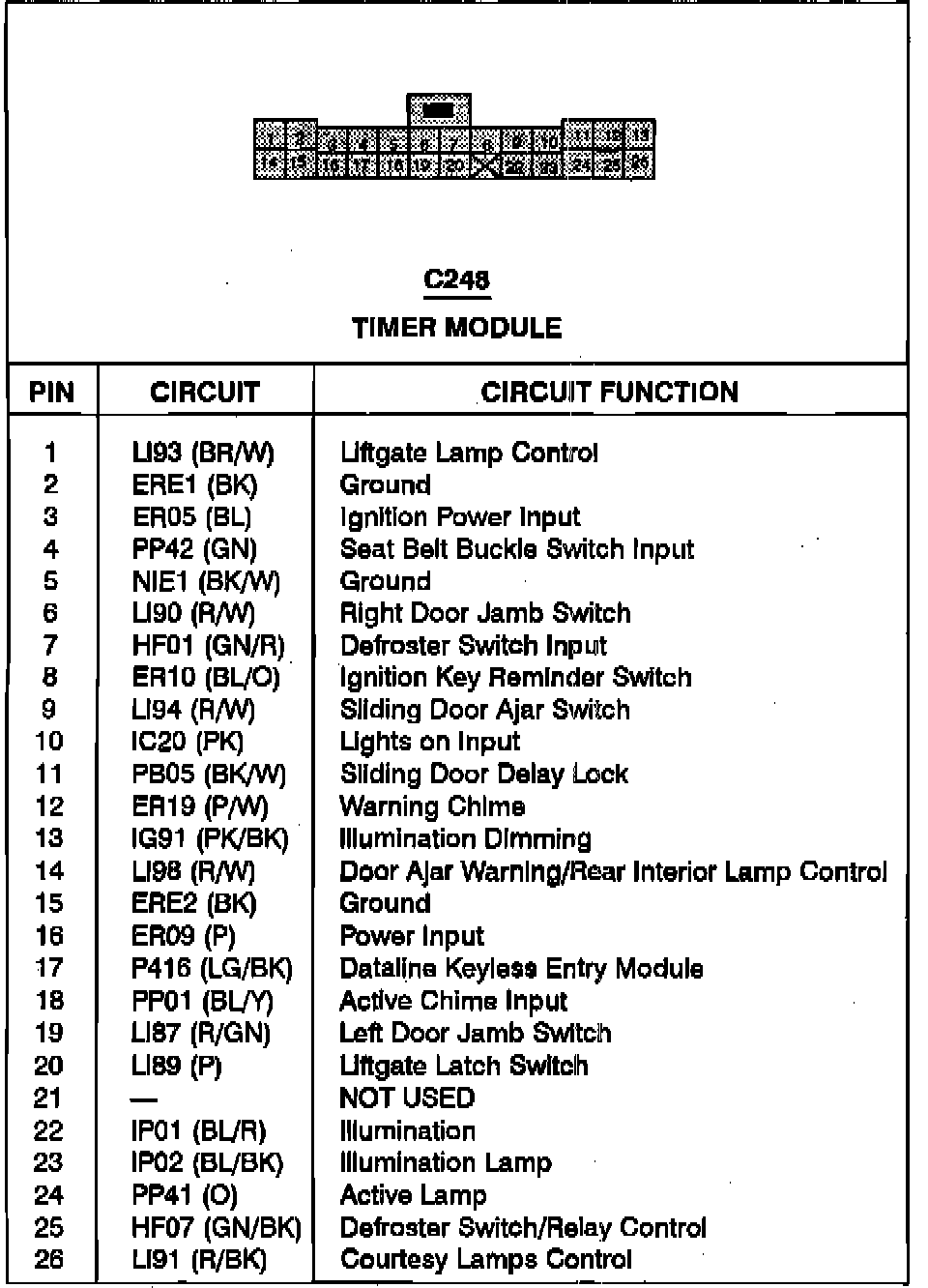

Timer Module:
