Home >> Mercury >> 1994 >> Villager V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Key-Pad

Keyless Entry Key-Pad

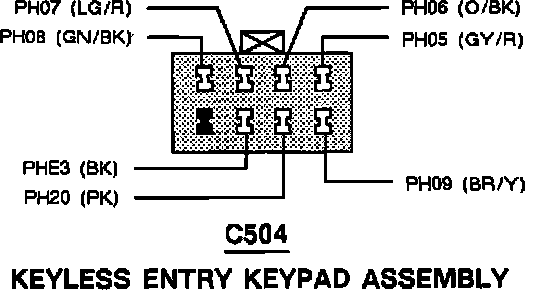

Keyless Entry Keypad Assembly:
