Home >> Mercury >> 1994 >> Villager V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Front

Front

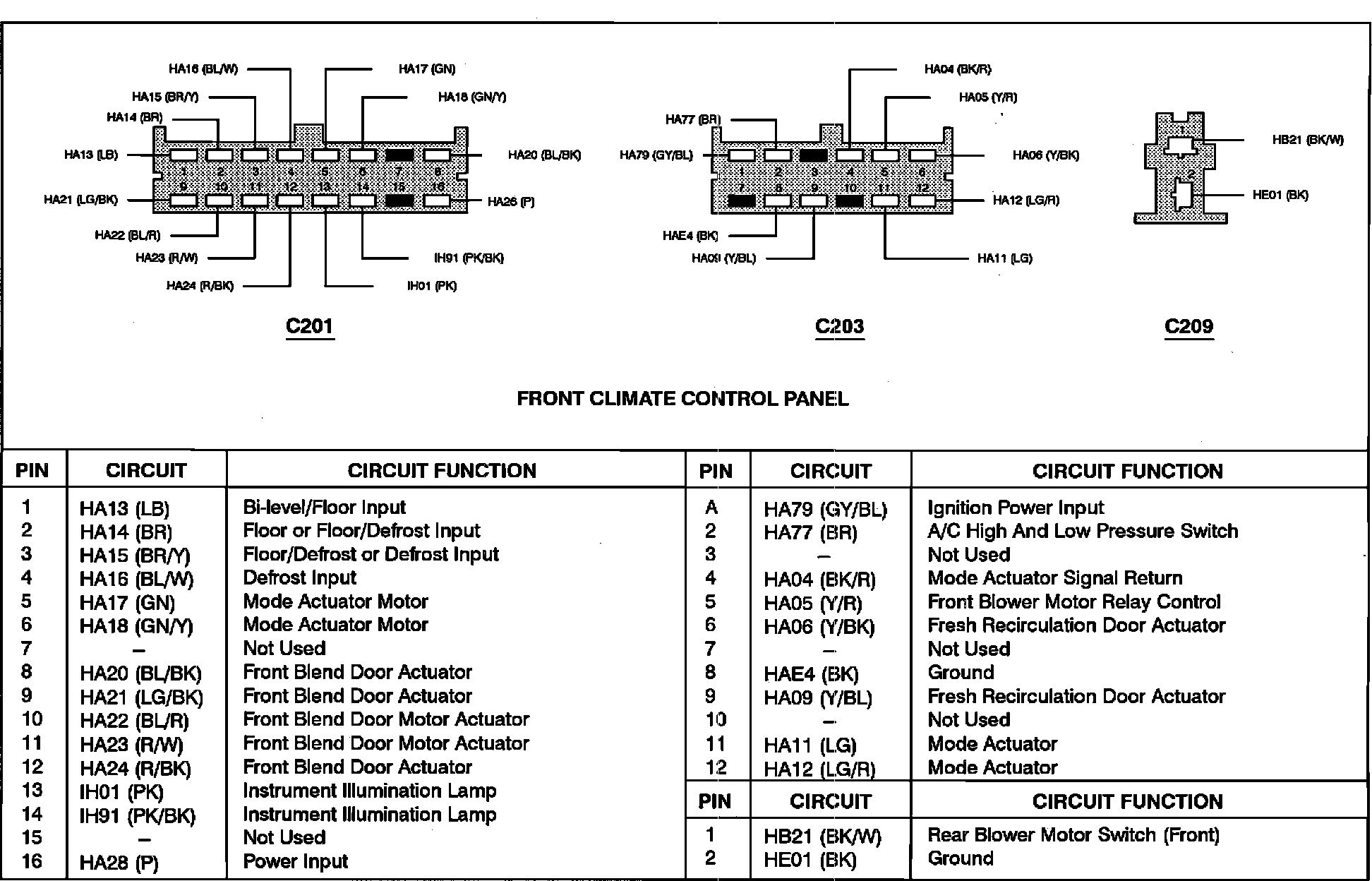

Front Climate Control Panel:
