Transmission Control Systems
Transmission Control Systems

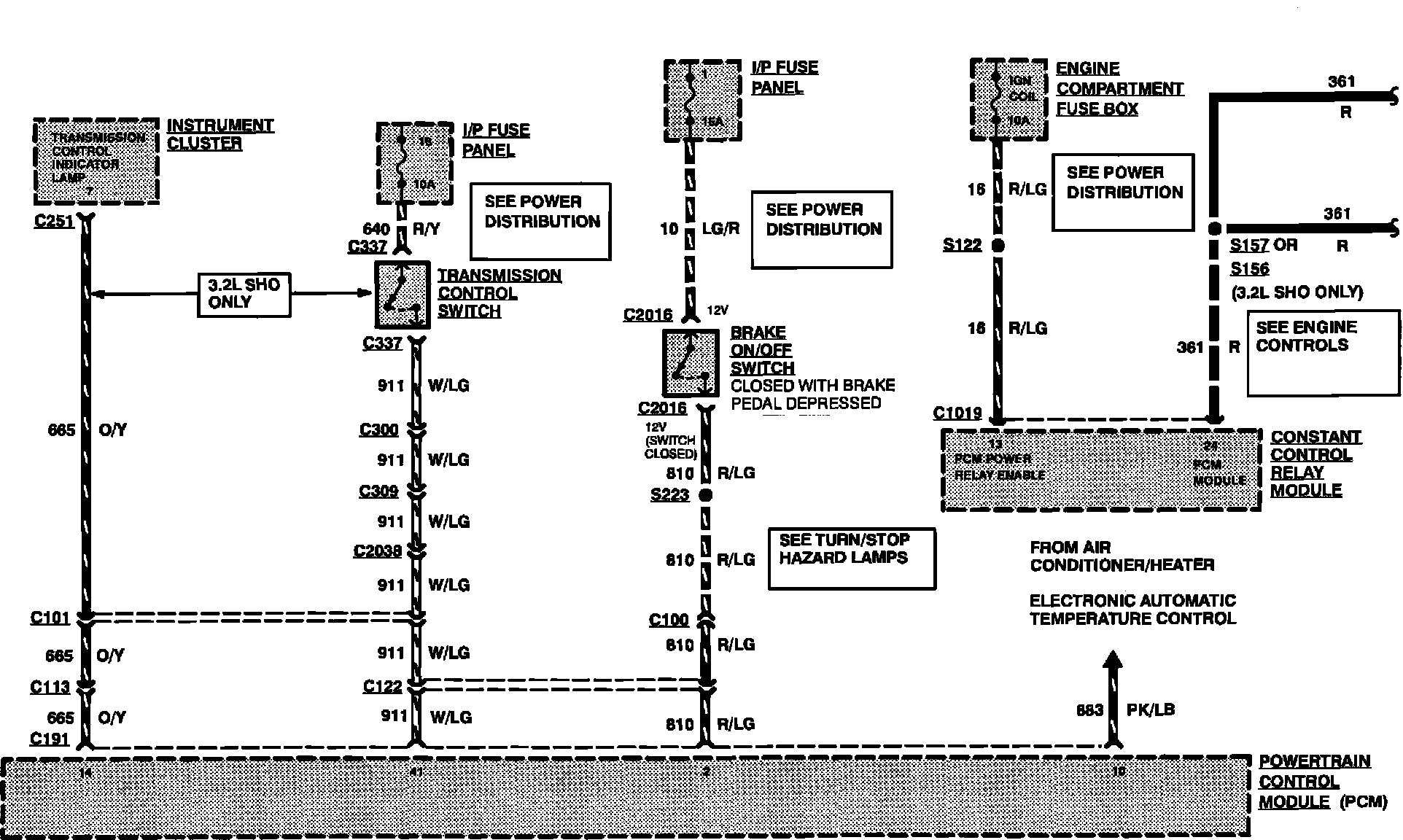

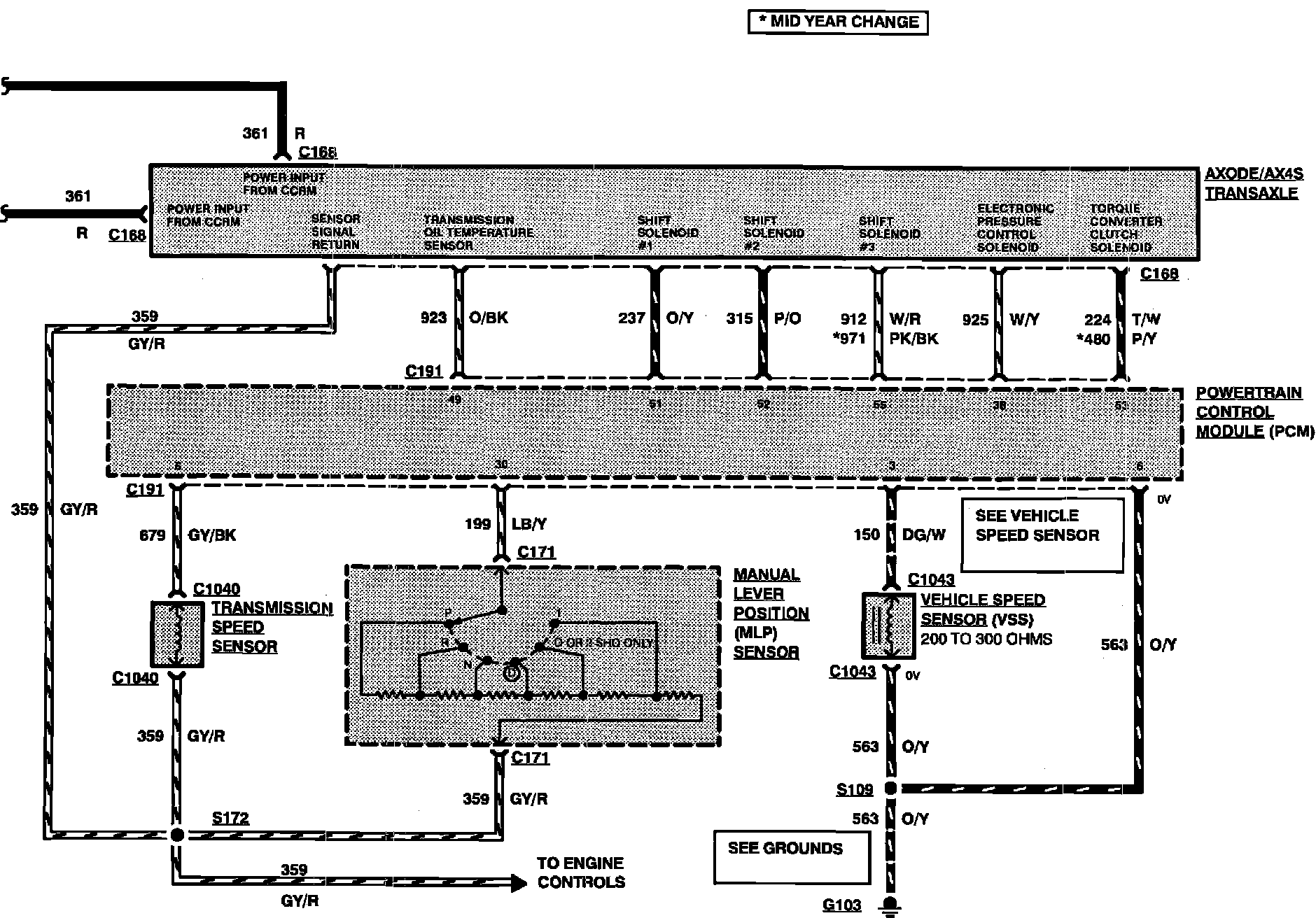

AXODE/AX4S Transaxle:
AXODE/AX4S Transaxle:
