Multi-Function Switch Component Testing Procedures




COMPONENT TESTING PROCEDURES

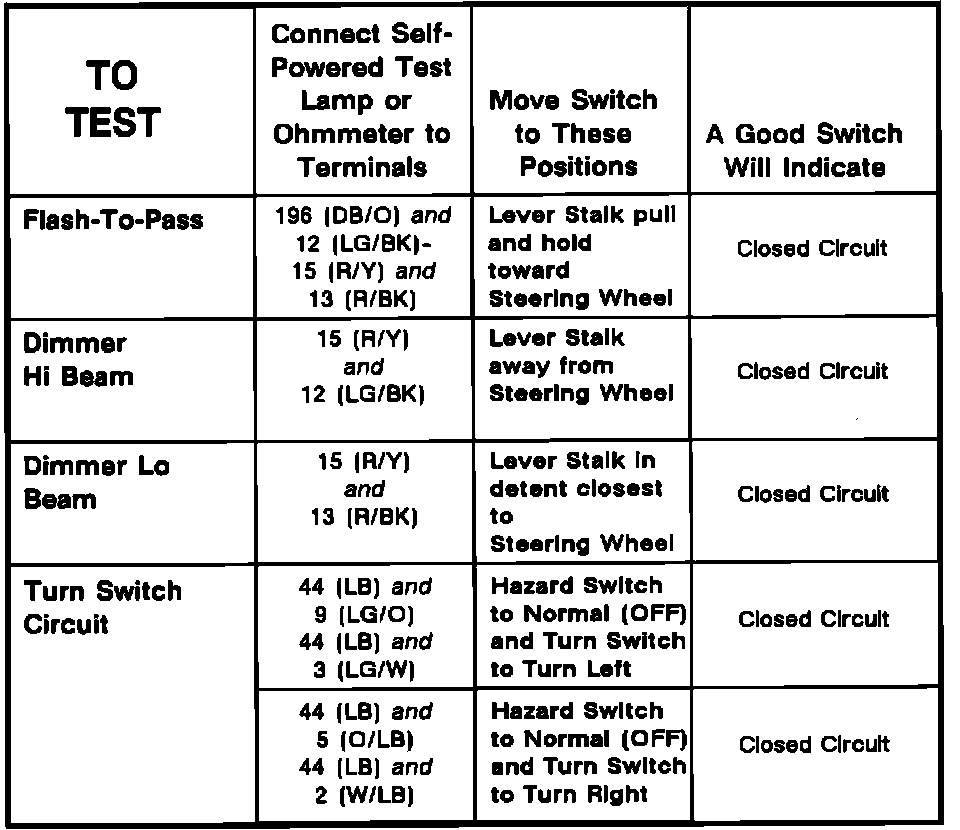

Component Testing Procedure:

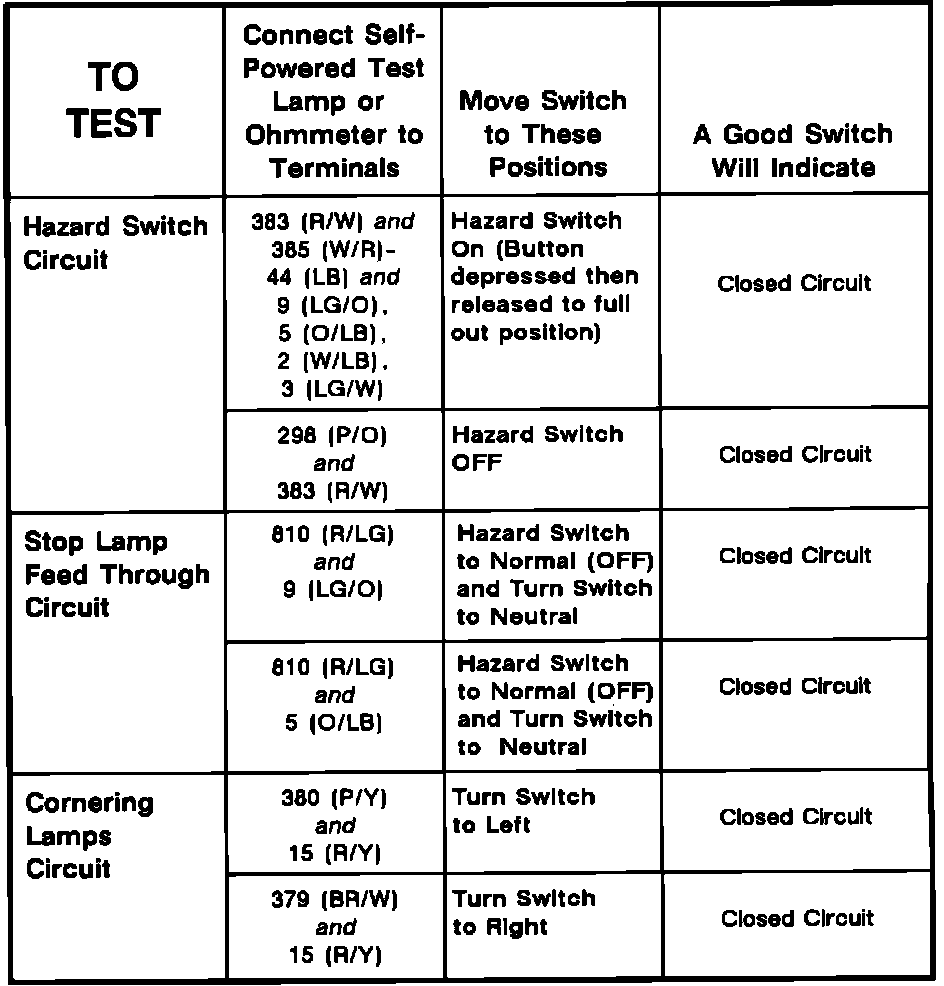

Component Testing Procedure:

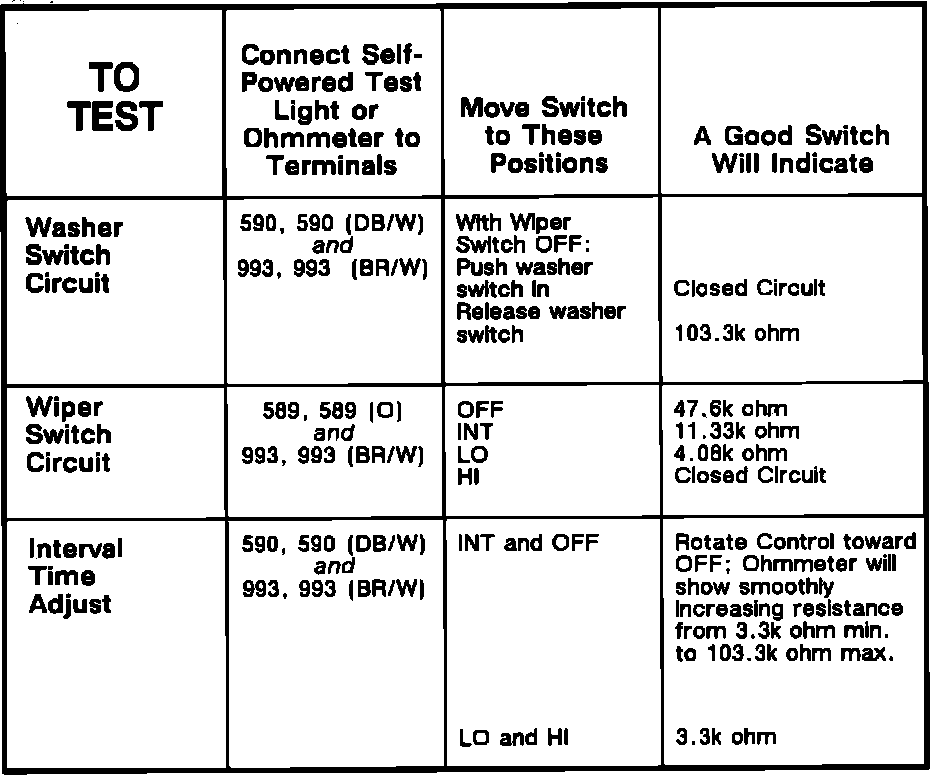

Component Testing Procedure:






TERMINAL IDENTIFICATION

Terminals:






SCHEMATIC

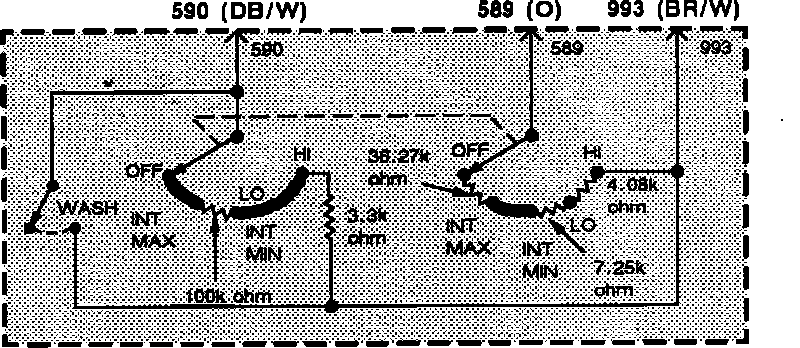

Schematic:

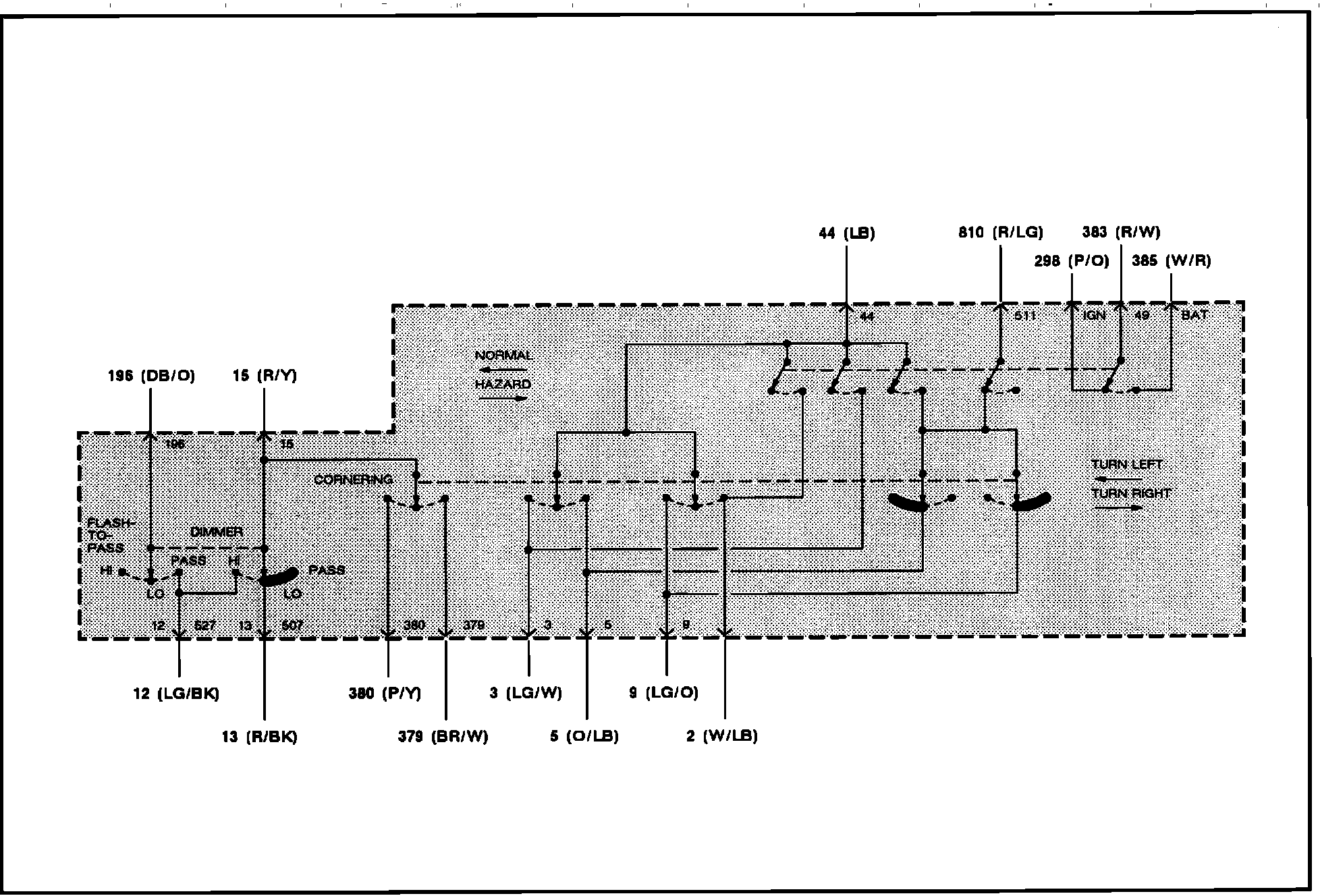

Schematic - Lamp Portion Of Multifunction Switch:
