Mercury
>>
1992
>>
Capri Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

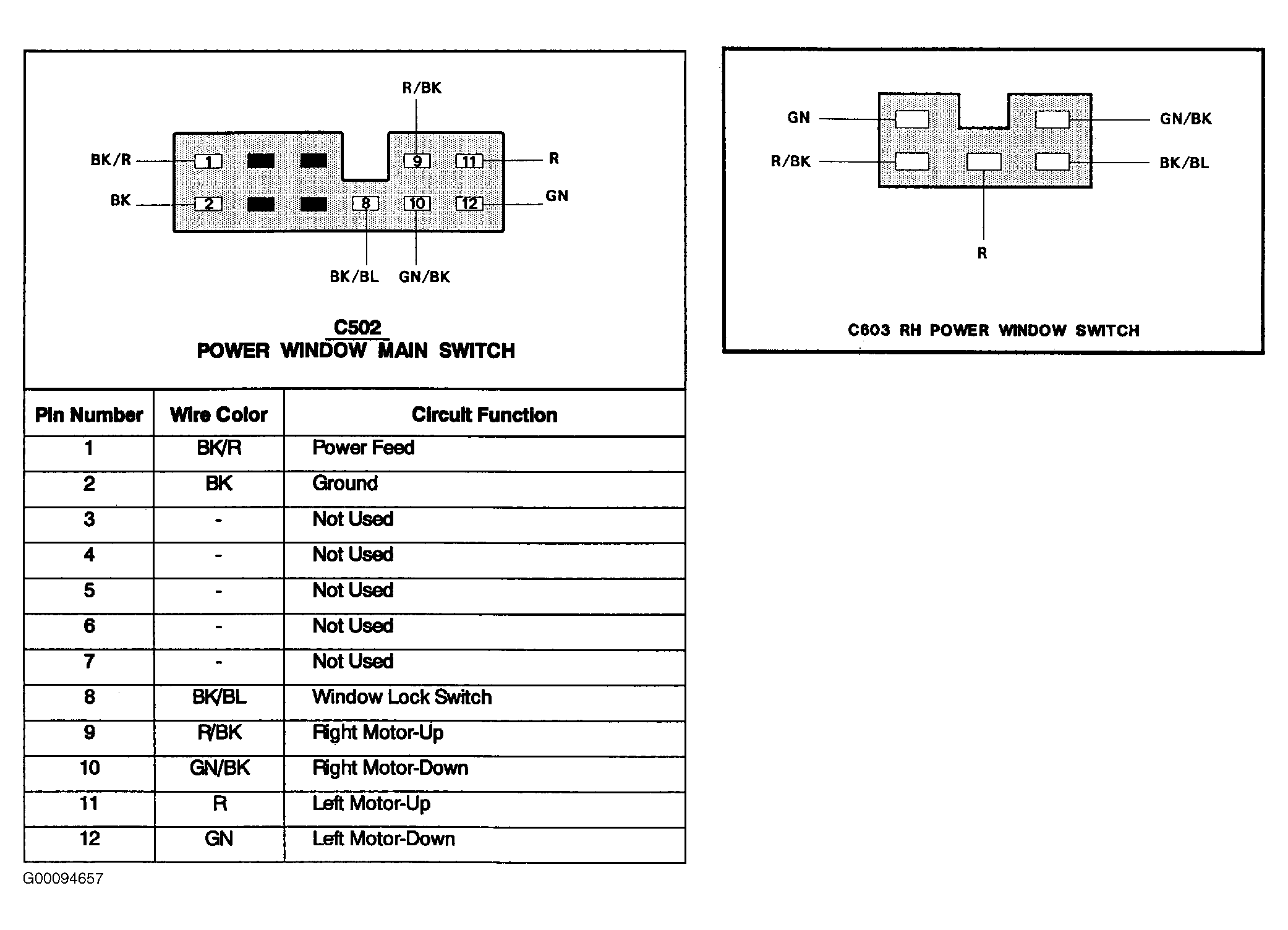

Fig 1: Power Window Connector Identification
Courtesy of FORD MOTOR CO.

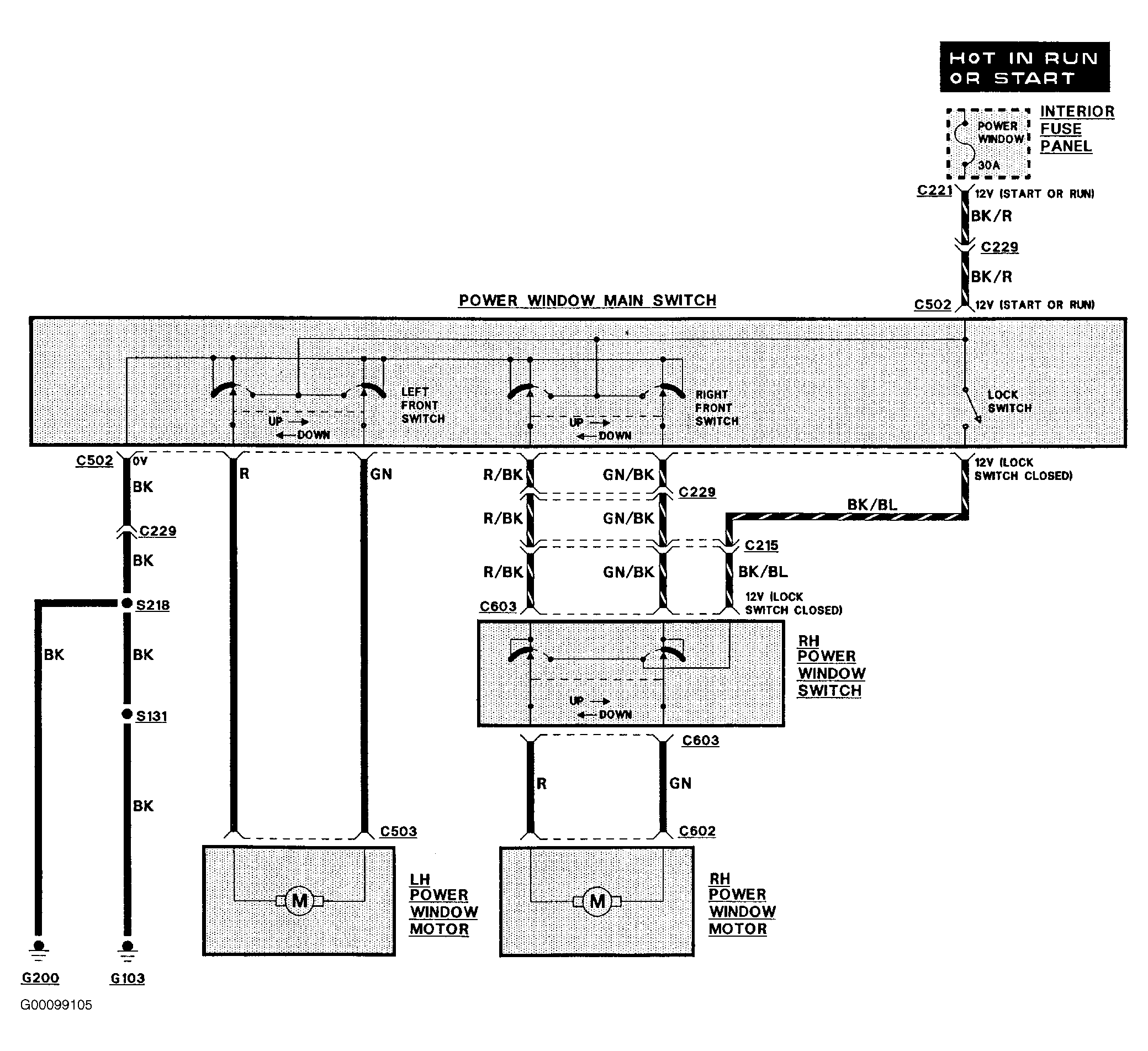

Fig 2: Power Window Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
