Engine Control Module

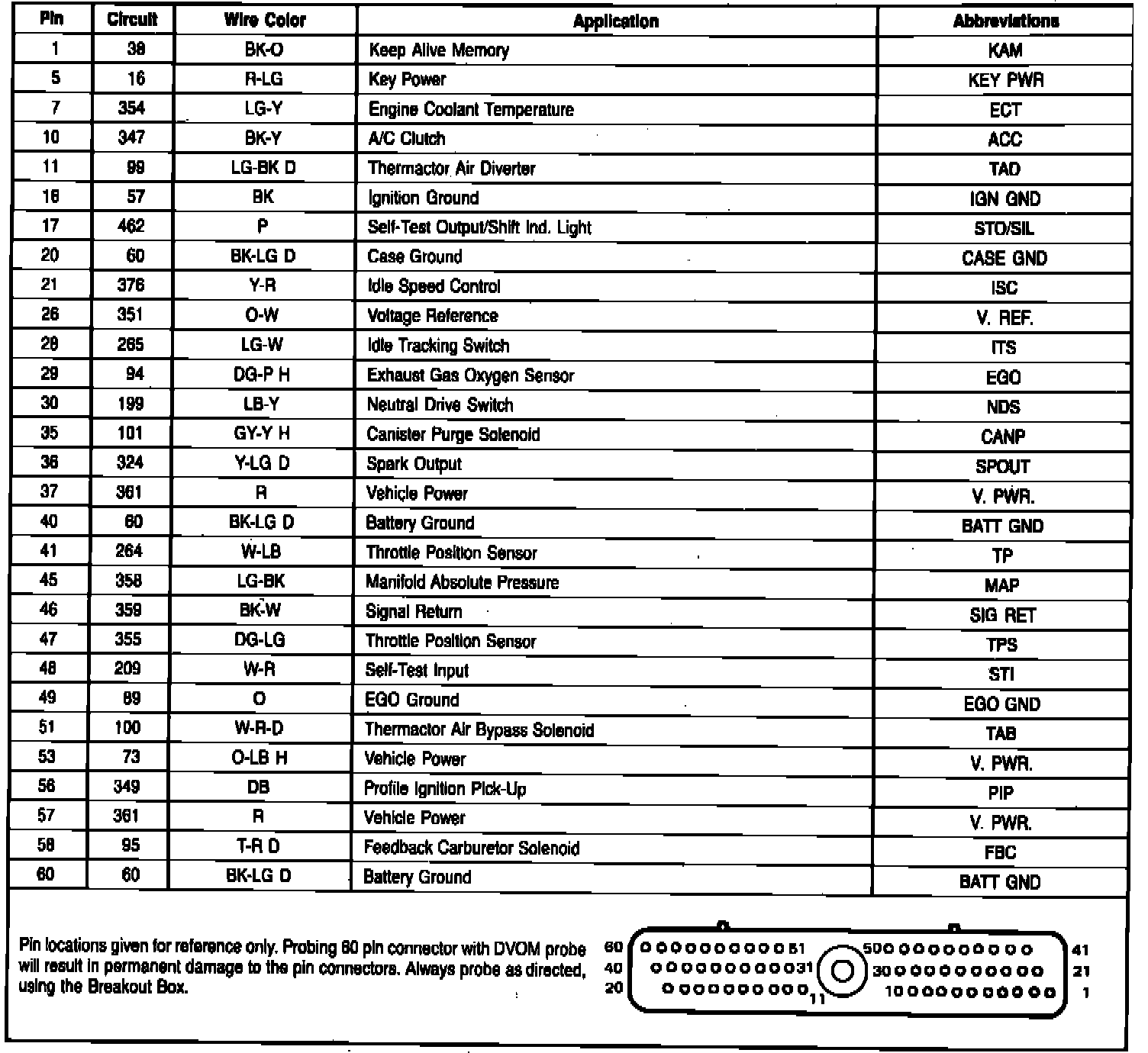

Fig. 59 EEC-IV Module Connector Pin usage. Overhead Cam Engine W/Feedback Carburetor:
