Home >> Mercury >> 1983 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

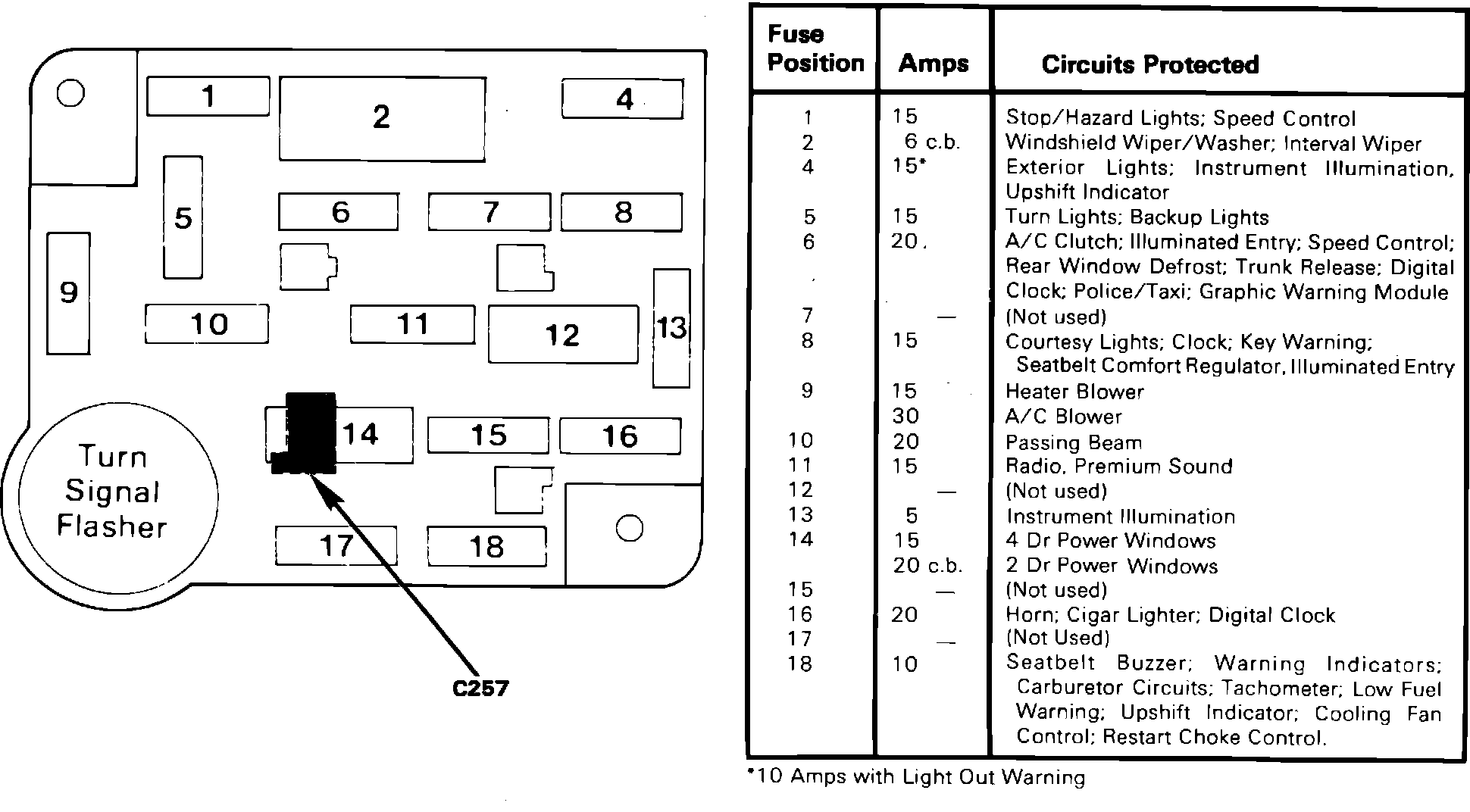

Fig. 1 Fuse Panel. 1983 Fairmont & Zephyr:
