Mercury
>>
1983
>>
Zephyr L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Carburetor
>>
Exploded View Non-Feedback Carburetor
Exploded View Non-Feedback Carburetor

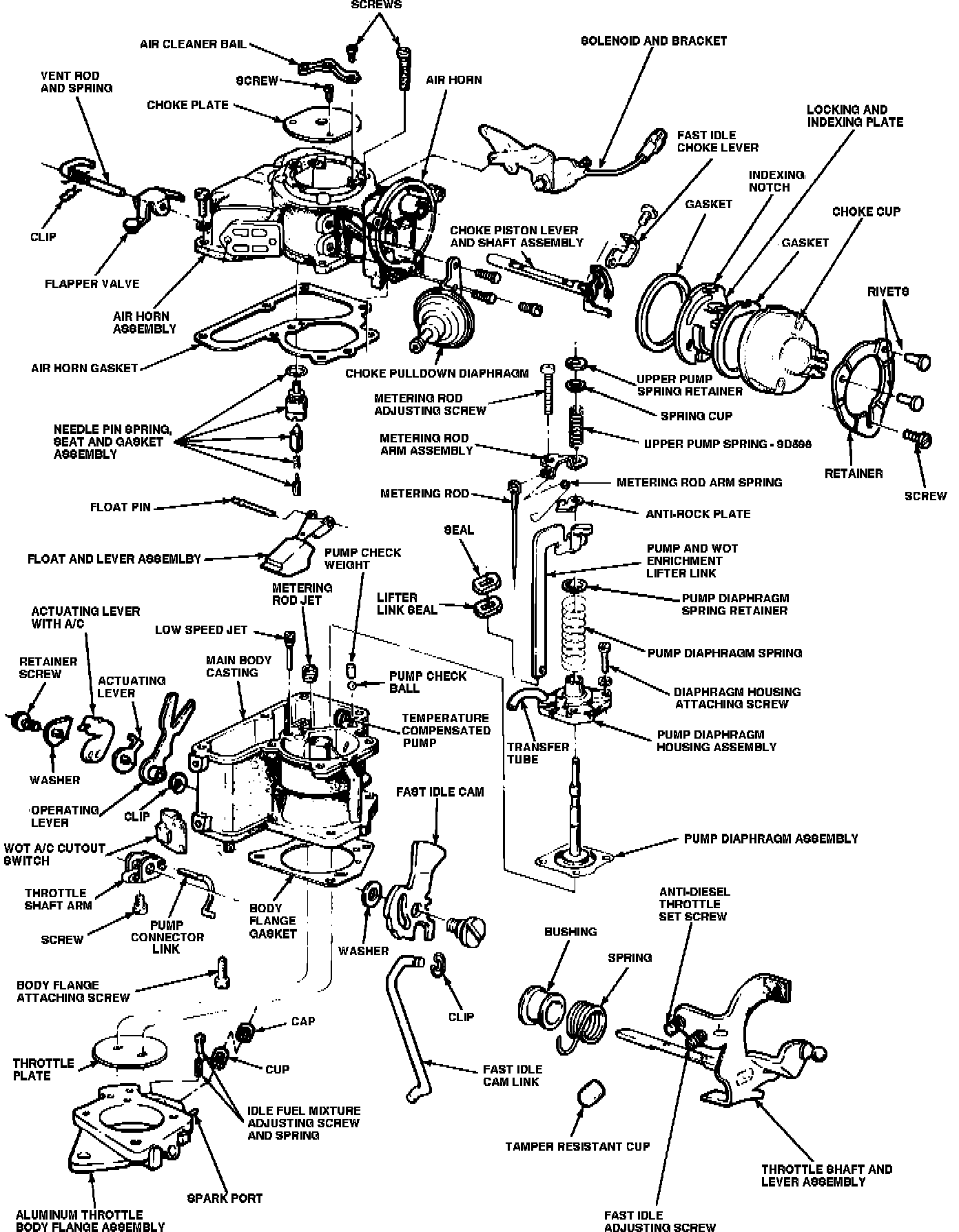

Fig. 1 Exploded view of Carter Model YF Series carburetor. 1983 - 86 models less feedback solenoid (1984 shown, 1983, 85, 86 similar):
