Home >> Mercury >> 1982 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Fig. 42 Calib. Code 2-12T-R0 Federal Exc. High Alt.

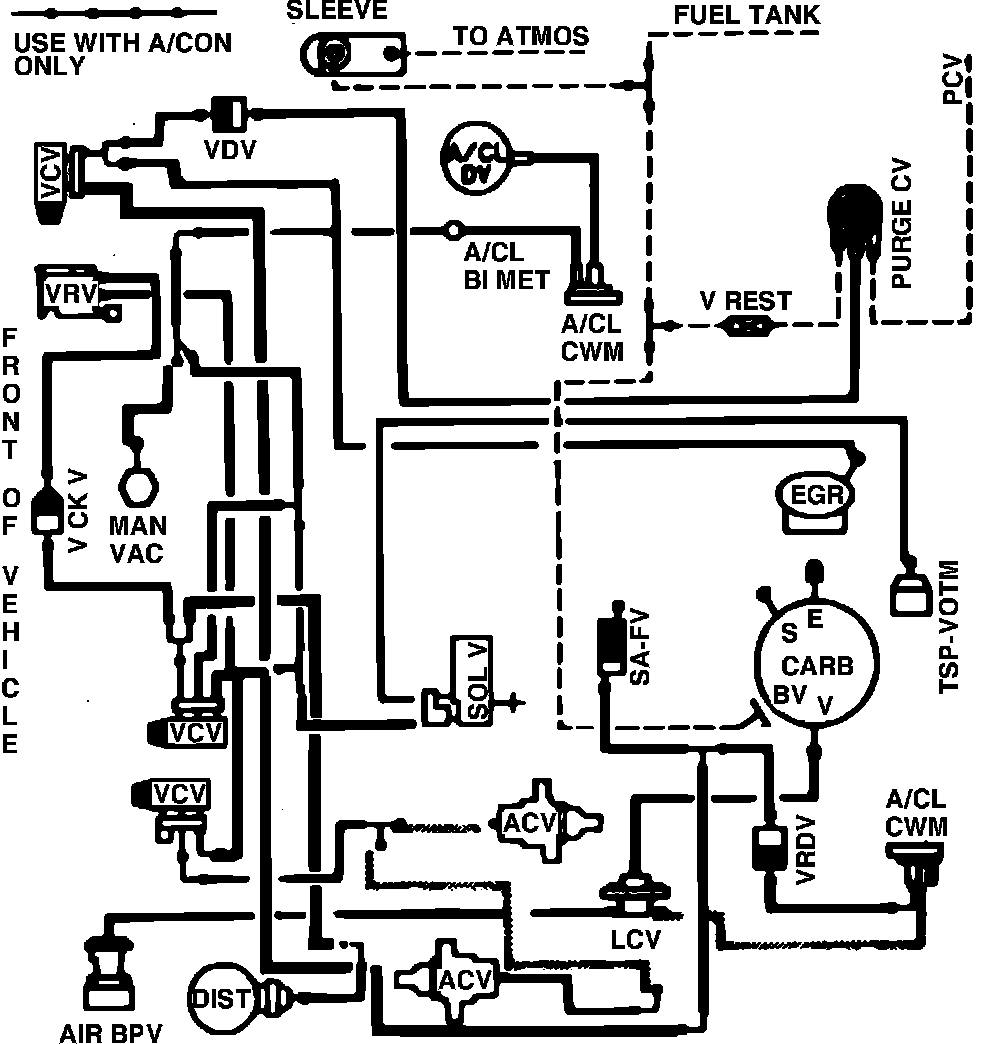

Fig. 42 Calib. Code 2-12T-R0 Federal Exc. High Alt.

Vacuum hose routing:
