A/T Torque Data

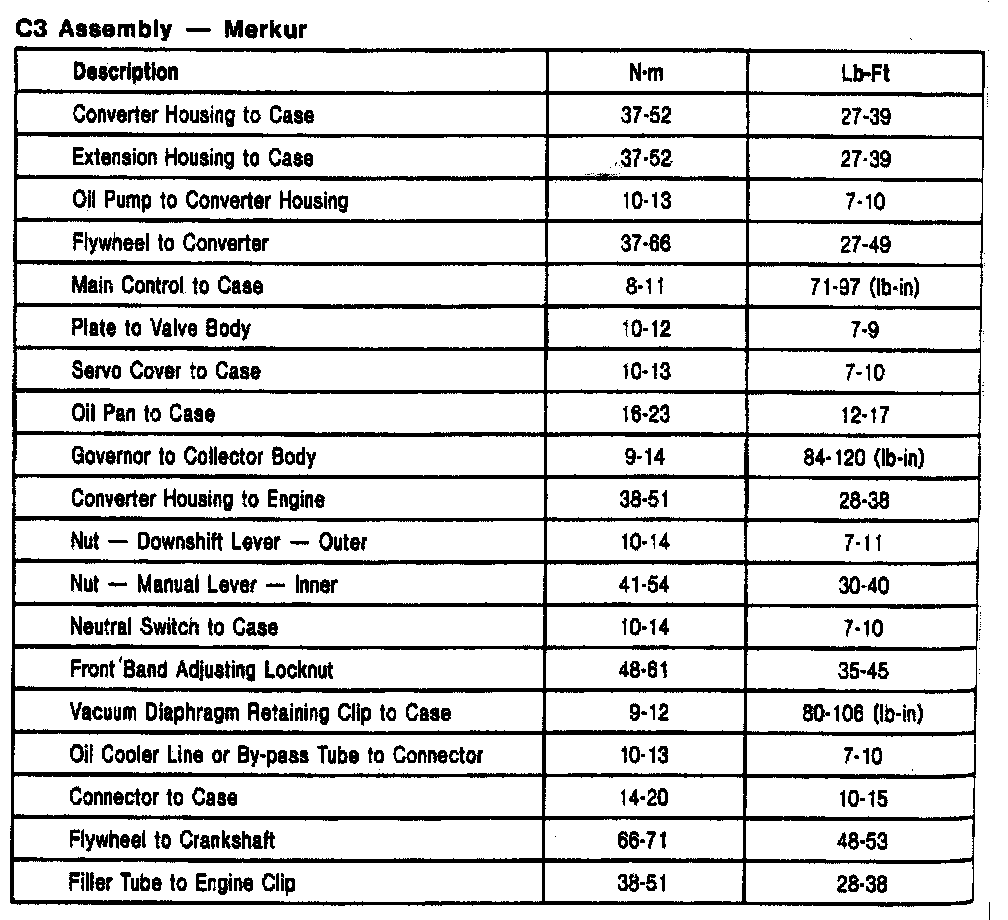

C-3 3-spd A/T, Transmission Assembly (Merkur):

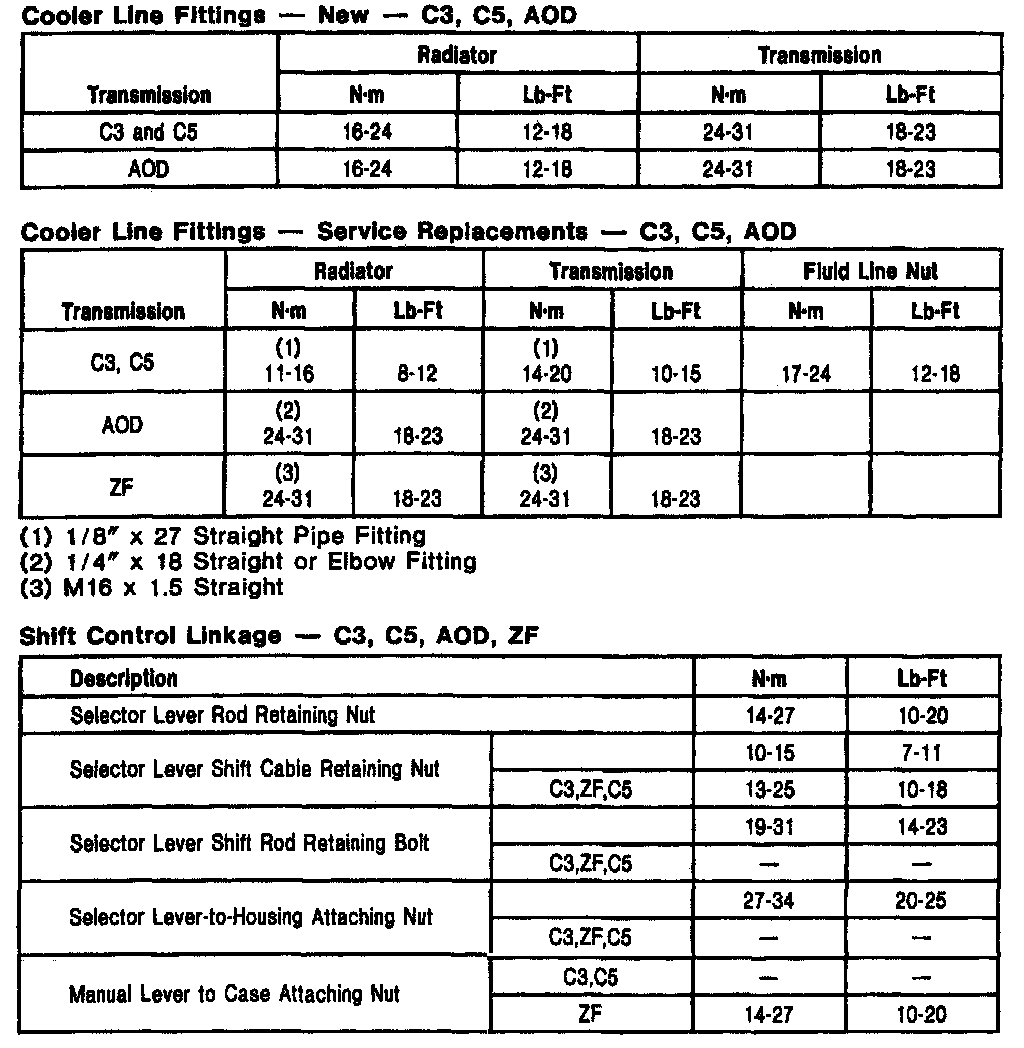

C-3 3-spd A/T, Cooler Line Fittings (ZF)/Control Linkage (ZF 4-spd A/T):

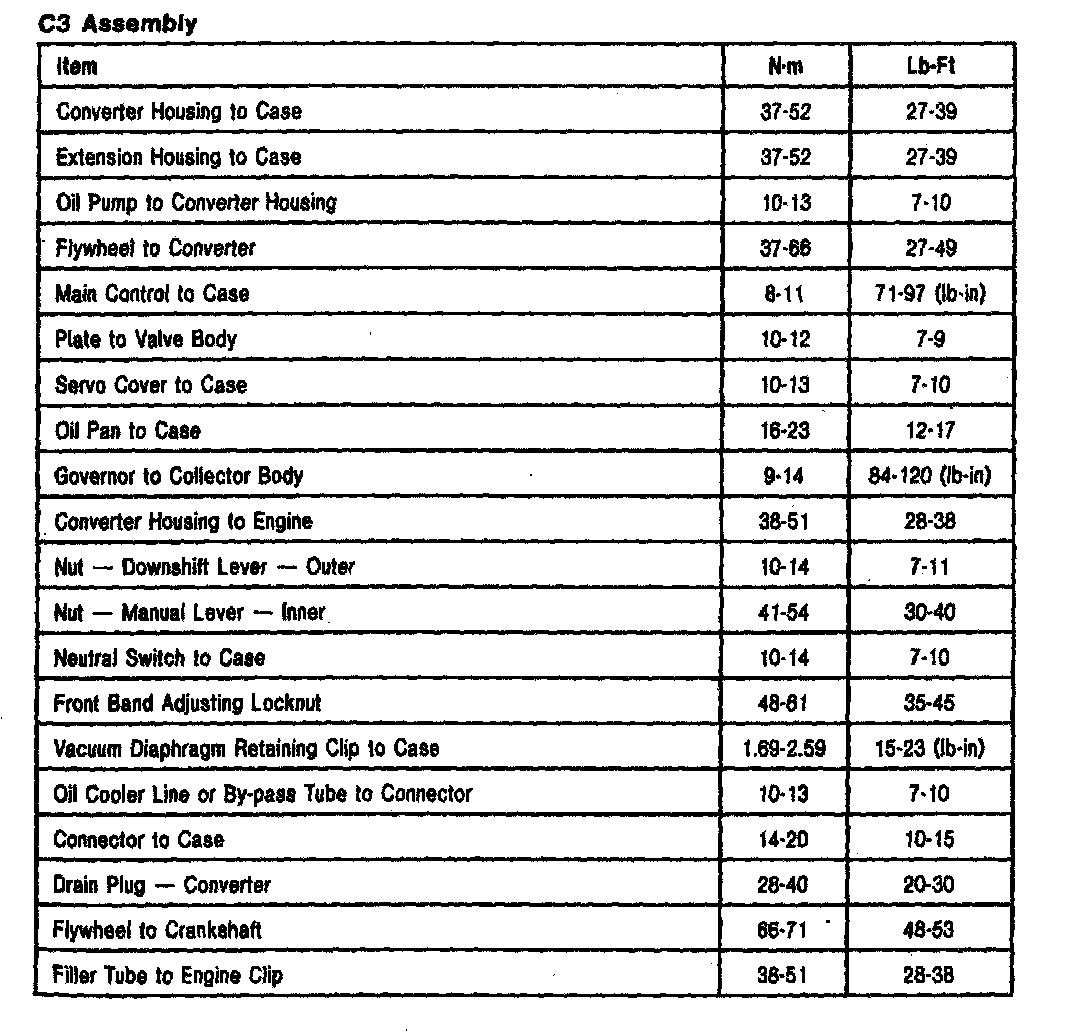

C-3 3-spd A/T, Transmission Assembly:
