Mercury
>>
1982
>>
Zephyr L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

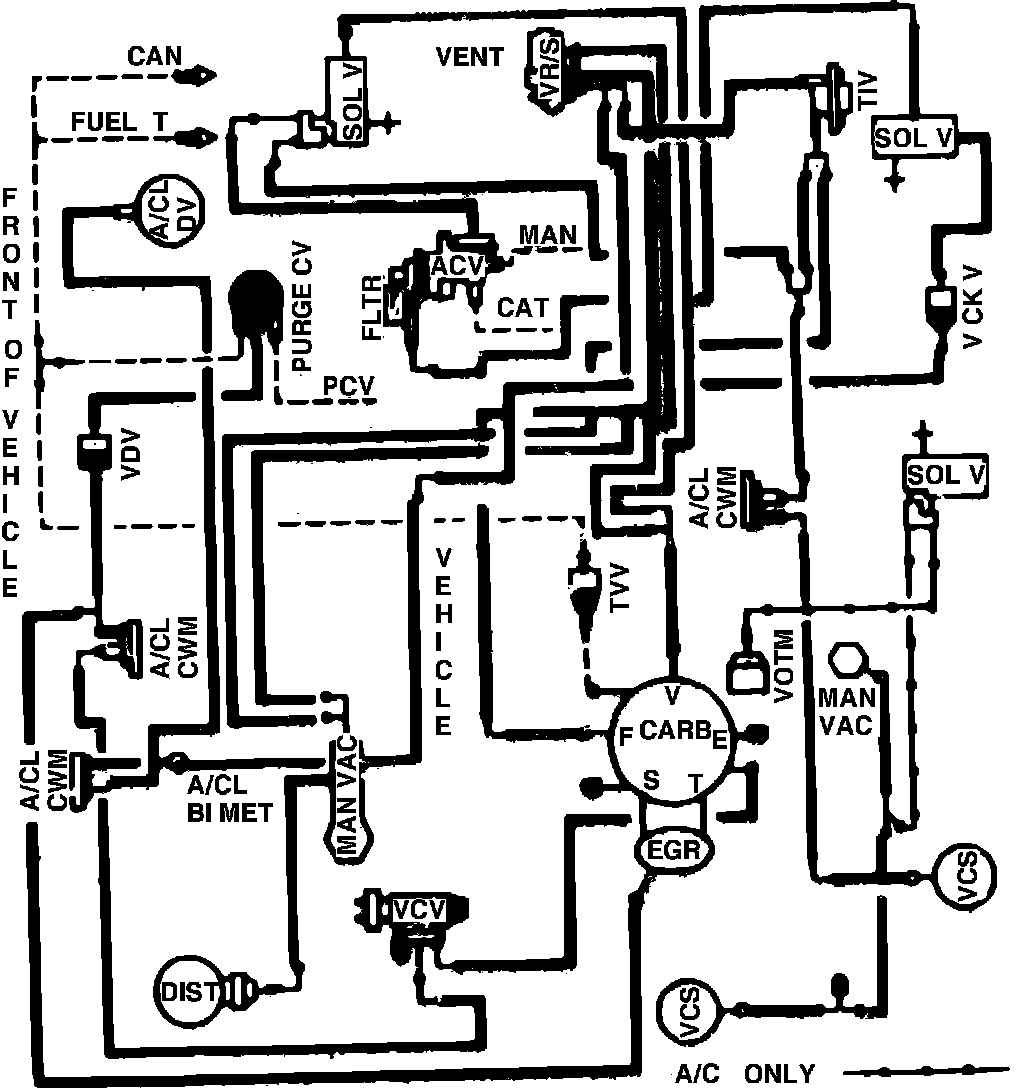

Fig. 34 Calib. Code 2-05N-R0 Calif.
Fig. 34 Calib. Code 2-05N-R0 Calif.
Vacuum hose routing:
