Charging System: Diagrams

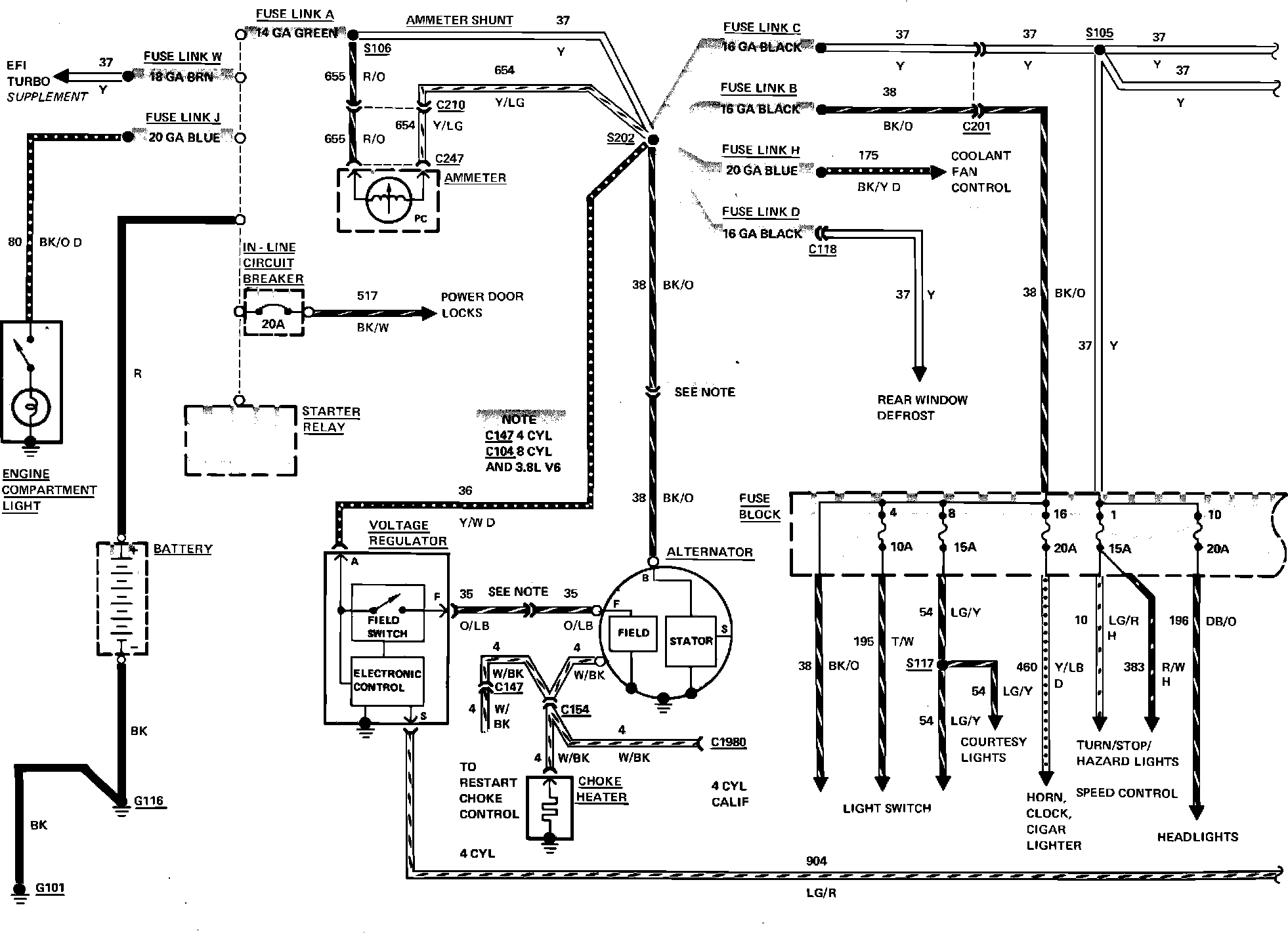

Fig. 19 Charging system & power distribution wiring circuit (Part 1 of 2). 1983 Capri & Mustang:

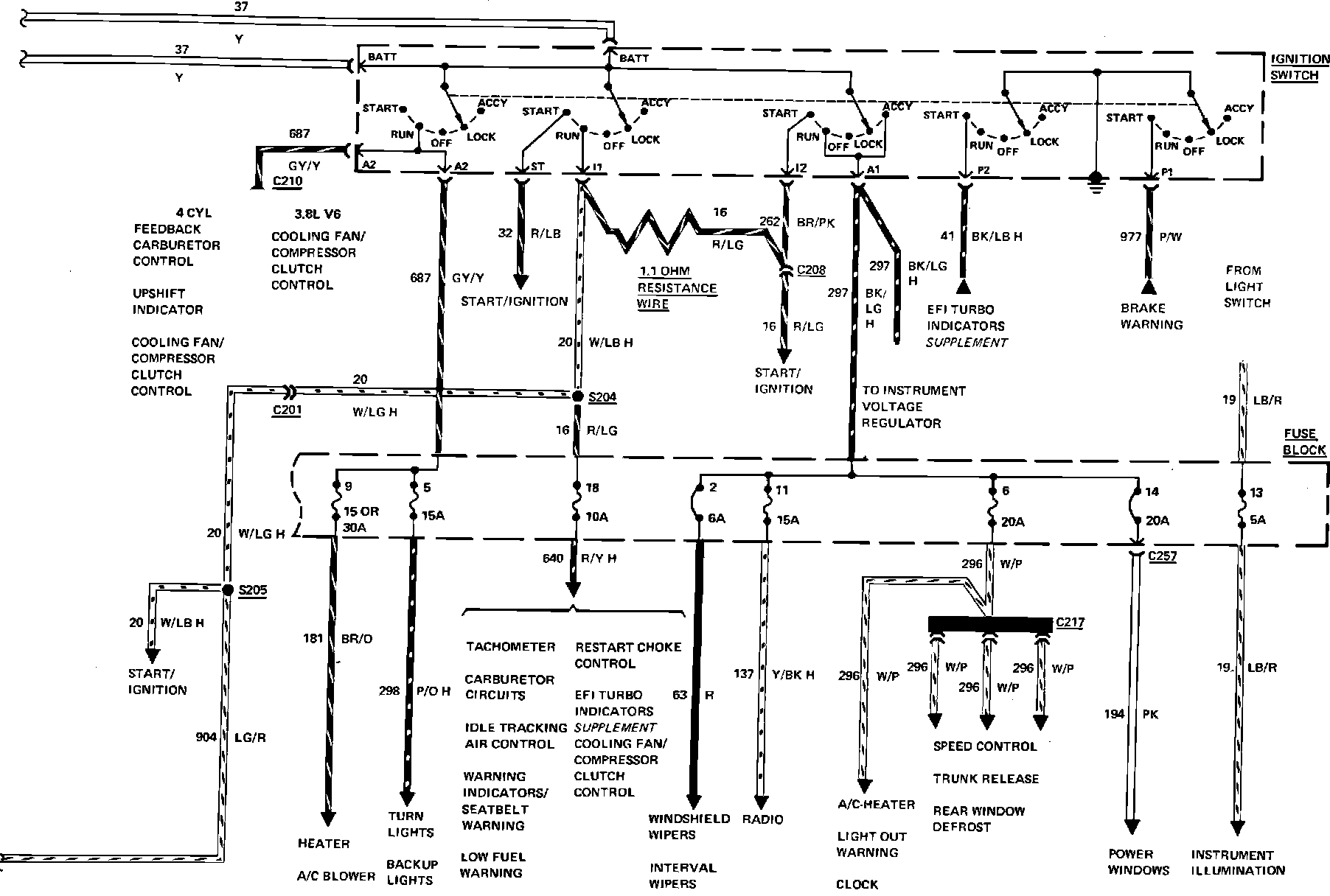

Fig. 19 Charging system & power distribution wiring circuit (Part 2 of 2). 1983 Capri & Mustang:
