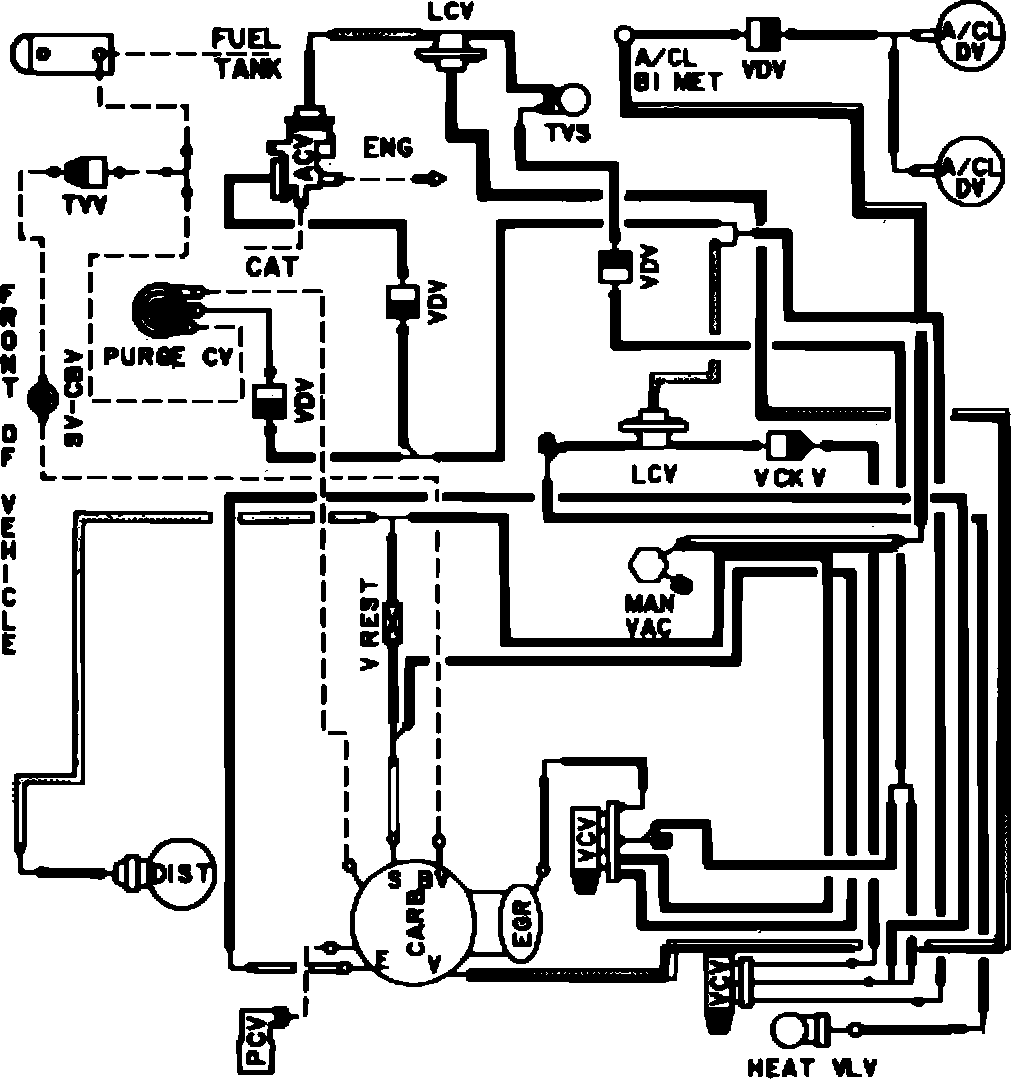

Fig. 79 Calib. Code 2-21Y-R10 High Alt.
Fig. 79 Calib. Code 2-21Y-R10 High Alt.
Vacuum hose routing:
