Wiring Diagrams

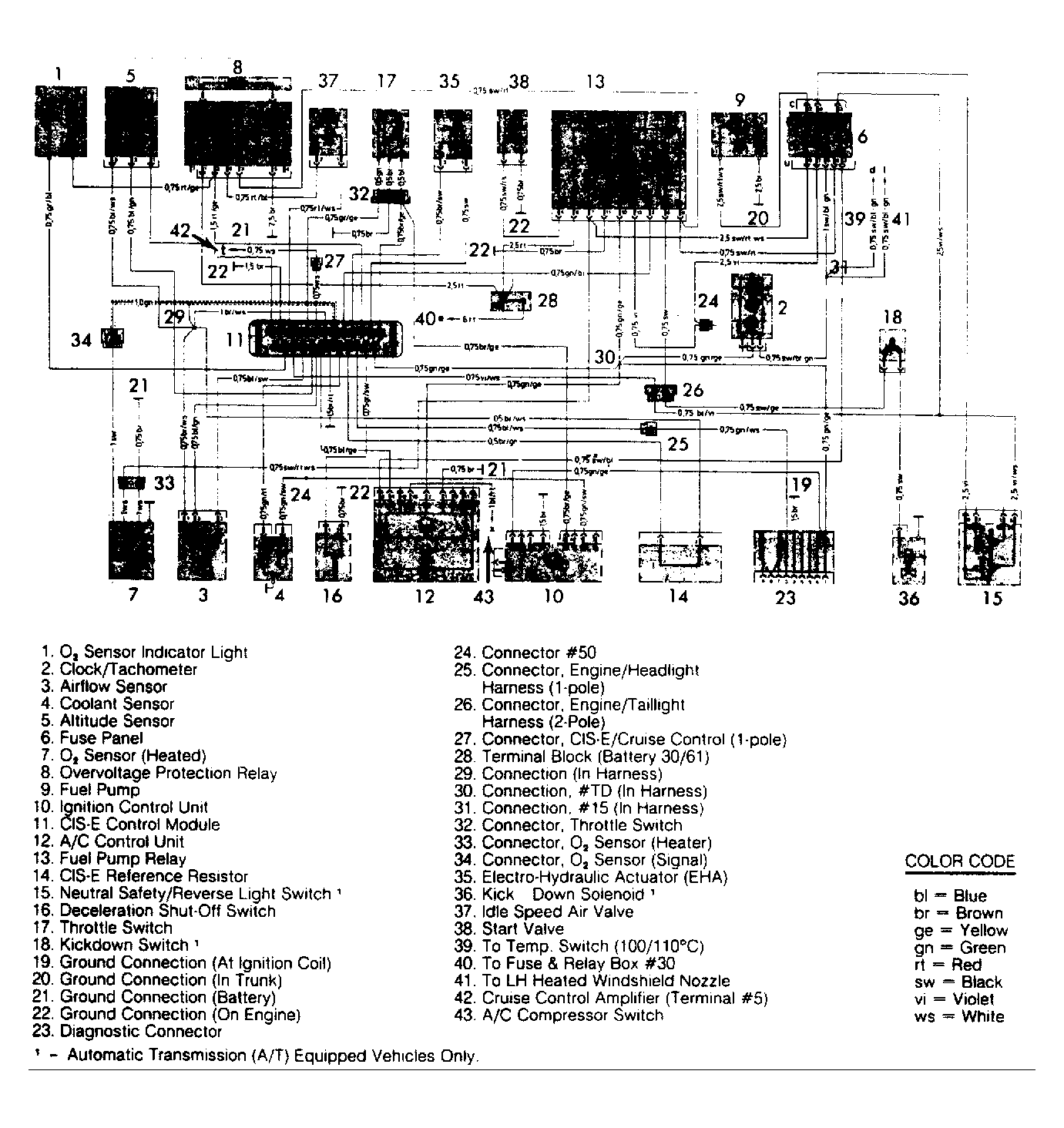

Fig 1: Wiring Diagram For Mercedes-Benz 190E 2.3L CIS-E Fuel Injection System
G61605

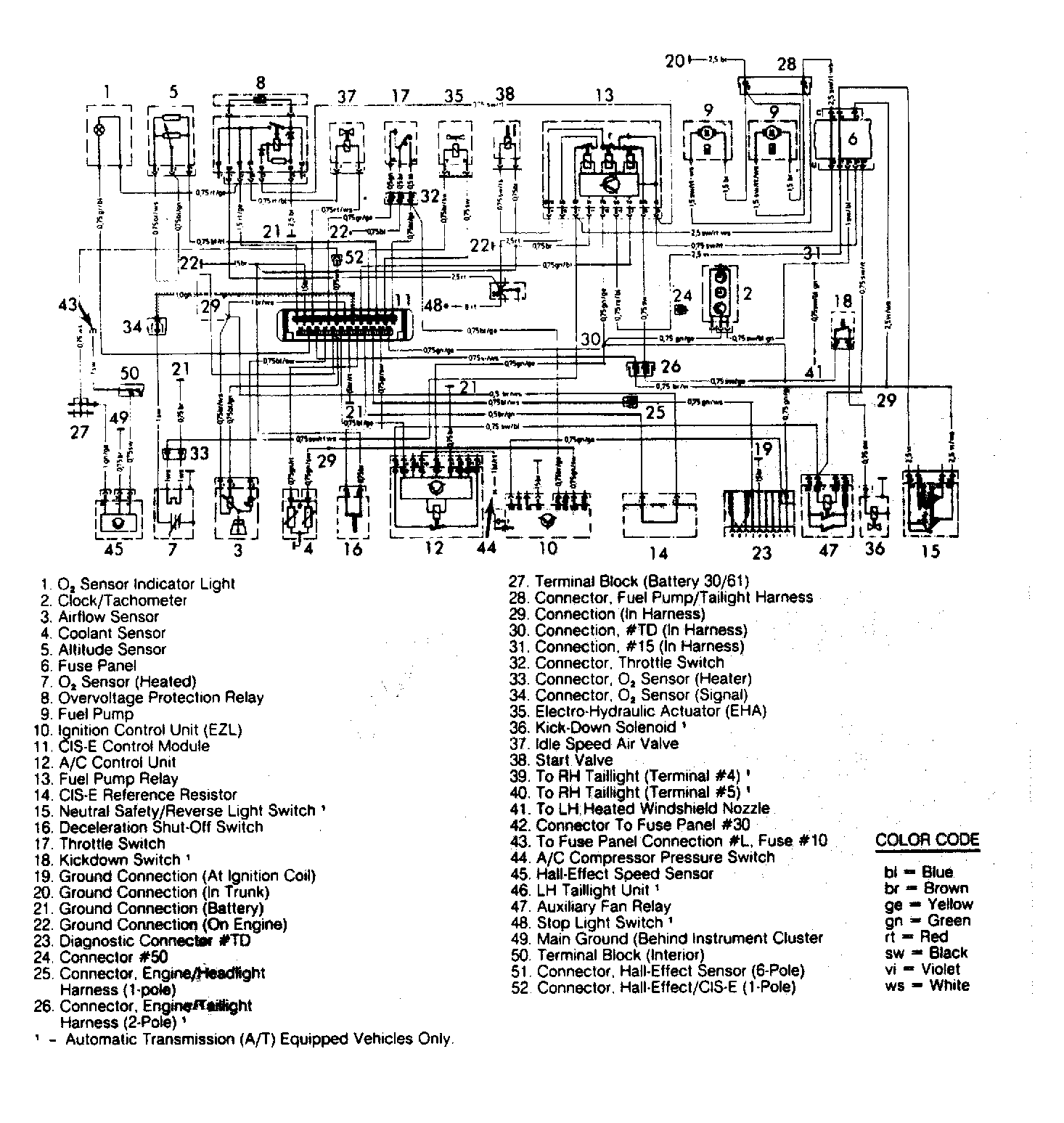

Fig 2: Wiring Diagram For Mercedes-Benz 190E 2.6L CIS-E Fuel Injection System
G61606

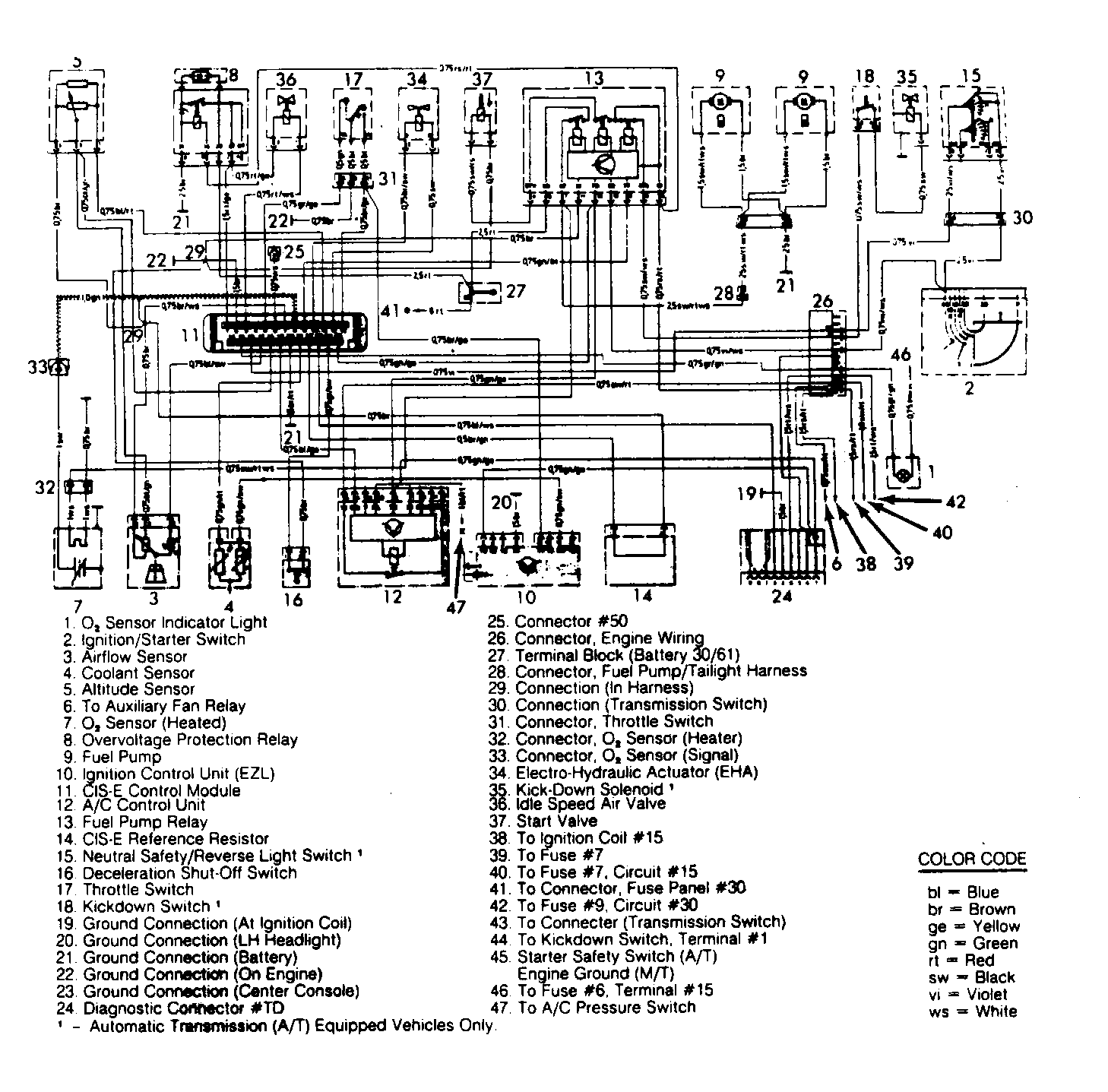

Fig 3: Wiring Diagram For Mercedes-Benz 260E CIS-E Fuel Injection System
G61607

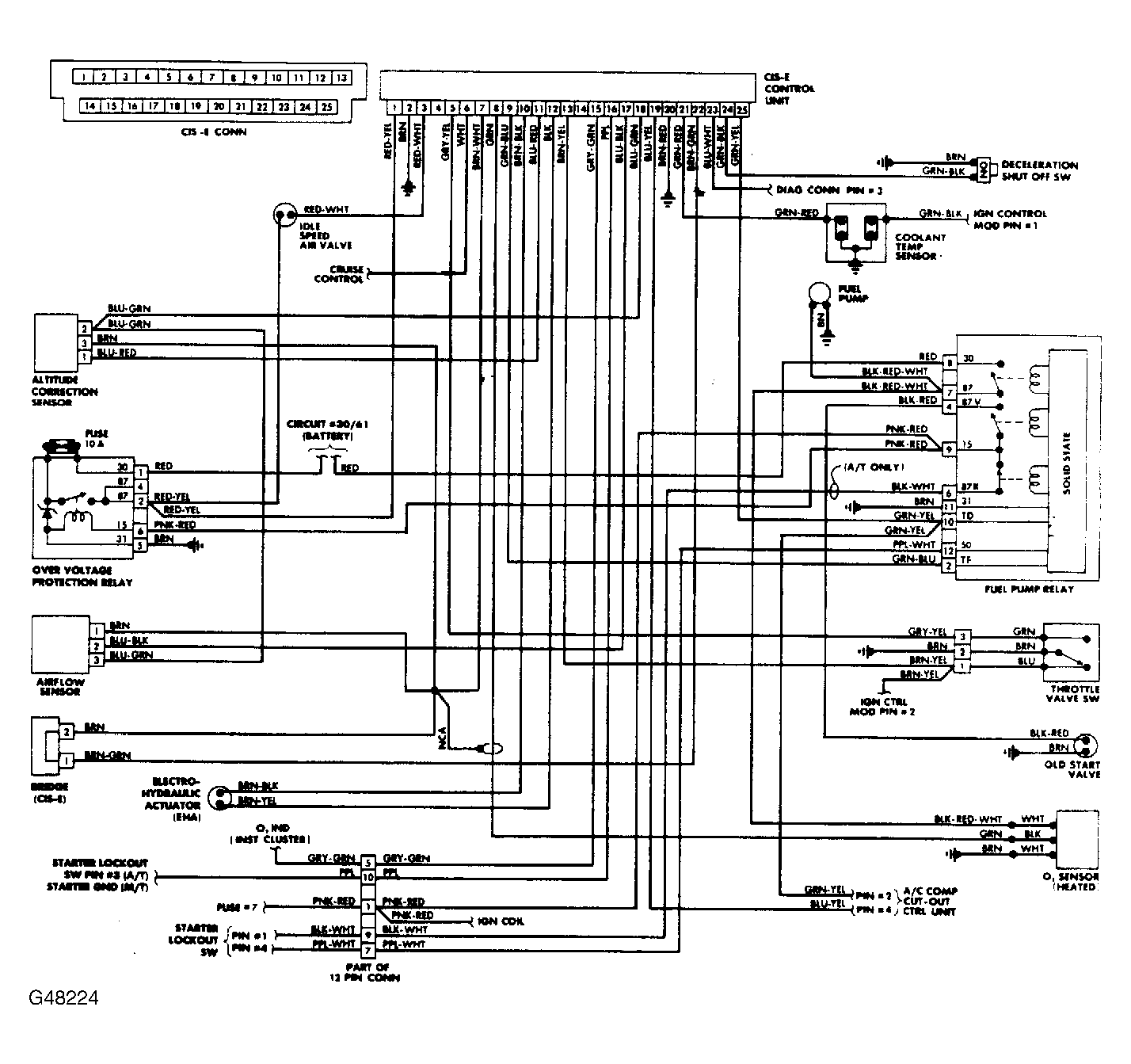

Fig 4: Wiring Diagram For Mercedes-Benz 300E CIS-E Fuel Injection System
G48224
Fig 5: Wiring Diagram For Mercedes-Benz EZL Ignition System
G61611
