SAS Control Module Removal/Installation
>>
Remove SAS Control Module
>>
Connector disconnection note
Connector disconnection note

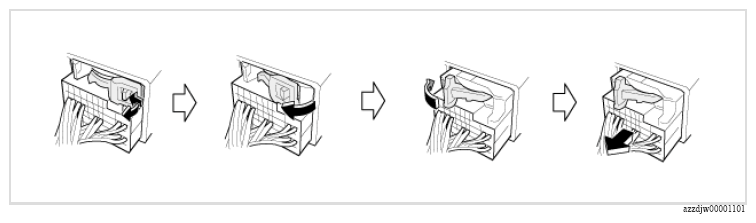

Disconnect the connector as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
