Remove Climate Control Unit: Notes

  1. Remove using the procedure shown in the figure below.

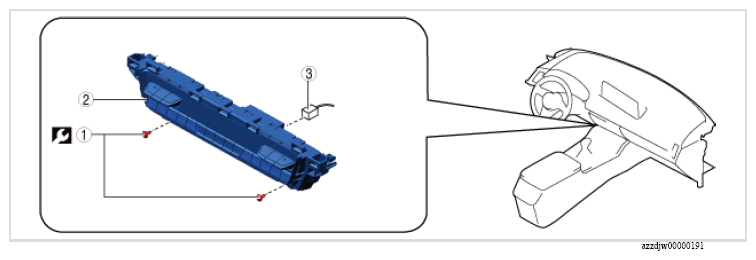

Fig 1: Climate Control Unit, Connector And Screws With Torque Specification
G16710320Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Screw 2.5 N.m {25 kgf.cm, 22 in.lb}
2 Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL NOTE )		 -
3 Connector -
