Remove Fuel Pump Control Module

Remove in the order indicated in the table.

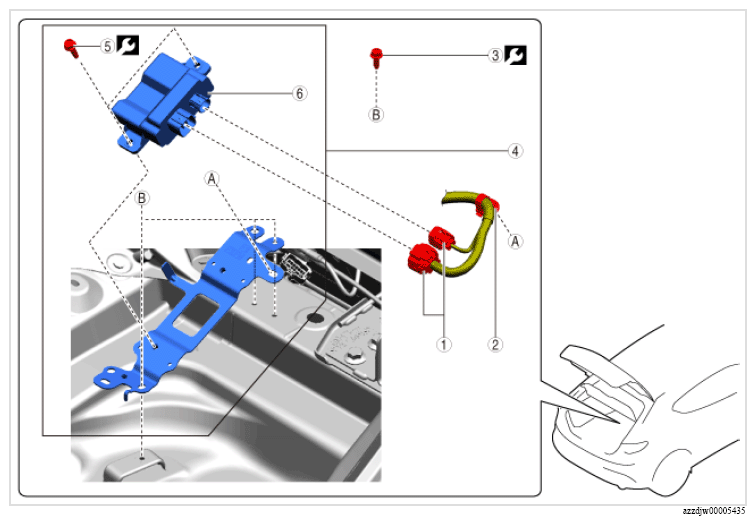

Fig 1: Fuel Pump Control Module Components Location With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Connector	-
2	Wiring harness clip	-
3	Bolt	11 N.m {110 kgf.cm, 95 in.lbf}
4	Fuel pump control module component	-
5	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
6	Fuel pump control module	-
