Remove Power Liftgate (PLG) Control Module

1. Remove using the procedure shown in the figure below.

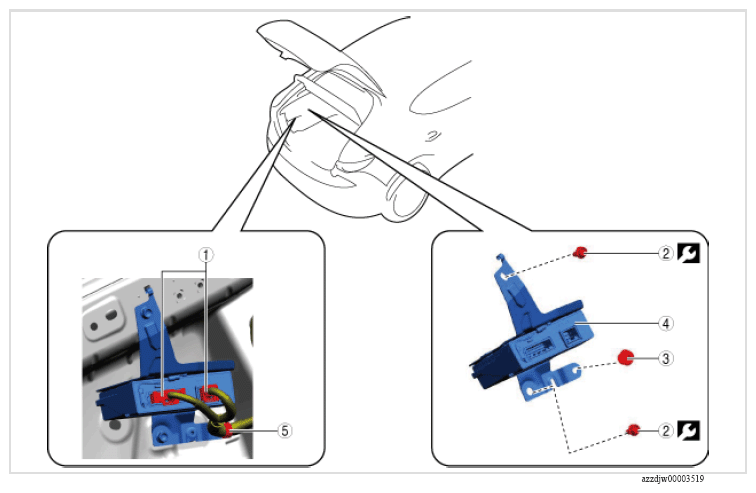

Fig 1: Power Liftgate Control Module Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Procedure	Part name
1	Connector	-
2	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
3	Clip	-
4	Power liftgate control module	-
5	Wiring harness clip	-
