Remove Auto Leveling Control Module/Adaptive Front Lighting System (AFS) Control Module/Adaptive LED Headlights Control Module

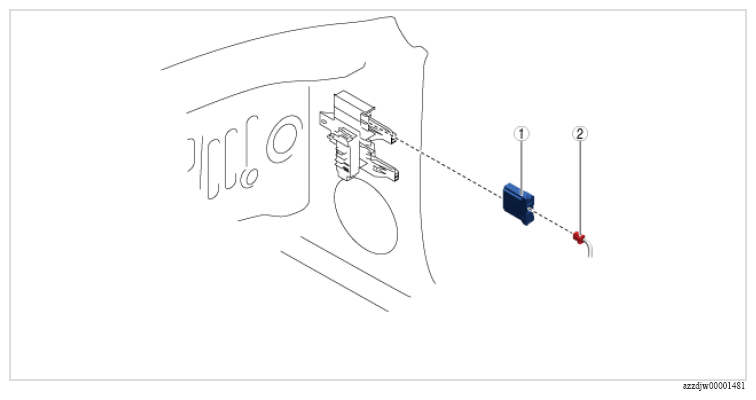

  1. Remove using the procedure shown in the figure.
    G16703556Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Auto leveling control module/Adaptive front lighting system (AFS) control module/Adaptive LED headlights control module
2 Connector
