Procedure Not Using M-MDS
- Empty the vehicle except for the jack and vehicle tools.
- Adjust the tire pressure to the standard. (See WHEEL AND TIRE SPECIFICATION )
- Move the vehicle to level ground.
- Switch the main power ON (READY off or on).NOTE:
- The LED headlight warning light continues flashing during the first initial setting, however, continue the work because it does not indicate an improper procedure.

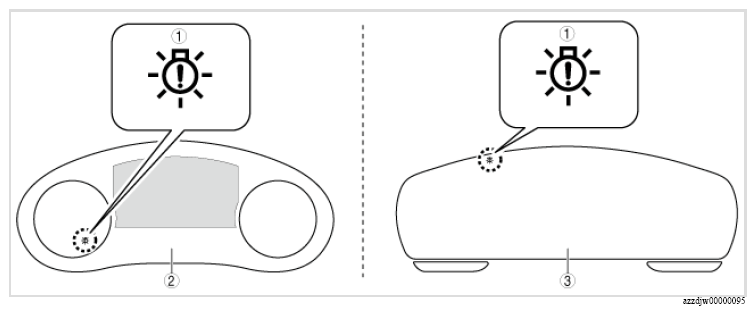

SYMBOL AND CONTENT DESCRIPTIONSymbol Content Applicable condition 1 LED headlight warning light Continuous 2 Instrument cluster Type A 3 Instrument cluster Type B - Using a jumper wire, connect DLC-2 terminals B and J (ground) 3 times at 0.5-1.5 s intervals as shown in the figure.SYMBOL AND CONTENT DESCRIPTION
Symbol Content 1 DLC-2 2 0.5-1.5 s 3 Connection 4 Not connected CAUTION:- If the terminals are mistakenly connected, vehicle damage or fire could occur. When connecting with the jumper wire, thoroughly verify what terminals are being connected to prevent a miss-connection.
- Verify the LED headlight warning light.
- The initial setting is completed if the LED headlight warning light flashes 3 times every 0.25 s and turns off as shown in the figure. Go to the next step.
SYMBOL AND CONTENT DESCRIPTIONSymbol Content 1 0.25 s 2 ON 3 OFF - If the LED headlight warning light flashes at 0.25 s intervals, the procedure may have been performed incorrectly. Repeat the procedure from Step 4.
- If the LED headlight warning light turns on, the headlight auto leveling system may have a malfunction. Perform DTC inspection. (Refer to [DTC INSPECTION
] in the appropriate troubleshooting information
).
- Repair or replace the malfunctioning location, then repeat the procedure from Step 4.
- Perform the headlight aiming adjustment. (See HEADLIGHT AIMING )
