Active Driving Display Disassembly/Assembly

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the active driving display is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the active driving display, perform the procedure on a workbench and clean cloth being careful not to drop it.

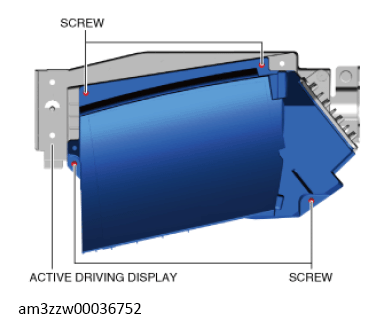

  1. Remove the screws.
    G13179932Courtesy of MAZDA MOTORS CORP.

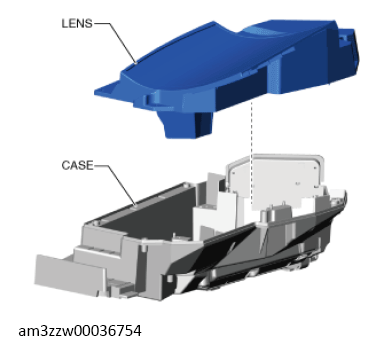

  2. Remove the lens.
    G13179933Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
