Handling Spare Tire: Notes

Remove the Spare Tire

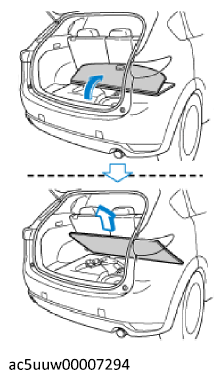

1. Open the luggage board, and remove it.

   Courtesy of MAZDA MOTORS CORP.

2. For vehicles equipped with a subwoofer, uncouple the connector.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • Extra strength may be required to uncouple the connector. Be sure to squeeze the tab firmly.
3. For vehicles equipped with a subwoofer, loosen the hold-down bolt and remove the woofer and spare tire.

   Courtesy of MAZDA MOTORS CORP.

4. For vehicles not equipped with a subwoofer, turn the spare tire hold-down bolt counterclockwise and remove the spare tire.

   Courtesy of MAZDA MOTORS CORP.
