Fuel Distributor Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

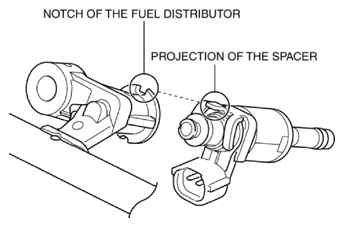

- Install the fuel distributor to the fuel injectors while aligning the projection of the spacer to the notch of the fuel distributor.
- Temporarily tighten the fuel distributor installation bolts until their heads contact the fuel distributors.

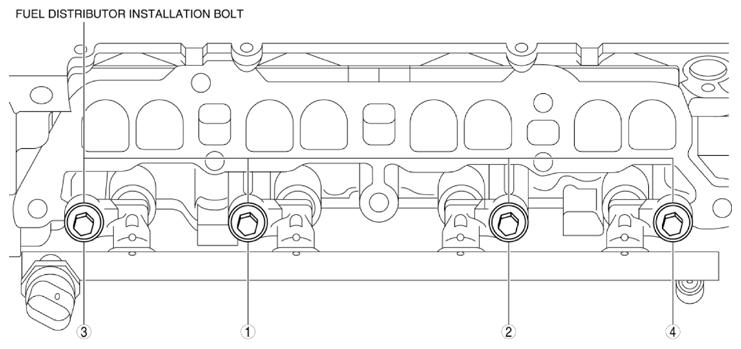

- Turn the fuel distributor installation bolts a half a turn in the order shown in the figure.
- Turn the fuel distributor installation bolts another half a turn in the order shown in the figure (one turn including the half turn in Step 3).
- Tighten the fuel distributor installation bolts in the order shown in the figure.
Fuel distributor installation bolt tightening torque
- 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
