Automatic Transaxle Control System Wiring Diagram

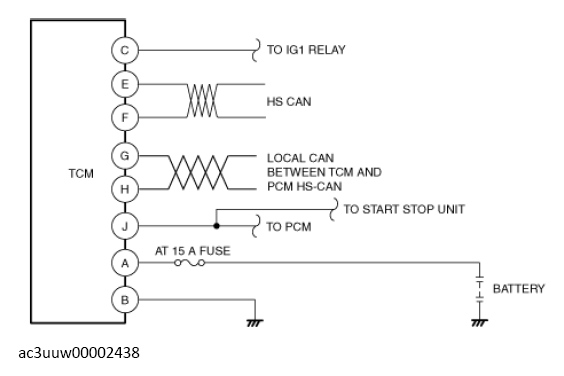

Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
