Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

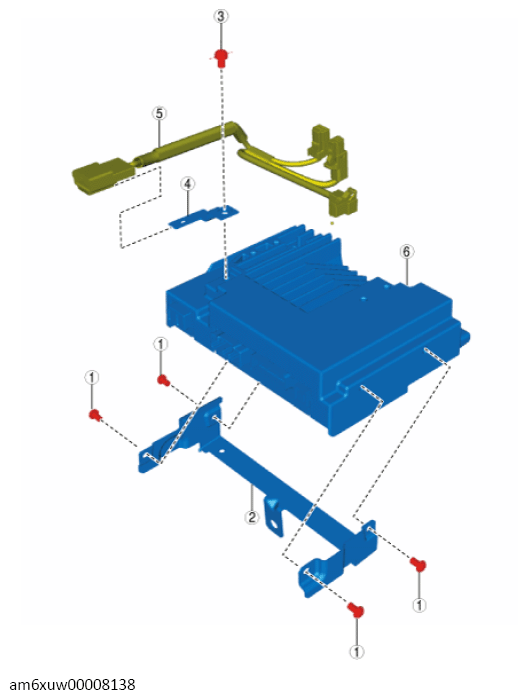

- Disassemble in the order indicated in the table.PARTS DESCRIPTION
1 Screw A 2 Bracket A 3 Screw B 4 Bracket B 5 Short-cord
(See SHORT-CORD ASSEMBLY NOTE .)6 Connectivity master unit (CMU) - Assemble in the reverse order of disassembly.
