Console Side Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

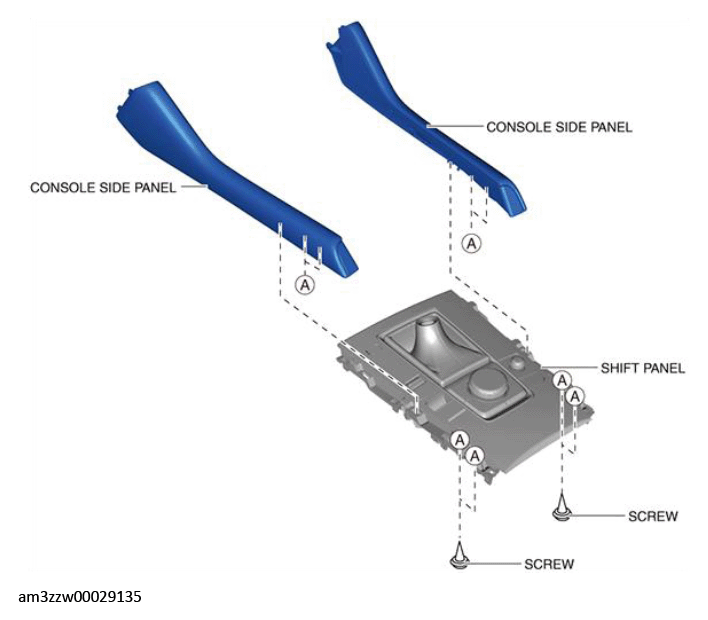

  3. Remove the screws.
    G13179370Courtesy of MAZDA MOTORS CORP.
  4. Remove the console side panel from the shift panel.
  5. Install in the reverse order of removal.
