LED Illumination Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)

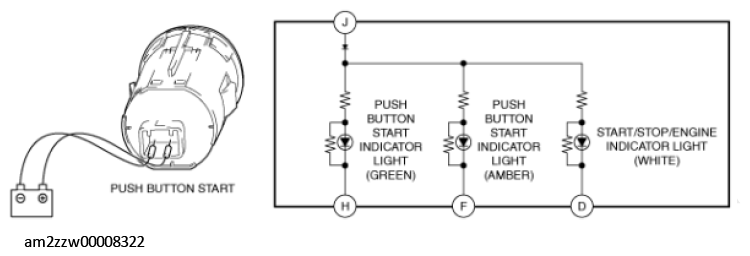

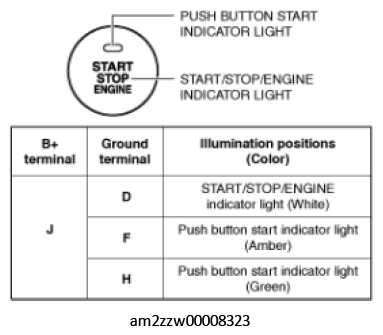

Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
