Third-Row Seat Back Frame Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

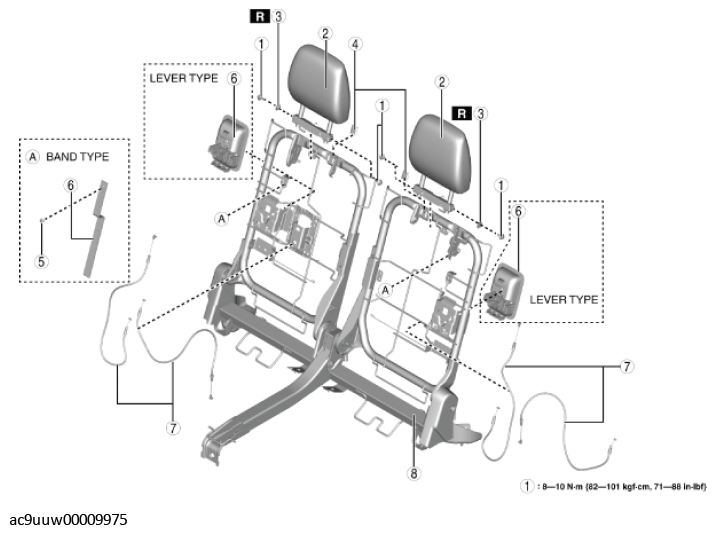

    Fig 1: Third-Row Seat Back Frame And Related Components With Torque Specifications
    G11432603Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    2 Headrest
    3 Bush
    4 Rubber
    5 Screw
    6 Band(band type) Lever(lever type)
    7 Cable
    8 Third-row seat back frame
  2. Assemble in the reverse order of disassembly.
