Intake Manifold Removal Note

  1. Remove the MAP sensor/IAT sensor No. 2. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
  2. Disconnect the harness clip from the intake manifold as shown in the figure.

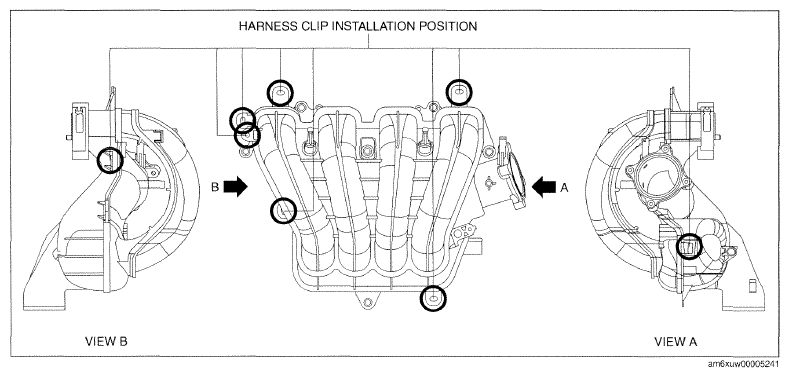

    Fig 1: Locating Harness Clip Installation Position
    G09786768Courtesy of MAZDA MOTORS CORP.
  3. Remove the intake manifold.
