Fuse: Locations

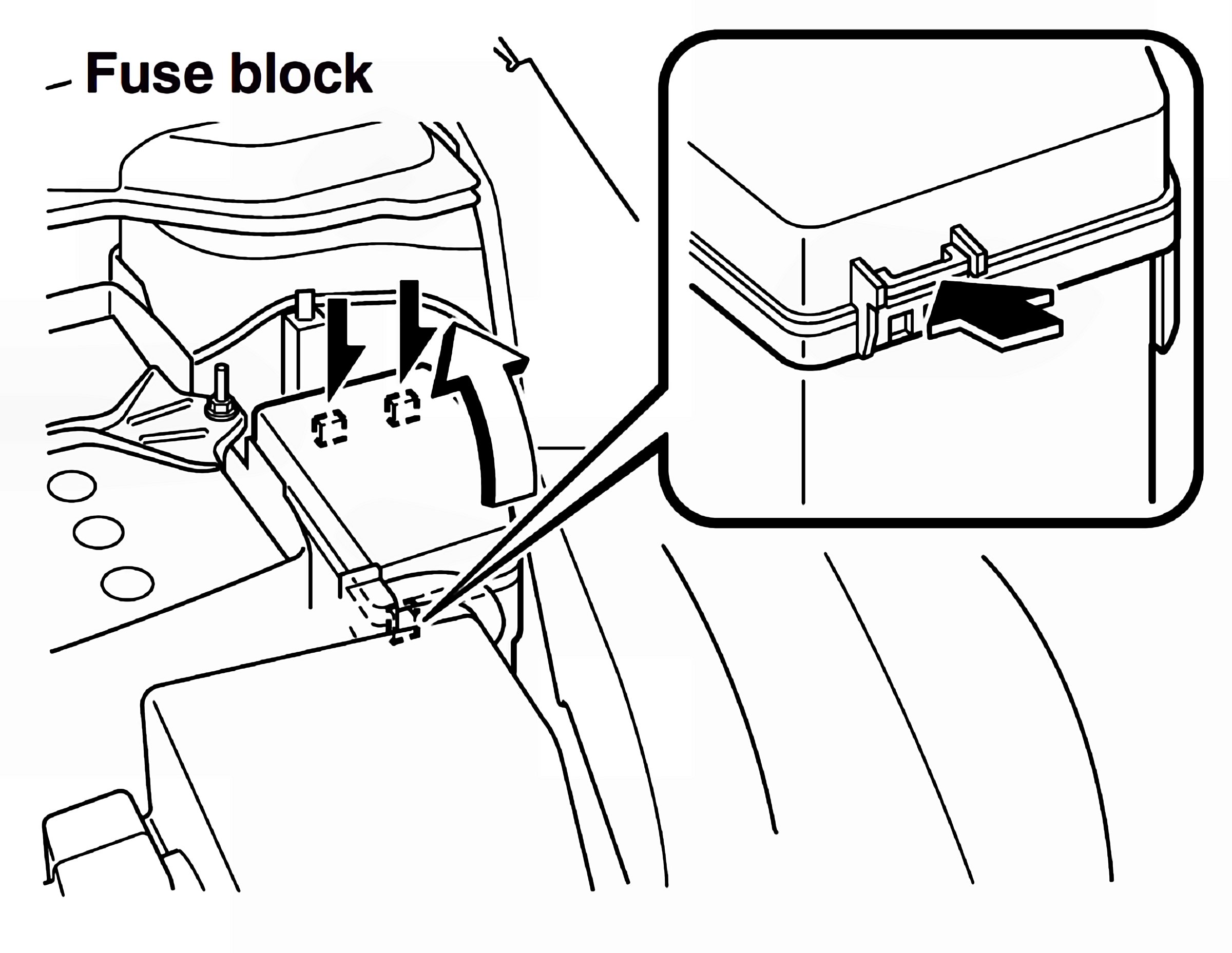

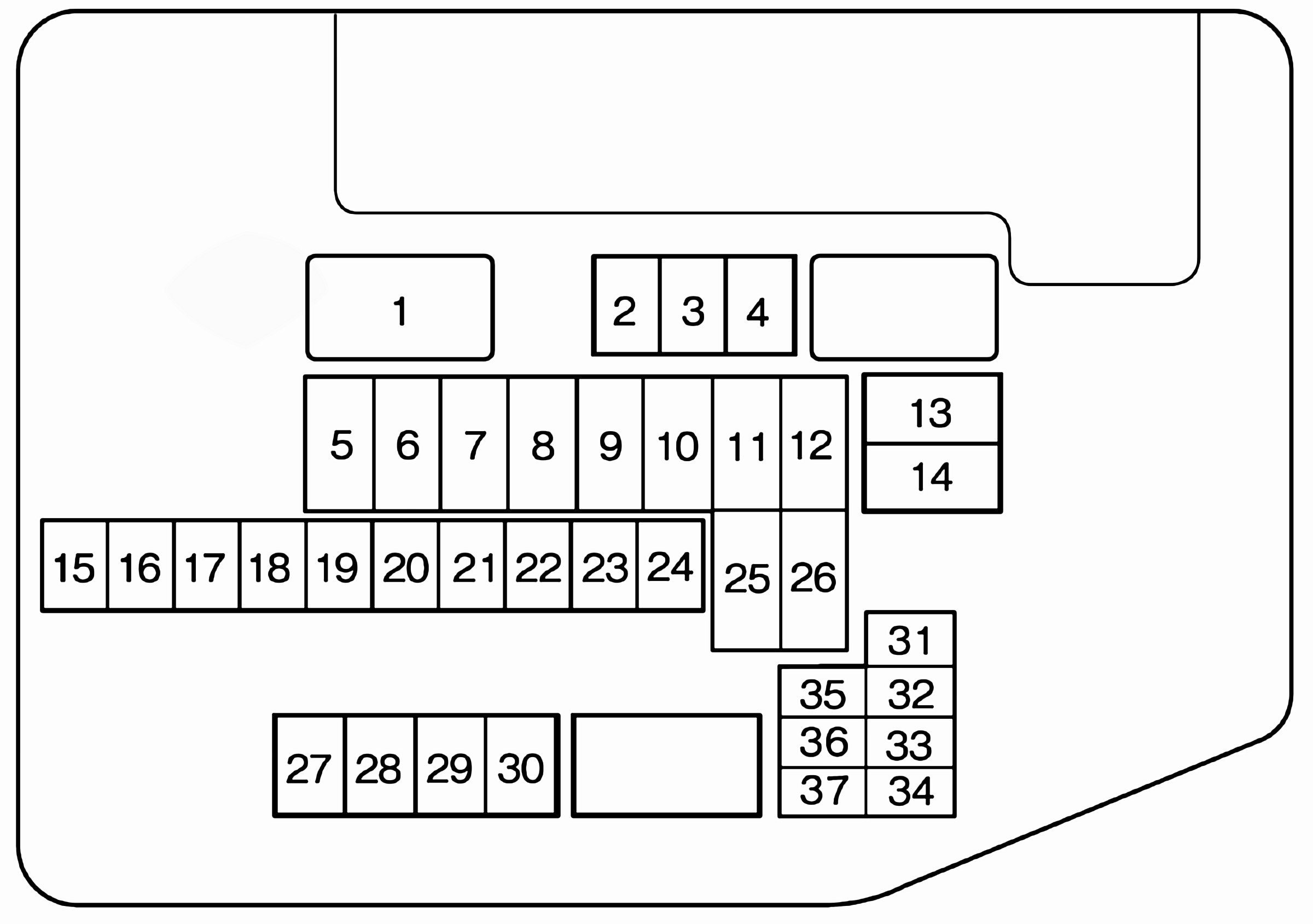

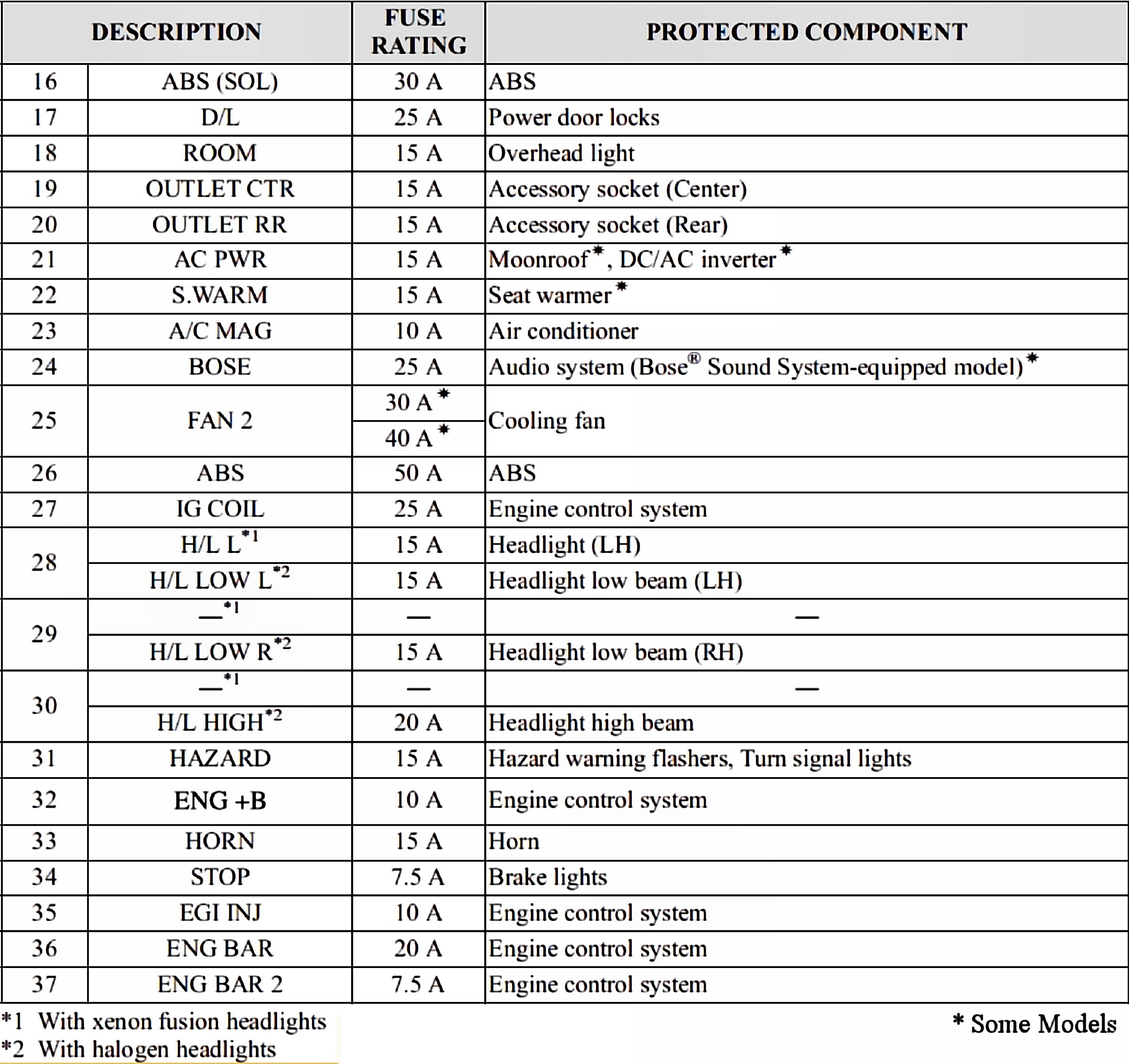

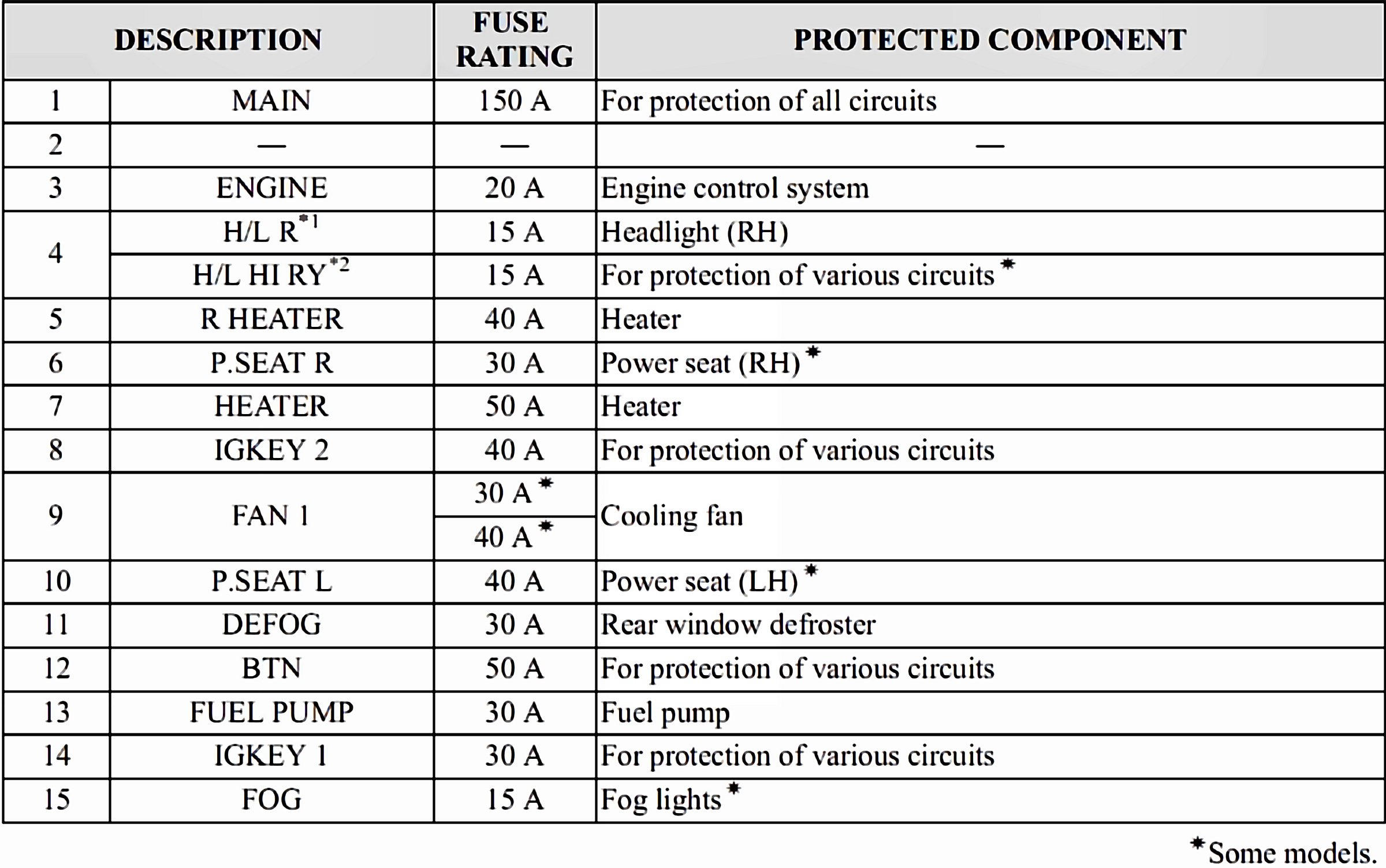

Fuse Block (Engine Compartment)

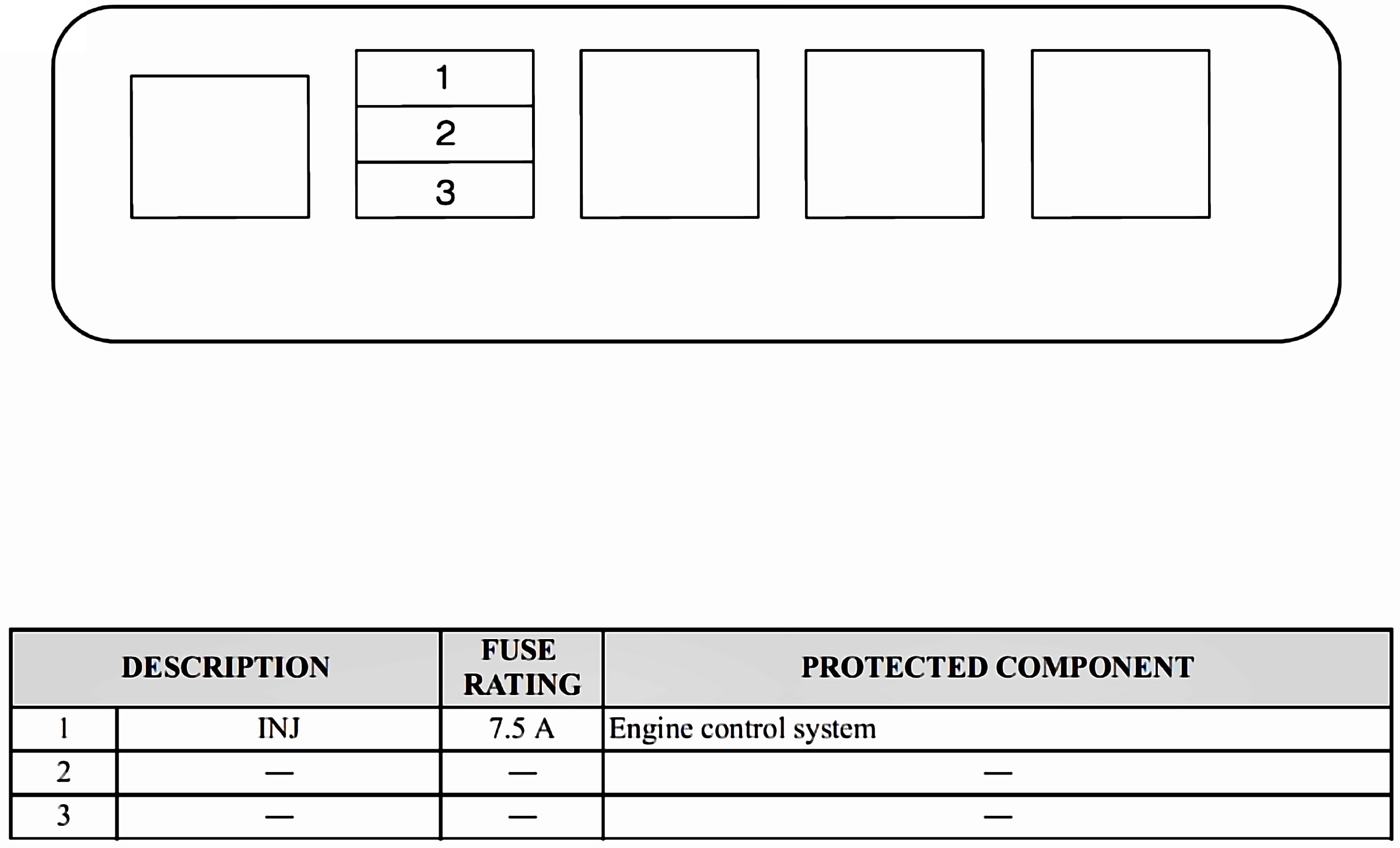

Relay Box (Engine Compartment)

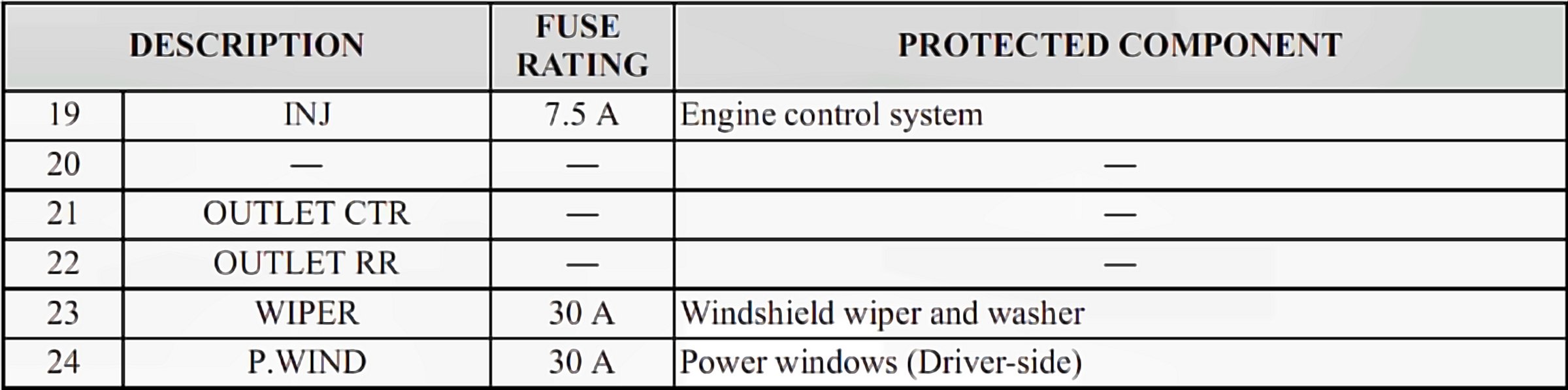

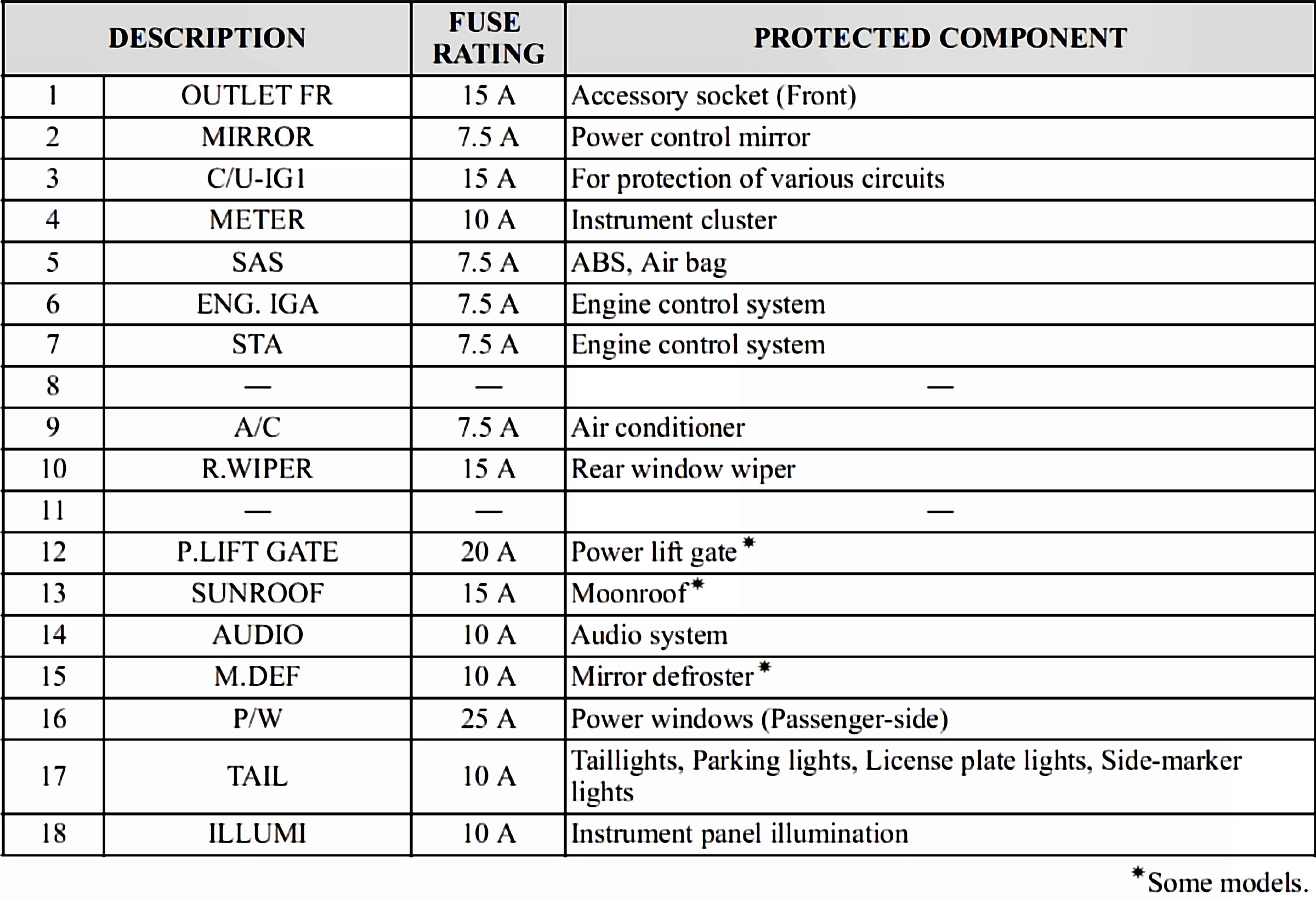

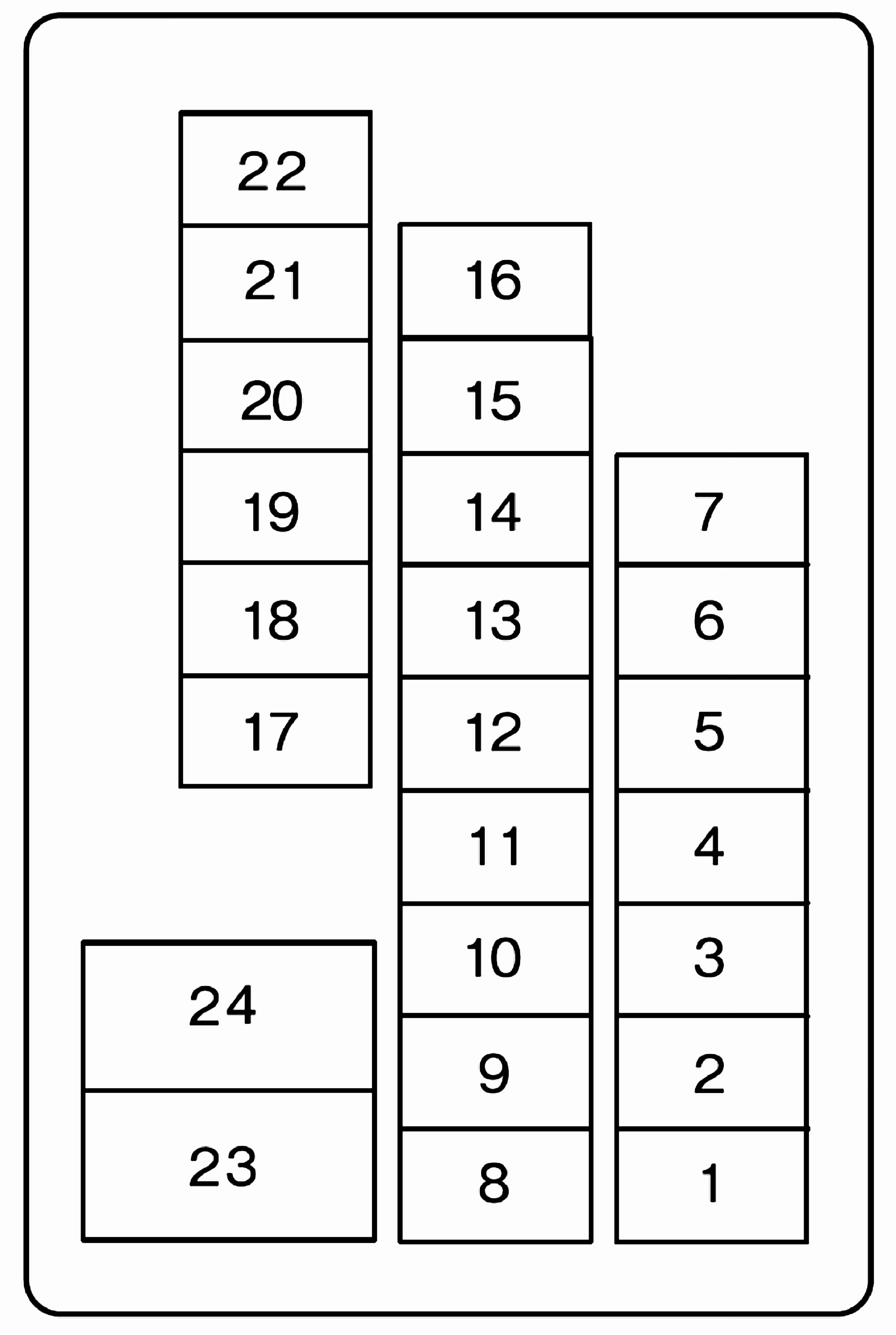

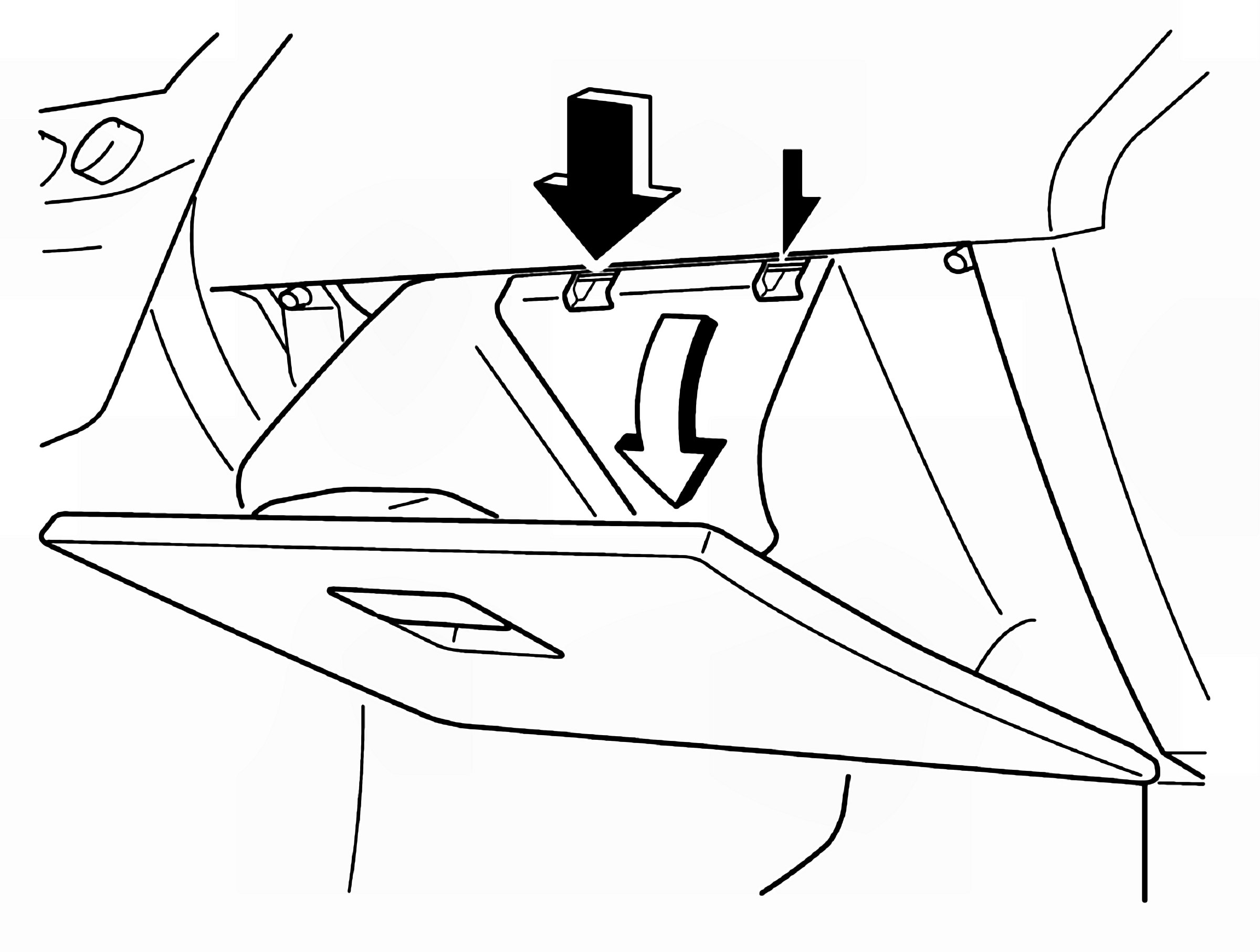

Fuse Block (Glove Box)
