Overhaul

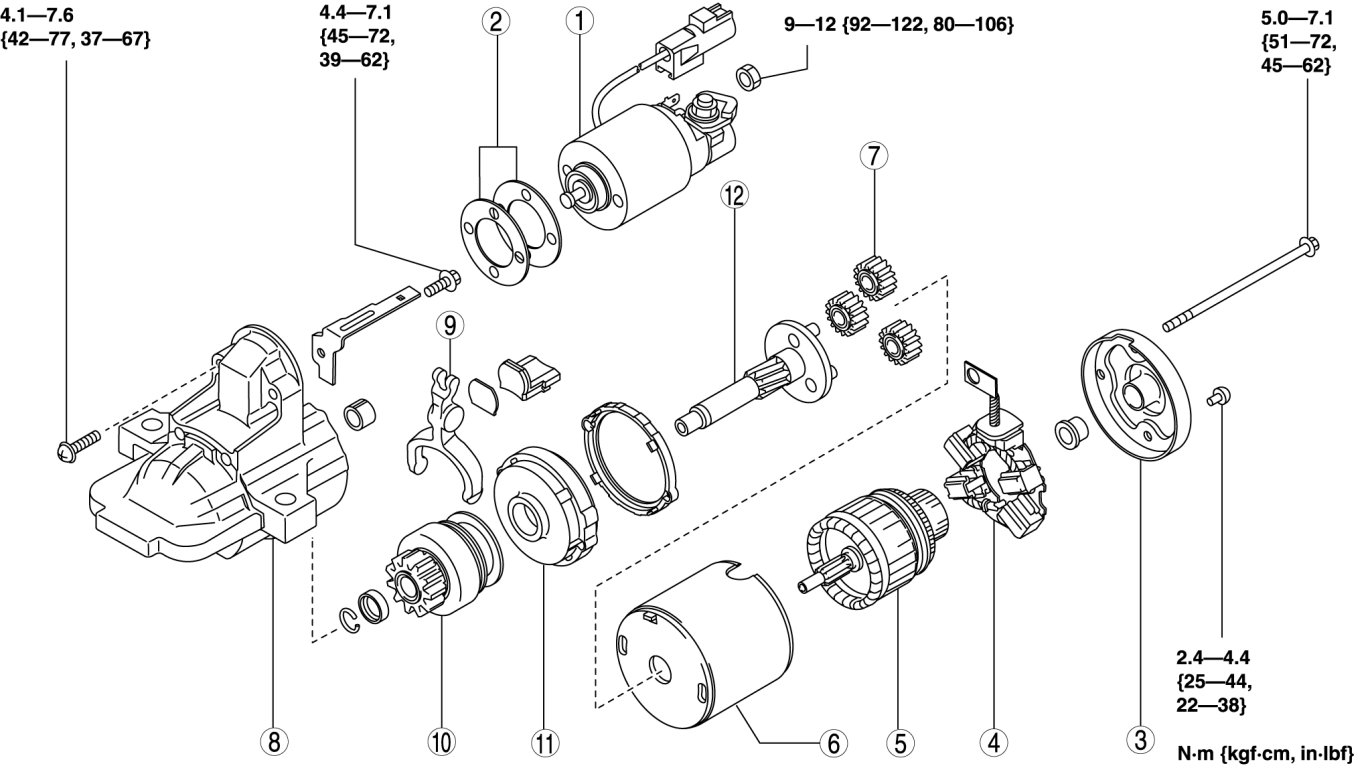

STARTER DISASSEMBLY/ASSEMBLY [MZR 2.3 DISI Turbo]

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
