Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit >> Audio System (Bose(R) Type Audio)

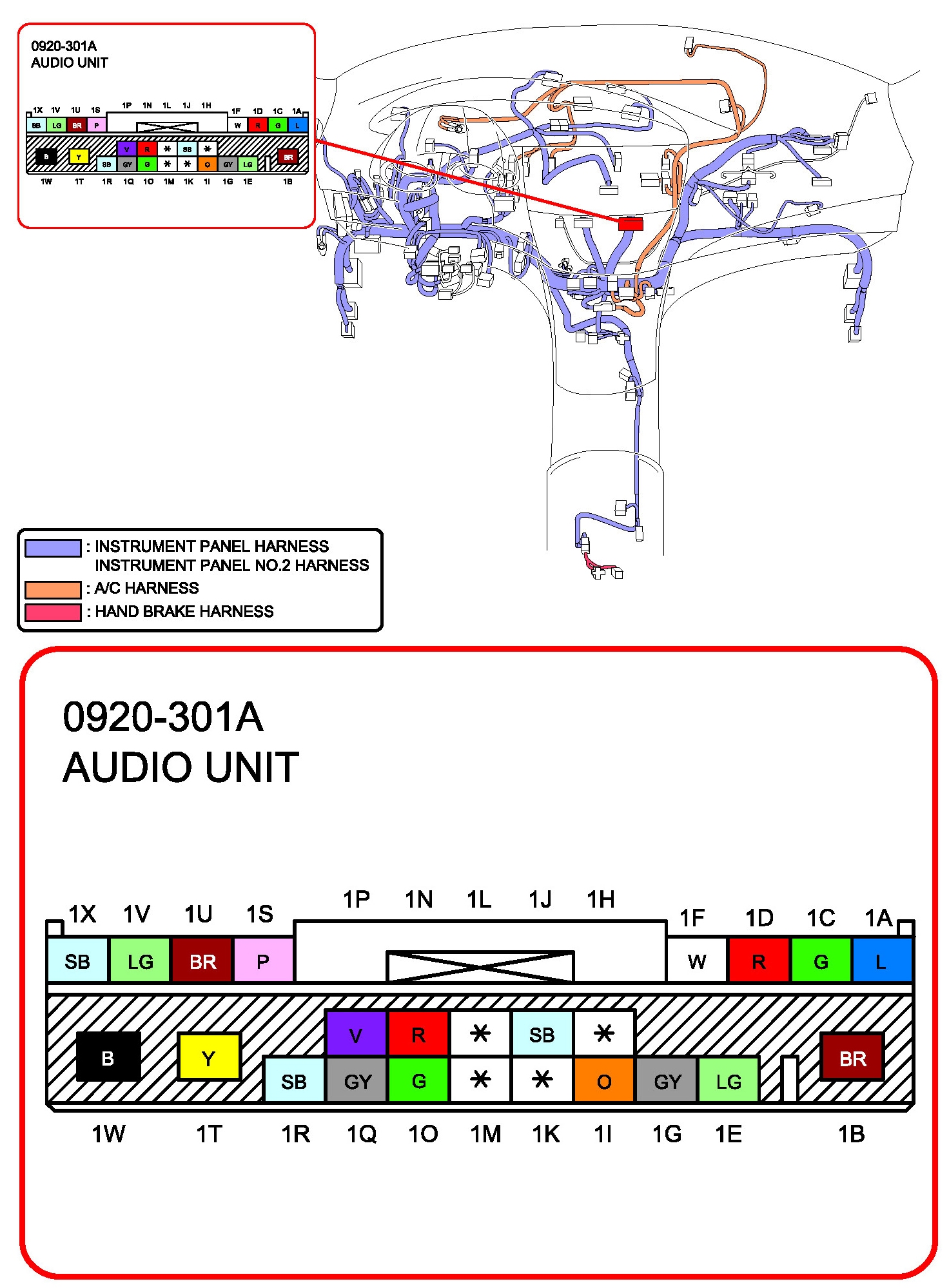

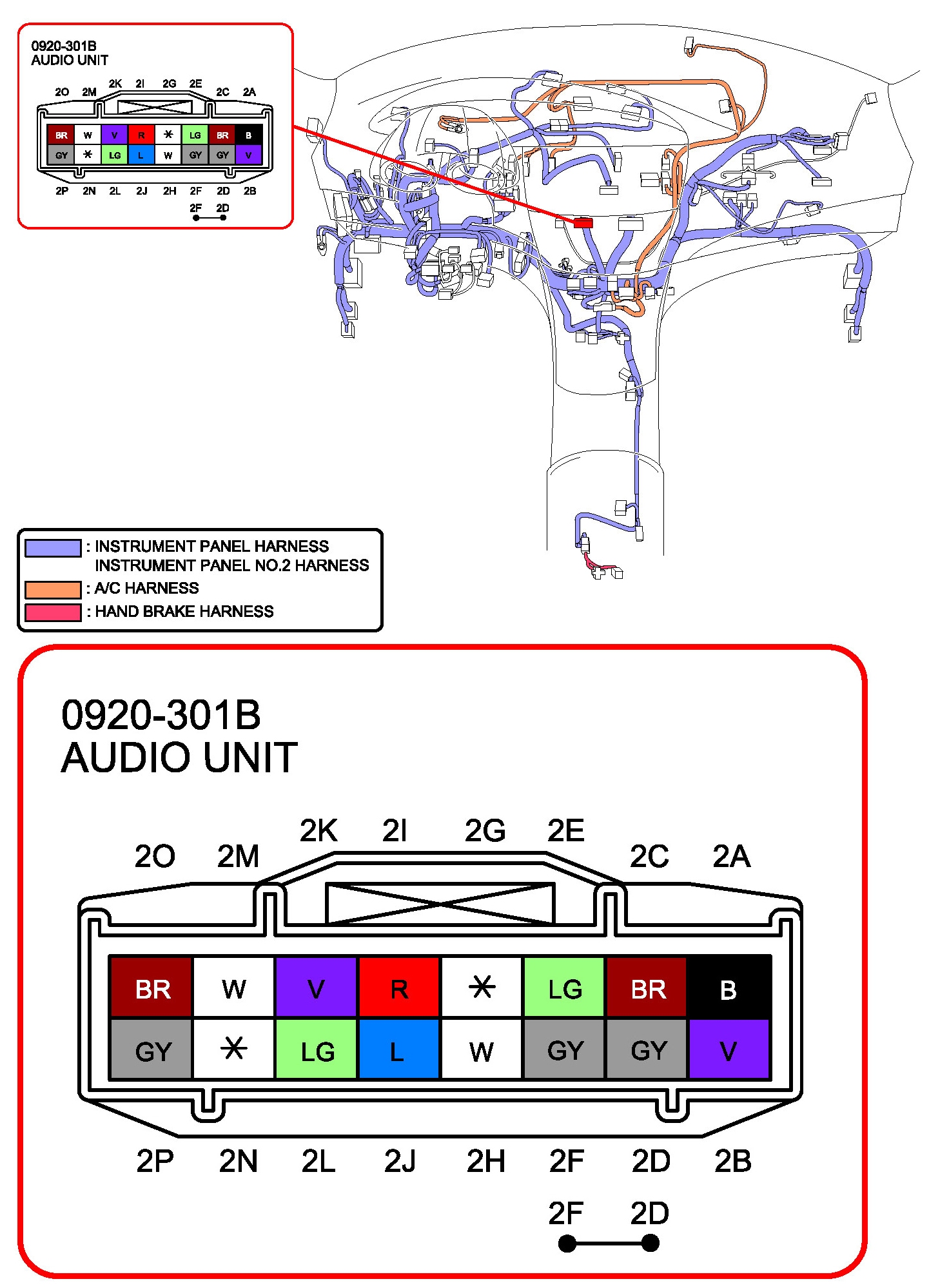

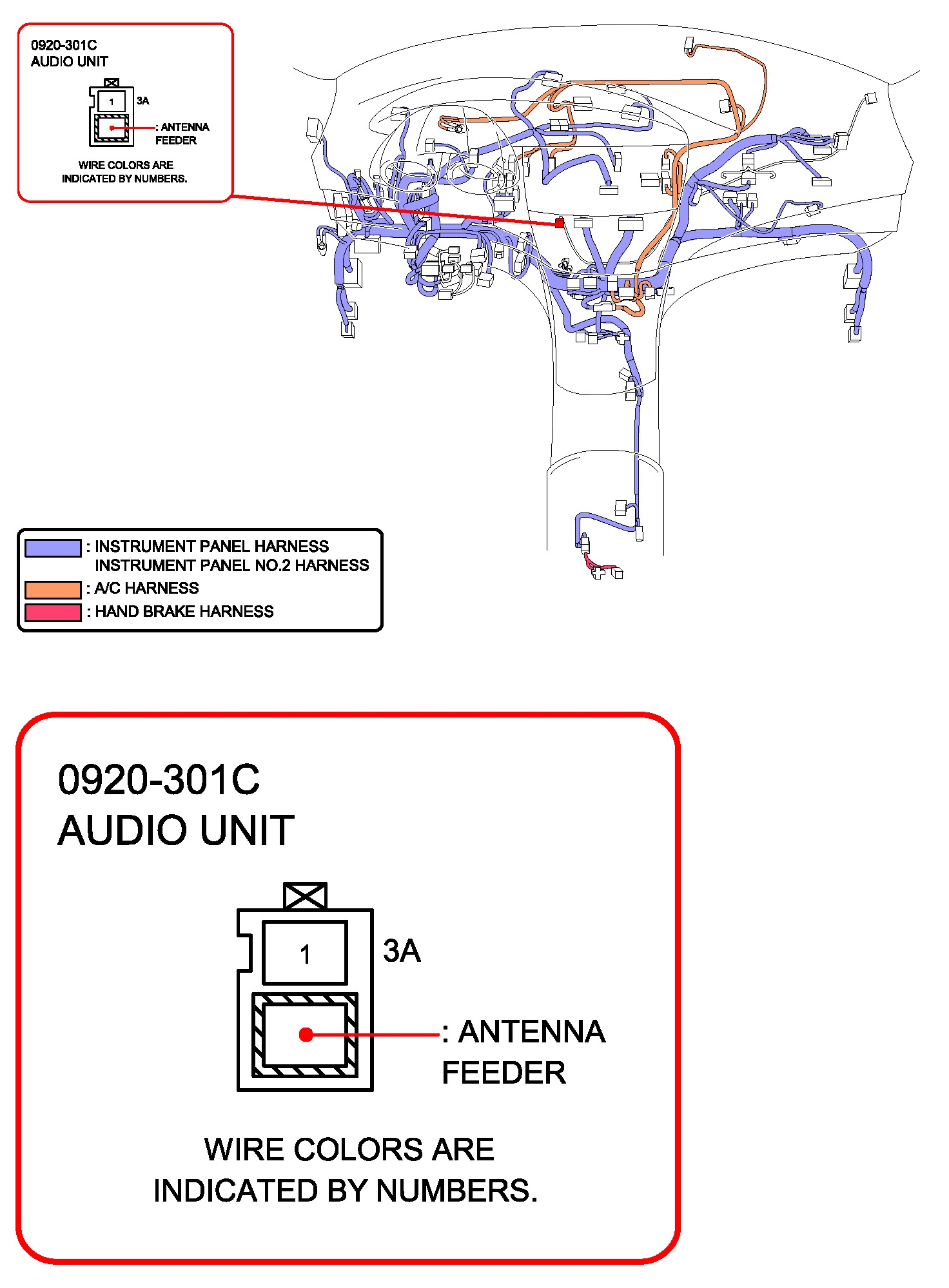

Audio System (Bose(R) Type Audio)
