Home >> Mazda >> 2012 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Description and Operation

Emission Control Systems: Description and Operation

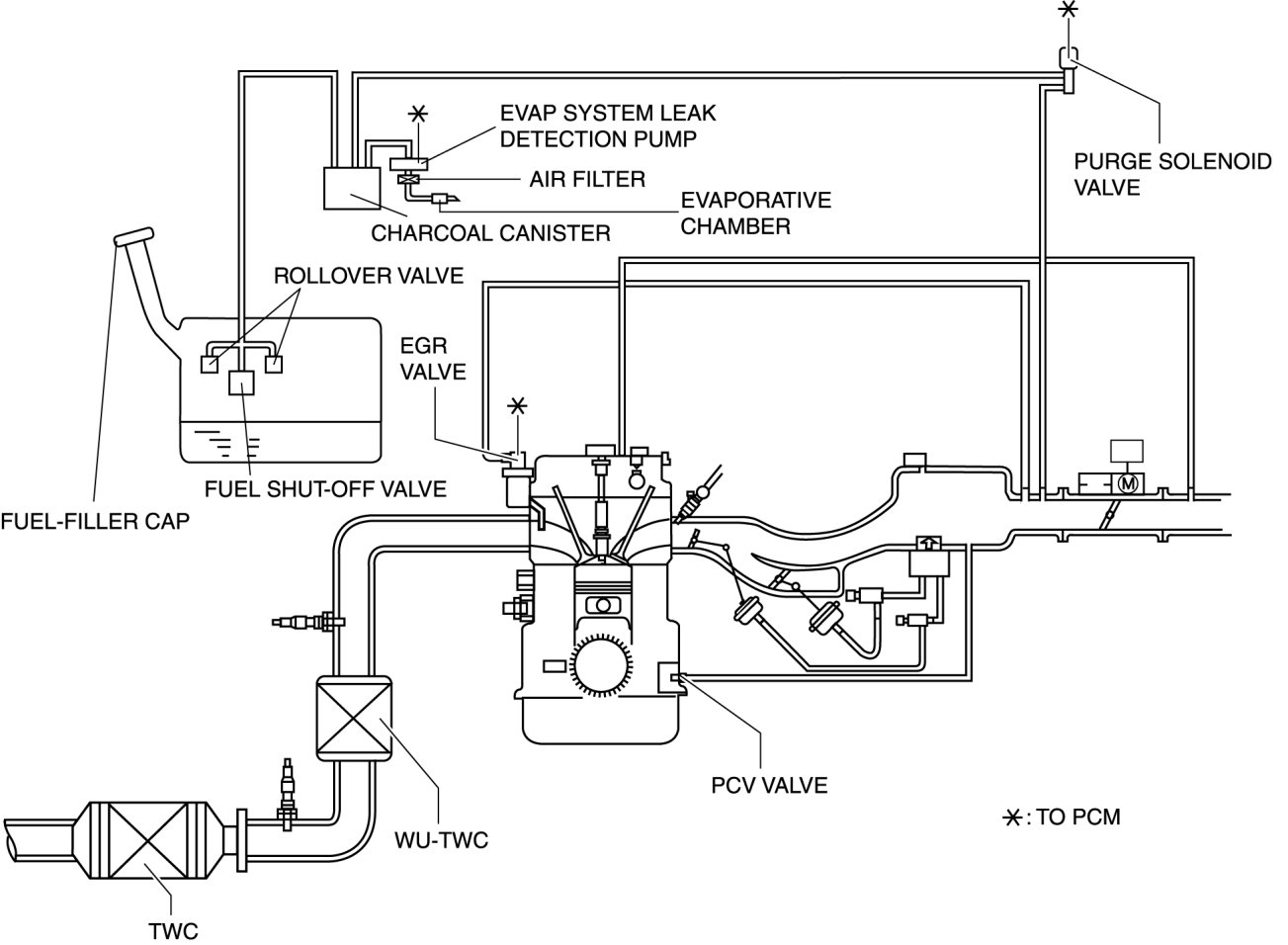

EMISSION SYSTEM DIAGRAM [LF]
