Solar Sensor: Service and Repair

SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Remove the battery cable.

2. Disconnect the negative battery cable. Removal and Replacement

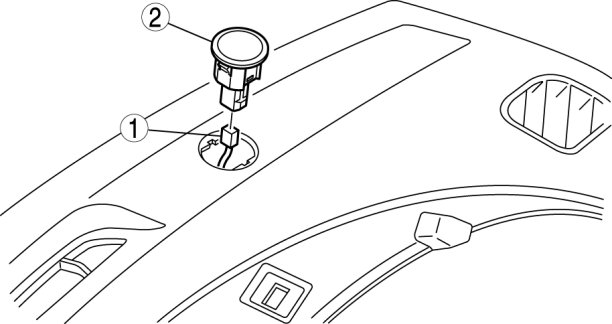

3. Pry the solar radiation sensor from the dashboard using a flathead screwdriver wrapped with protective tape.

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
